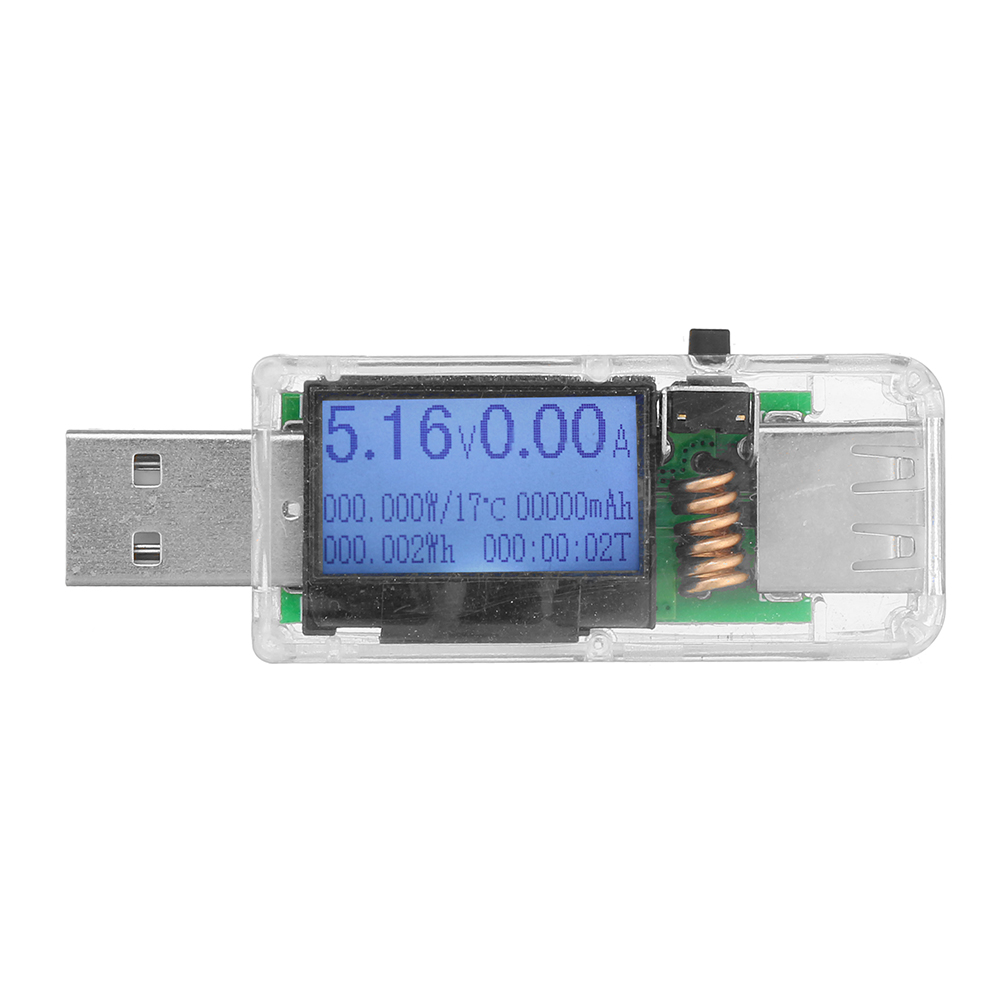

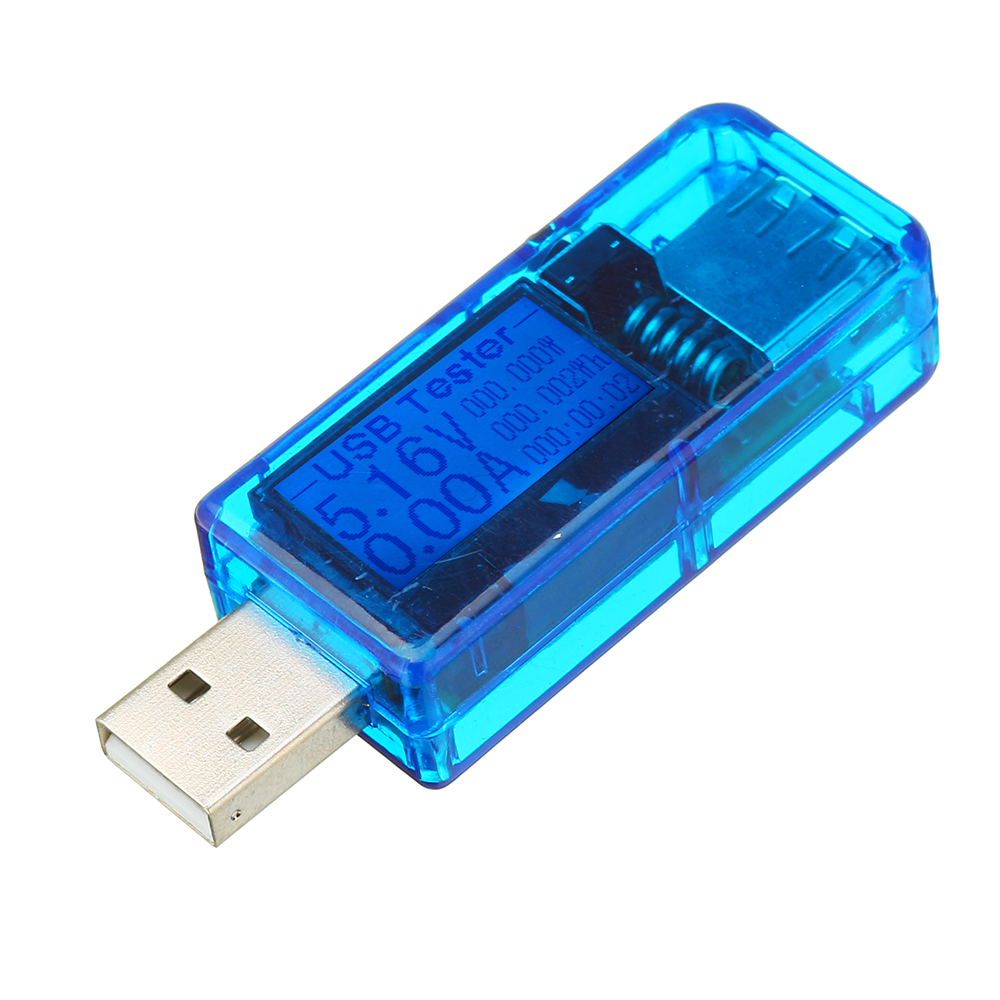

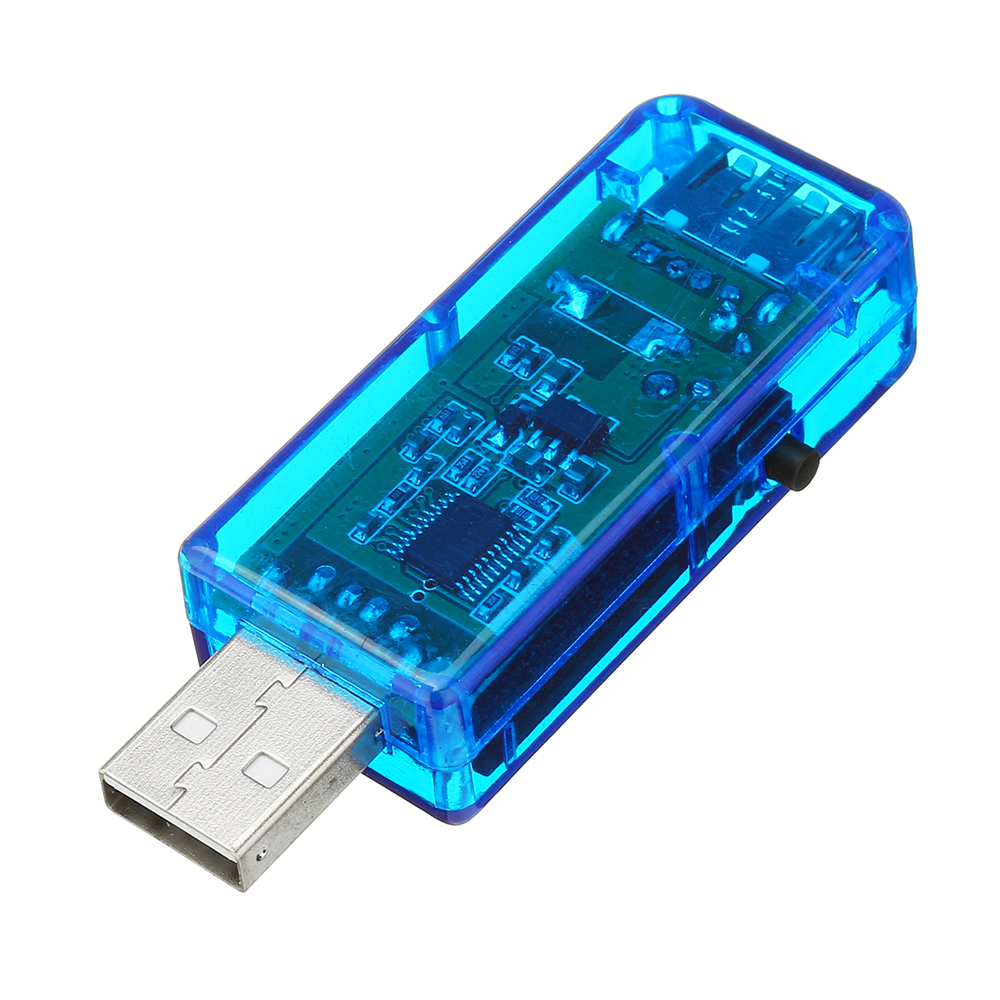

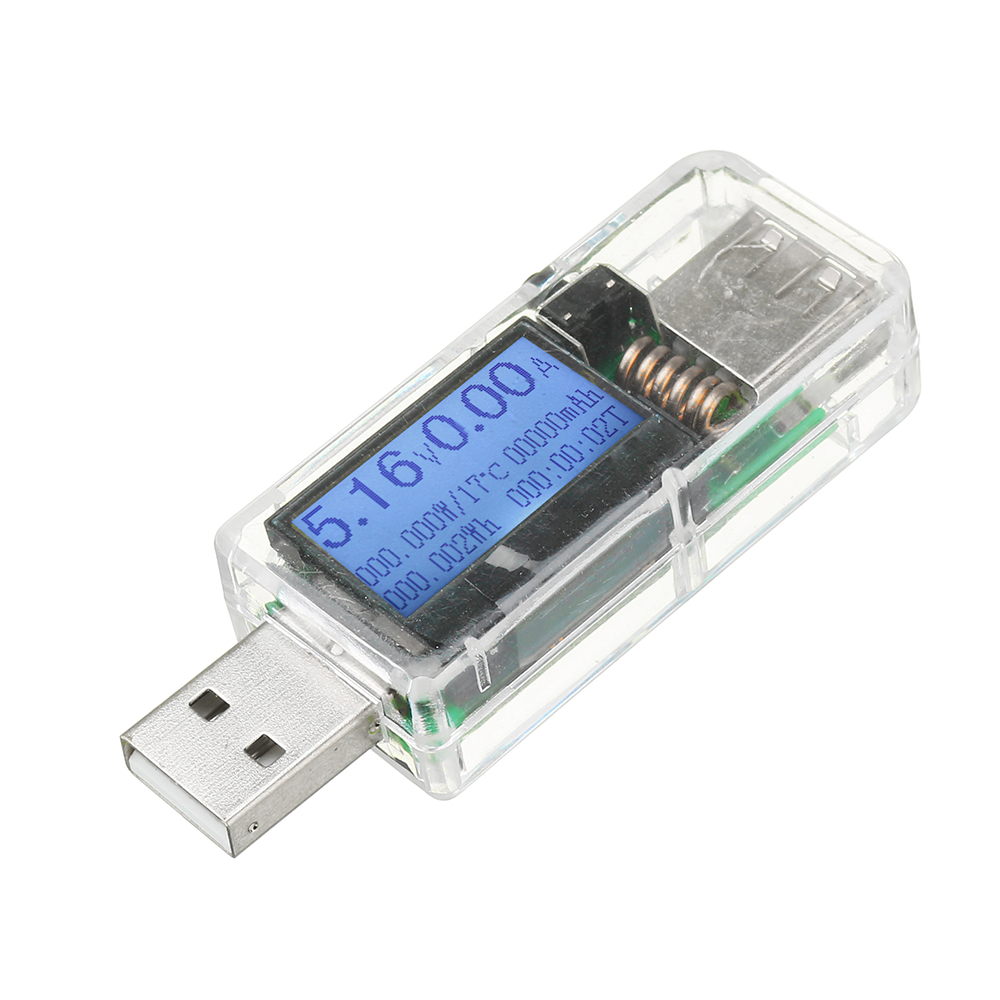

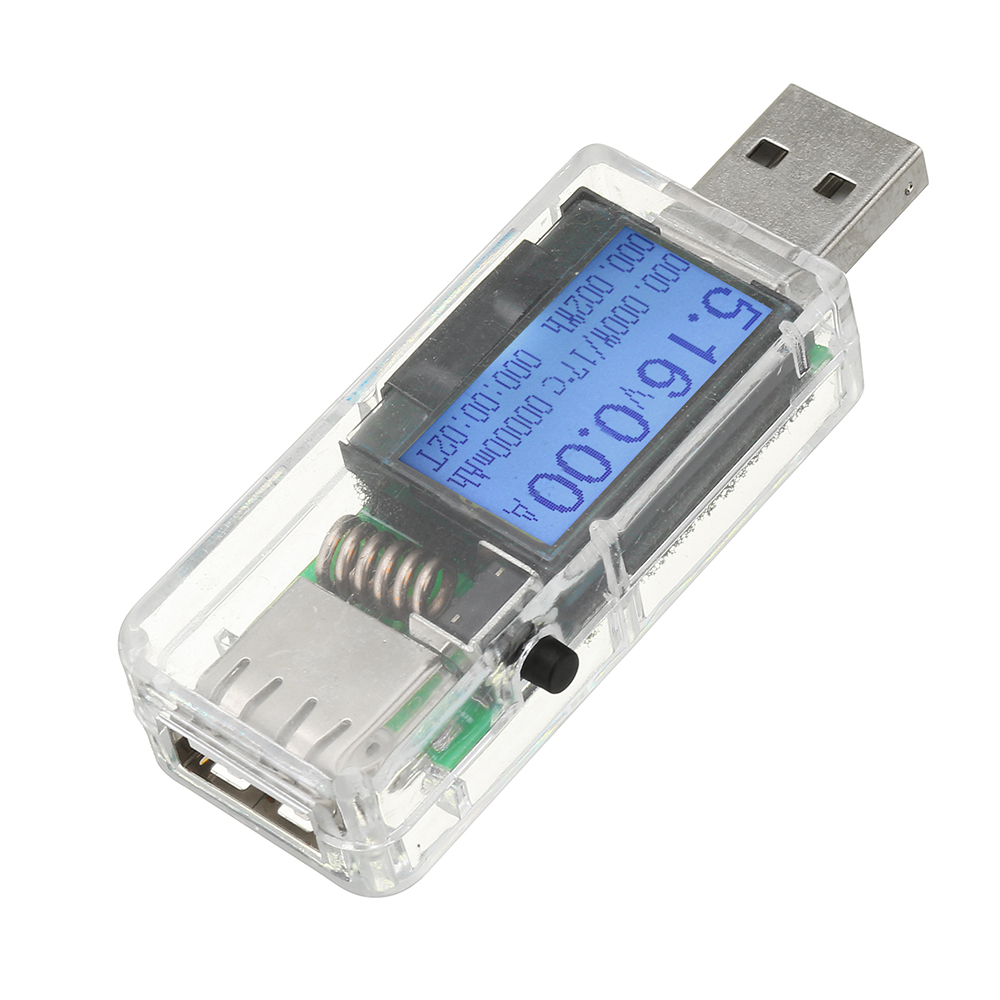

12 in 1 USB Tester DC Digital Voltmeter Amperemeter Voltagecurrent Meter Ammeter Detector Power Bank Charger Indicator

Availability: In stock

Regular Price: SGD22.00

Special Price SGD12.00

You Save: SGD10.00 (45%)

Quick Overview

Technical parameters:

Voltage measuring range:  3.60V ~ 32.5 V       Resolution precision: 0.01 V
Current measuring range: 0.00A ~ 5.00 A        Resolution precision: 0.01 A
Power cumulative range: 0 ~ 999999 WH      Resolution precision: 0.001 Wh
Capacity range: 0 ~ 999999 mAH       Resolution precision: 0.001 Ah
Temperature: 0   ℃ ~ + 80 ℃           Resolution precision: 1 ℃
D+  Voltage: 0.000V ~ 2.999 V     Resolution precision: 0.001 V
D-   Voltage: 0.000V ~ 2.999 V     Resolution precision: 0.001 V
Load impedance: 0 ~ 999 ohm        Resolution precision: 1 ohm
Power metering range: 0 ~ 299.999 W                   Resolution precision: 0.001 W
Timing maximum time: 999 H 59 M 59 S                Resolution precision: 1 S
Time to refresh: > 500 ms/time > 500 ms/times
Measurement rate: 0.5 times/s
Use large equipment of the same metal manganese bronze sampling resistor (1.0 mm diameter metal manganese bronze material < 0.05R)
Product size: 65 x 24 x 14 mm
Since the power flow: < 0.003 A   (<  3mA )
Working temperature:  - 10 ~ + 60 ℃
Working humidity: 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa
Cumulative capacity range: 0-99999 mah precision: 0.001 Ah (New features or D+ D-  Voltage)

Specifications:

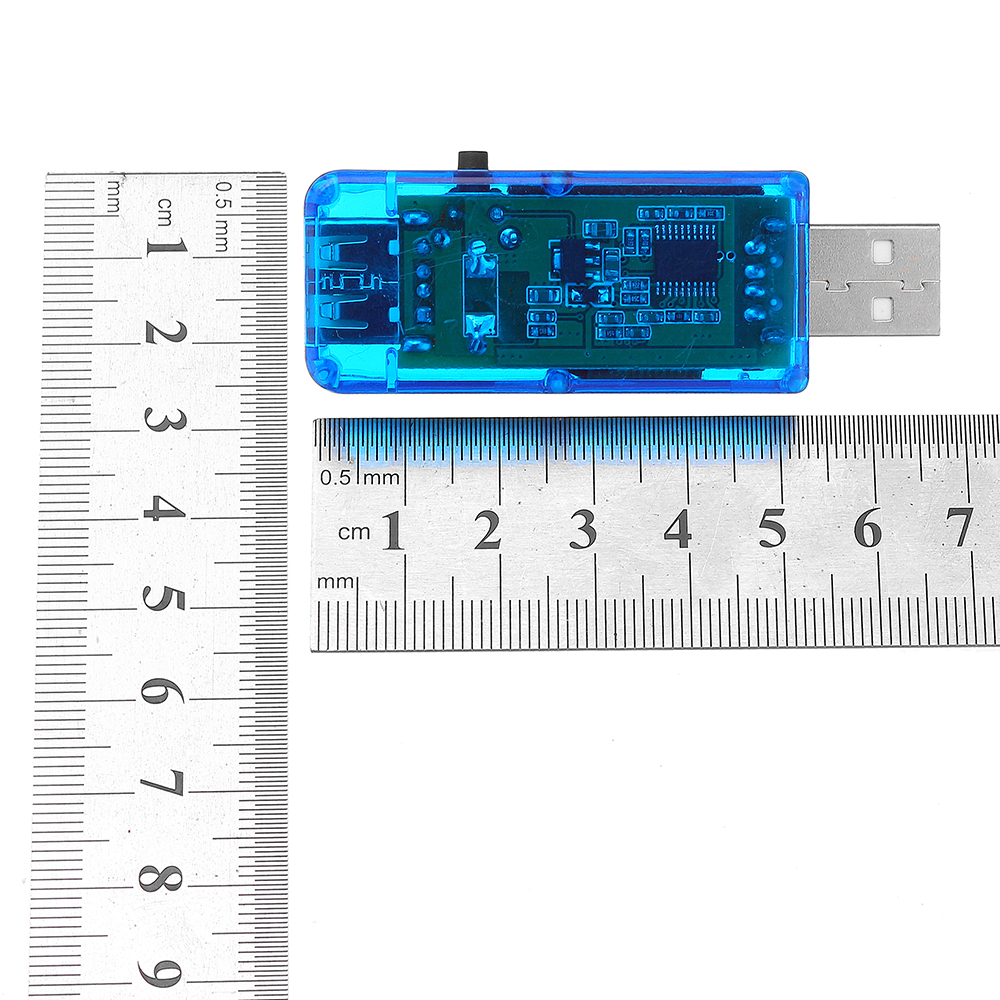

Item size: 65 * 24 * 14 mm
Net weight: 19g
Package weight: 28g
Color: Blue / Transparent (Optional)

Function characteristics:

1) 8192 pixels HD display;
2) D+ D-   Voltage Tester
3) Memory power time data such as power;
4) The single monitoring shows charging voltage, current, power, power WH, mAH, charging time and other information;
5) USB is the copper pin and low resistance in sampling technology, access after almost does not affect the charging speed;
6) Wide voltage from 3.60 V to 32.5 V;
7) Low and lower power since the < 0.003 A ( < 3mA) 3.60V~32.5V / 0.00A~5.10A / 0 ~ 299.999W / 0 ~ 999999 WH / 0 ~ 999999 mAH / 0℃~+80℃ / 0~999 ohm / 999H 59M 59S / D+ D- Voltage 0.000V ~ 2.999 V / Since the power flow: < 0.003 A
8. When the power is > 0.5W, the time will be calculated!

Important Tips:

1) Backlight default time is 10S time, through the key button, switch to the BL interface: 10S time interface, double-click or three-click to increase(+) time or decrease(-) time the backlight time, and the same time  backlight switch "BL: OFF(time) ~BL: ON( time) 1S ~ 59S range" Increase(+) or three-Click(-) after the reduction, then long press key is a continuous increase in the reduction.To meet the individual needs of users.



BL: 10S→ USB tester default backlight time is 10S, 10S automatically turn off screen brightness
BL: ON→USB tester backlight is on, always on
BL: OFF→USB tester backlight is off, there is no backlight

3) When the ambient temperature changes or the outside heat conduction to tester causes the current to not return to zero and the display shows 0.01A or 0.02A or otherwise, Please Hold on the key button then insert to USB Charger It can make the current temperature of the ambient current zero calibration, After the zero can more accurate measurements. And when in Zero calibration, the output cannot have any load current consumption, so USB tester display 0.00A

Packing includes:

1 x Digital USB Voltmeter Tester





















OR
