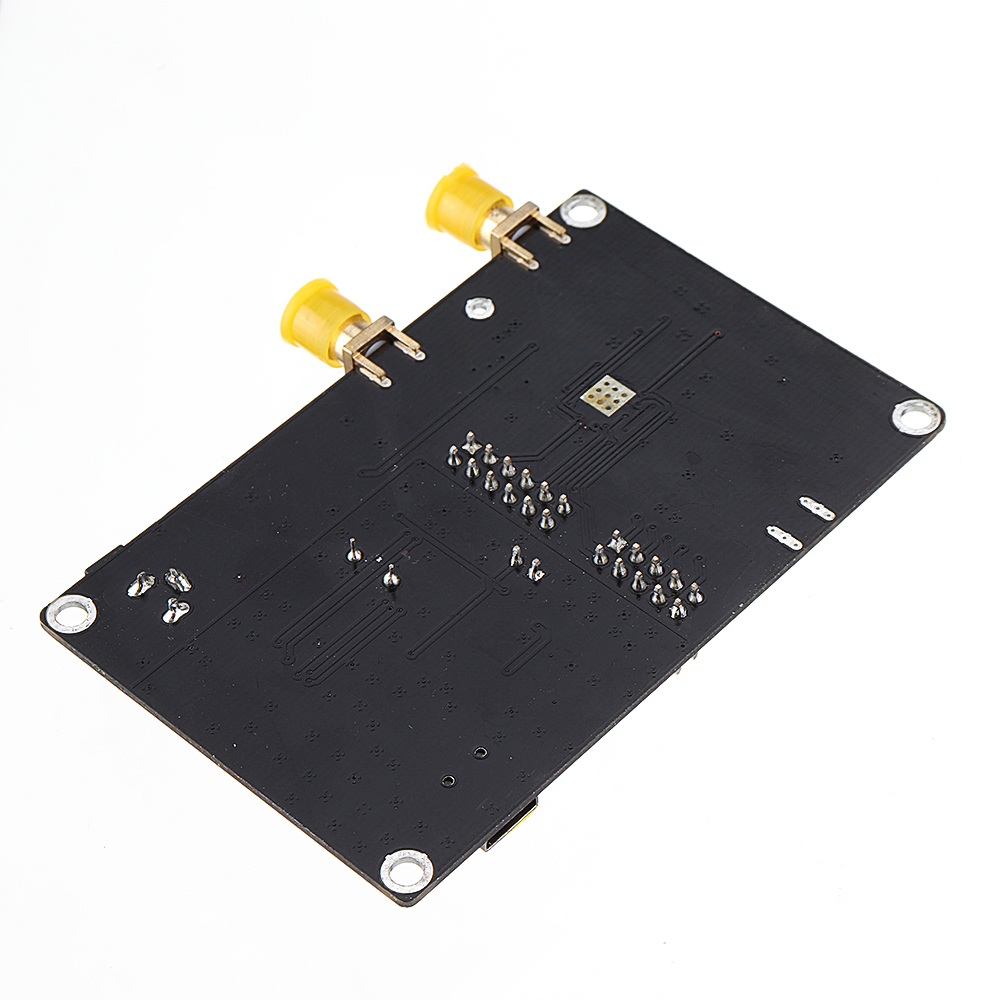

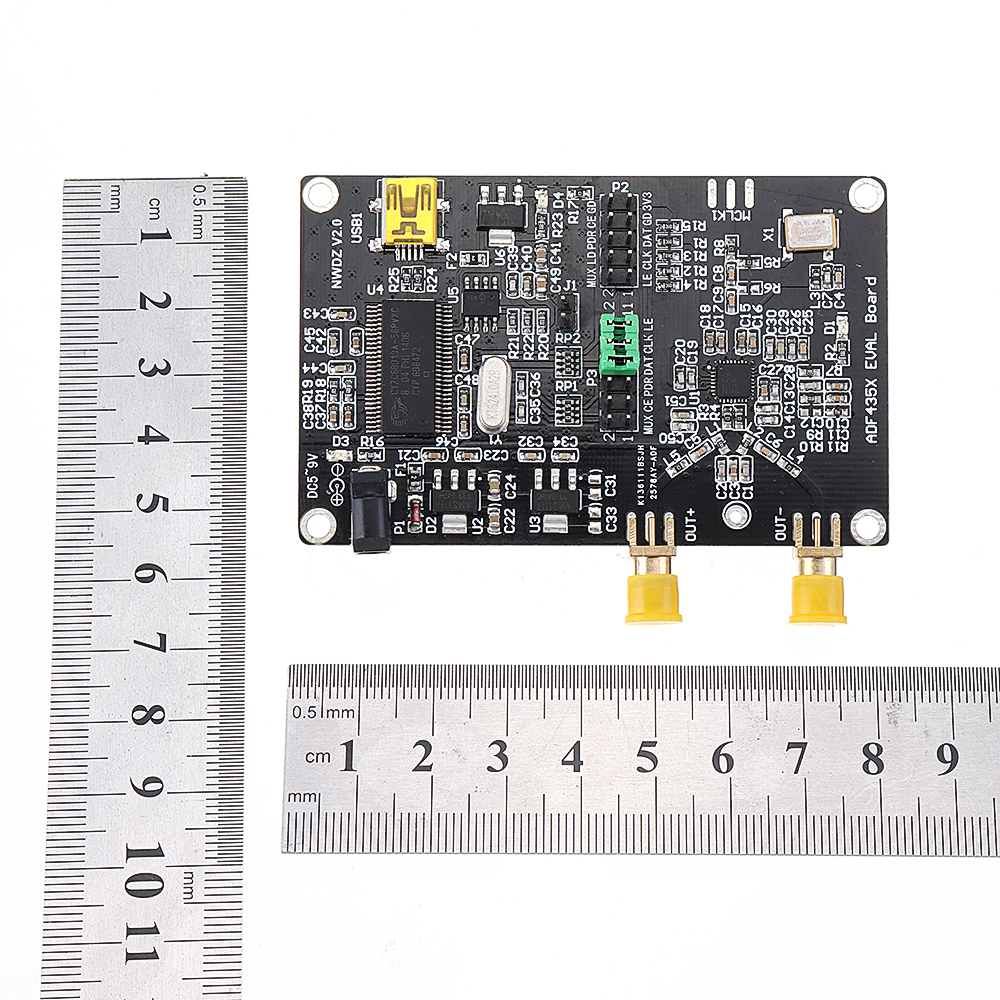

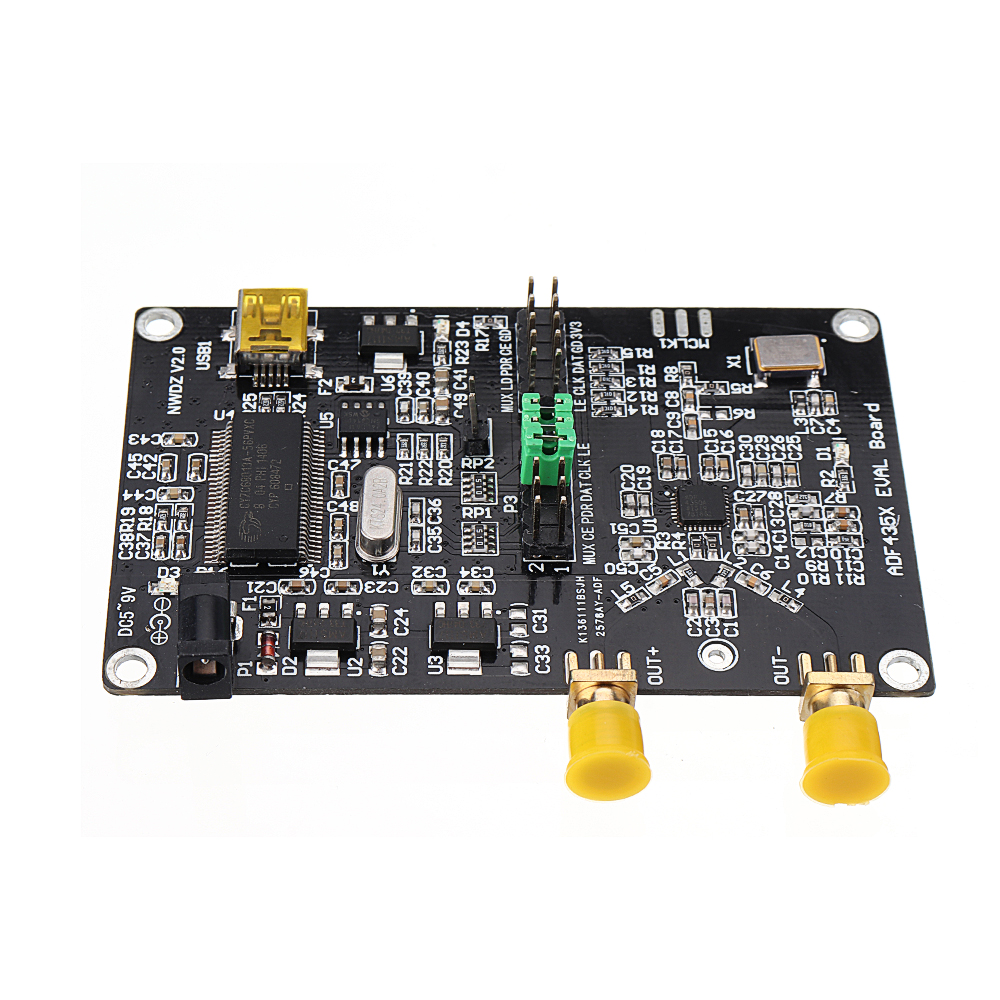

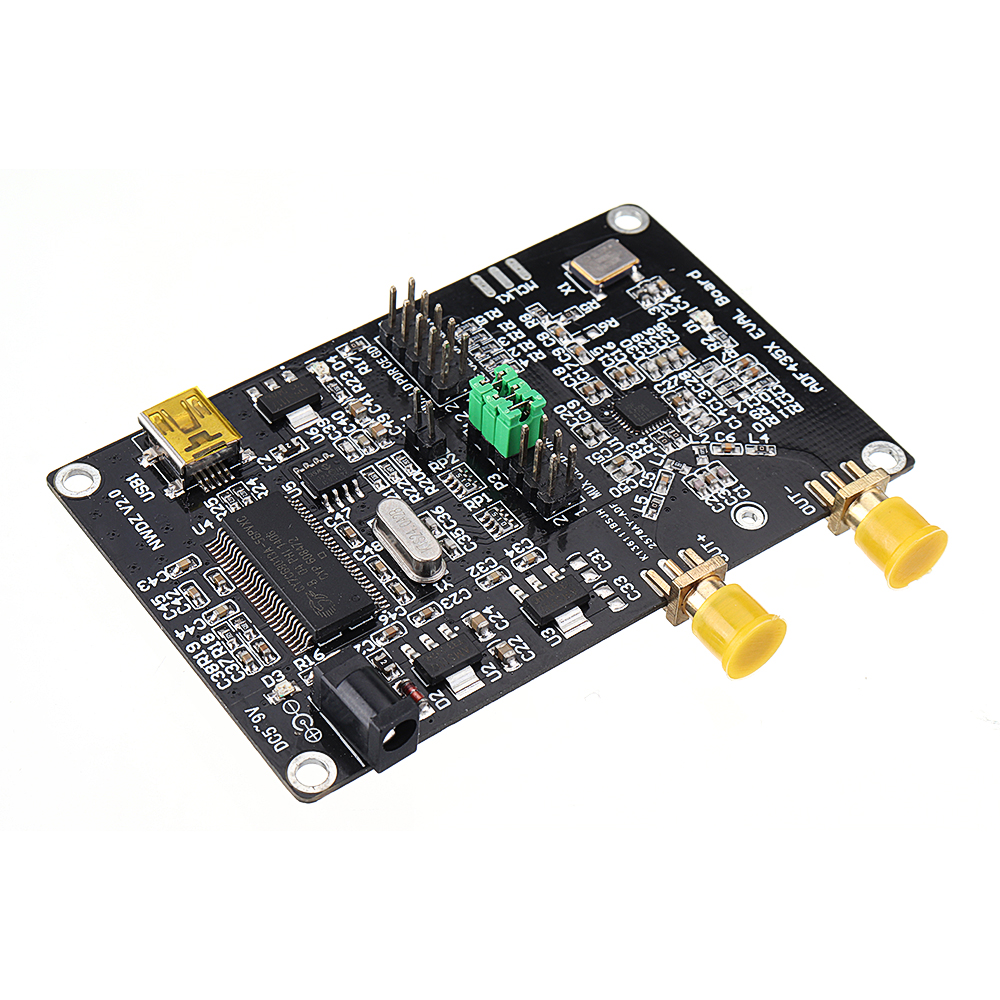

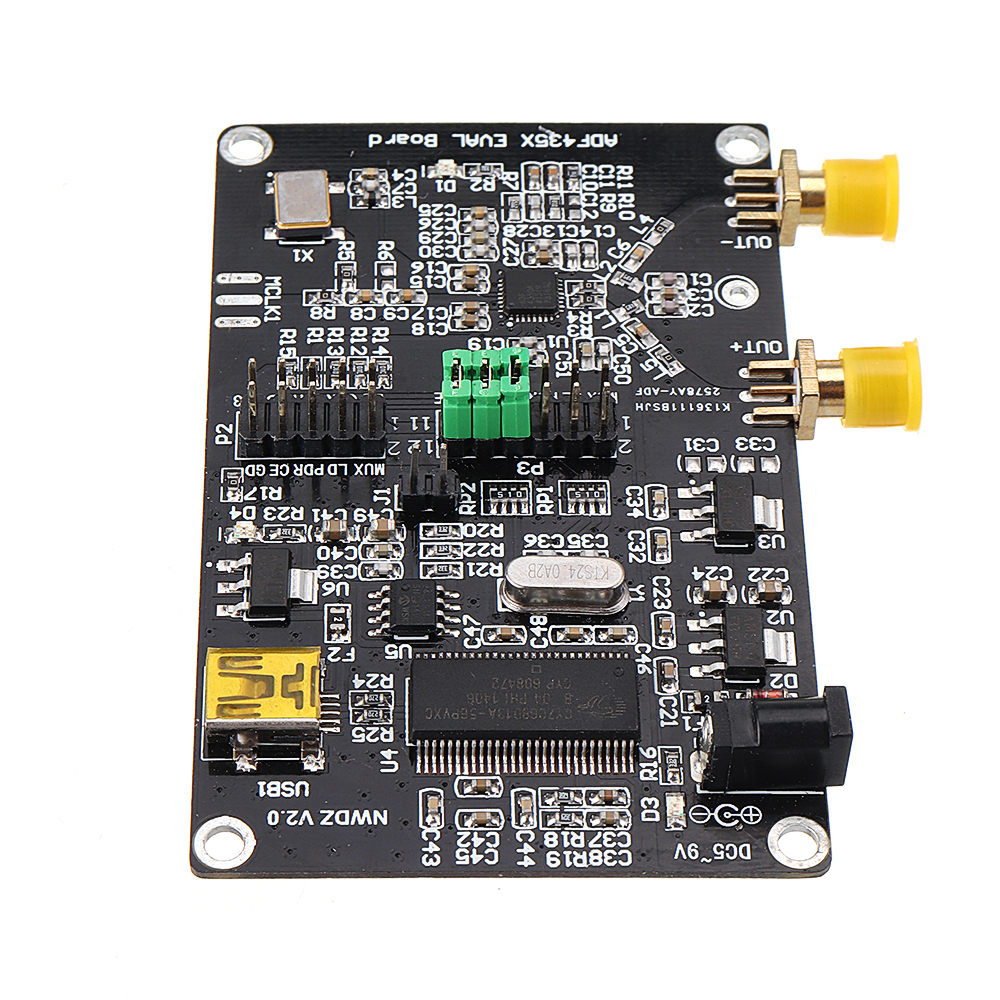

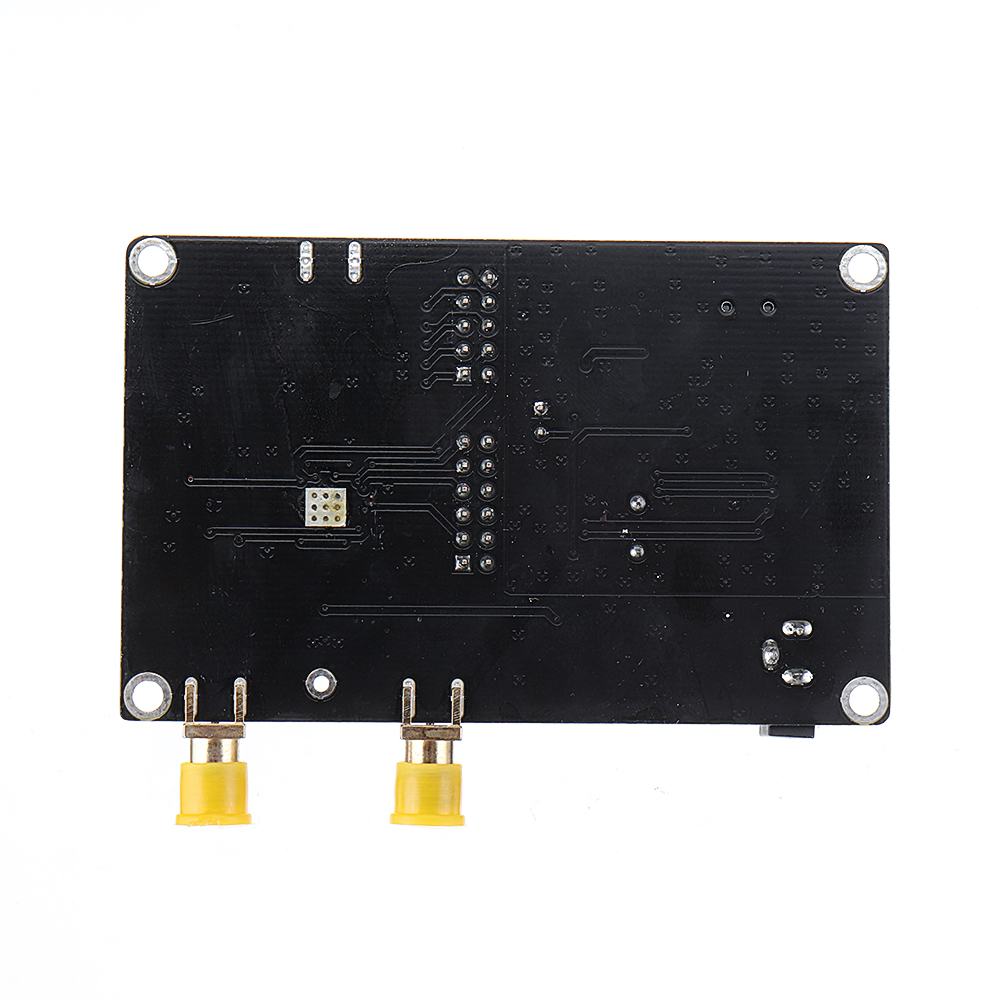

ADF4350/ADF4351 Development Board 35M-4.4G Signal Source PC Software Control Point Frequency Hopping Sweep

Availability: In stock

Regular Price: SGD87.00

Special Price SGD48.00

You Save: SGD39.00 (45%)

Quick Overview

Feature:

Driver-free, support XP WIN7, WIN8, WIN10, 32 or 64 bit system.

1. Output frequency range: ADF4351: 35M-4.4G/ADF4350: 138M-4.4G

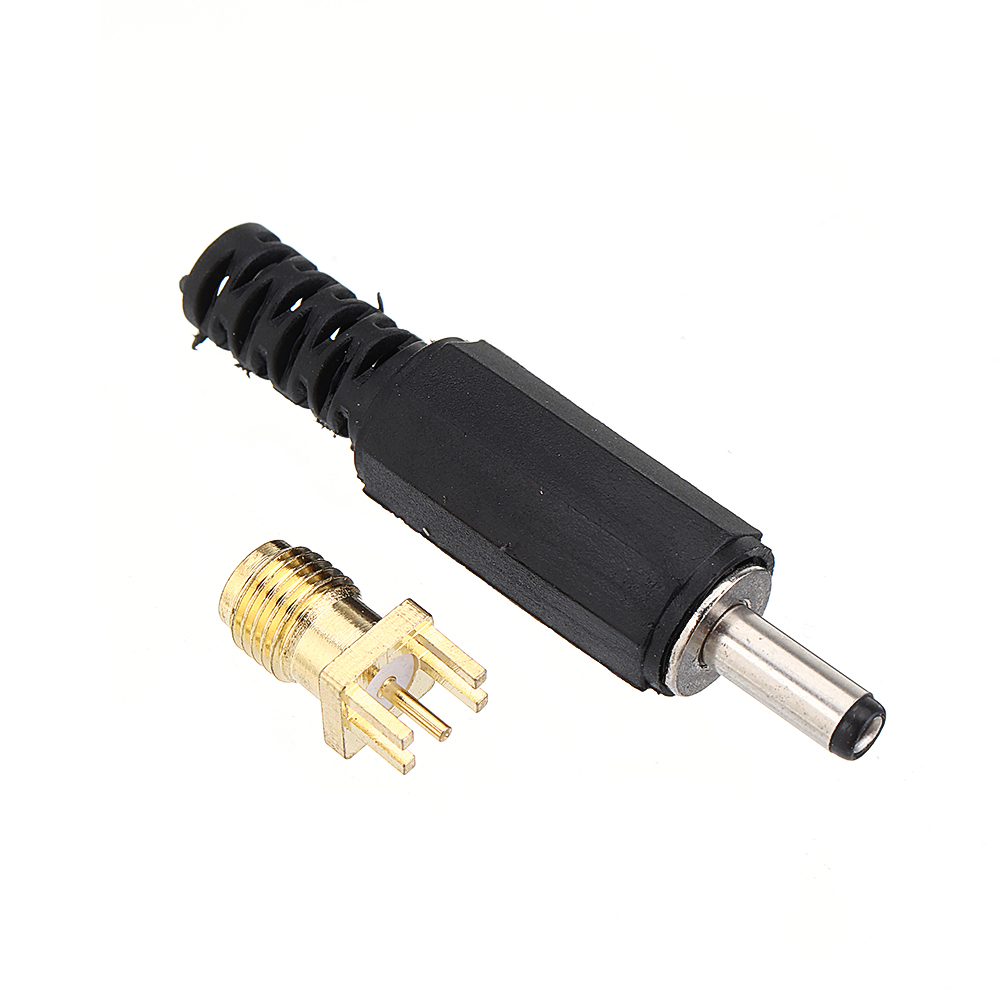

2. Power supply mode: DC002 interface DC4-9V typical 5V power supply
3. Refer to the ADI official evaluation board line and layout
4. Output signal: 2.2-4.4G fundamental wave (sine wave), 35M-2.2G fundamental frequency division (square wave)

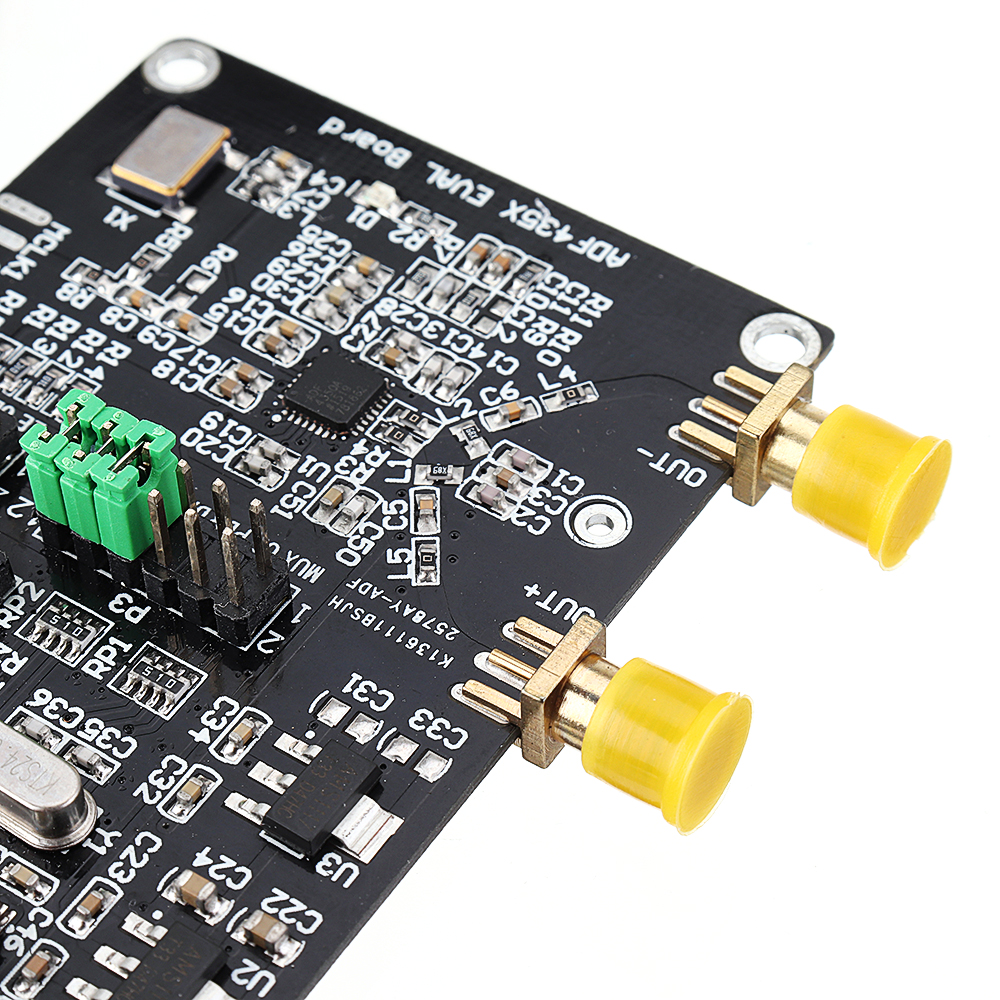

5. Output signal interface: SMA female
6. Default +-50ppm 25M imported active crystal oscillator. Provides PDF circuit diagram and STM32 test program.
7. Control mode: Three-wire SPI. Lead control pin and lock status pin. All functions can be realized, including point frequency, frequency sweep and frequency hopping, stepping can be 1K, low frequency stepping can be up to 0.1K, according to crystal To decide.
8. External MCU control interface for easy control

Package includes:

1 x Board





















OR

Additional Information

SKU GI/BG/1502161
Weight 0.0160
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
