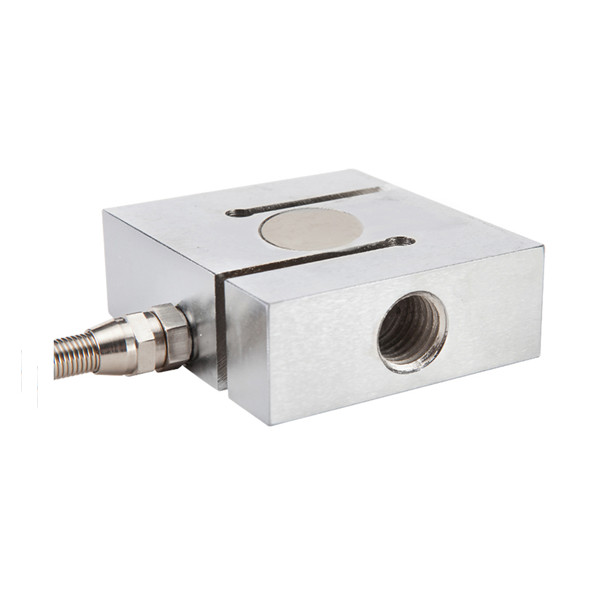

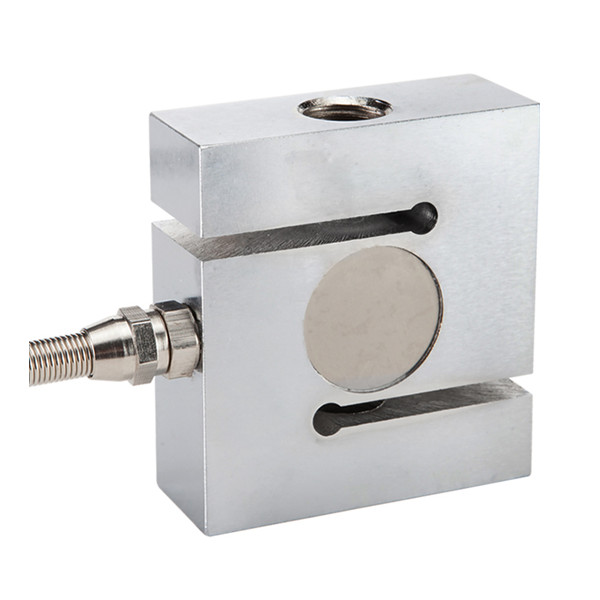

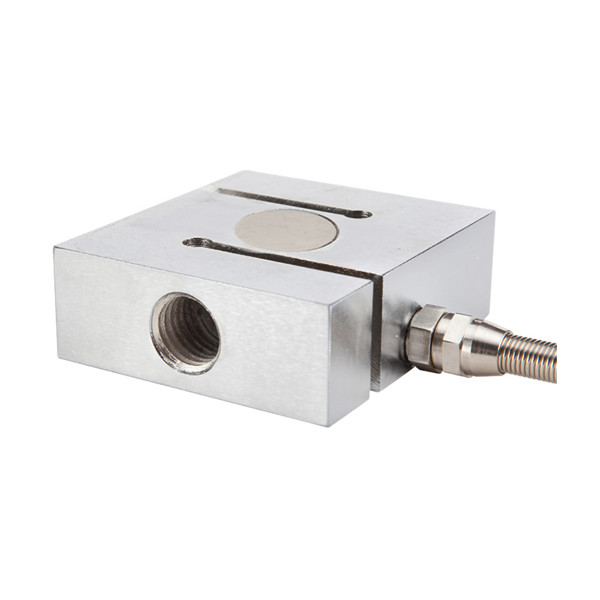

100kg-3T Strain Gauge Pressure Sensor S Load Cell Electronic Scale Sensor Weighing Sensor

Availability: In stock

Regular Price: SGD117.00

Special Price SGD65.00

You Save: SGD52.00 (44%)

Quick Overview

Feature:

Range: 100kg, 200kg, 300kg, 500kg, 1T, 2T, 3T (optional)

Overall accuracy:  0.03% F · S
Sensitivity: 2 ± 0.1 mV / V
Creep: ± 0.05% F · S/30min
Nonlinear: ± 0.03% F · S
Hysteresis error: ± 0.03% F · S
Repeatability error: ± 0.02% F · S
Zero temperature coefficient: ± 0.03% F · S/10
Output temperature coefficient: ± 0.03% F · S/10
Input impedance: 700 ± 15Ω
Output Impedance: 650 ± 15Ω
Insulation resistance: ≥ 5000 MΩ
For the bridge voltage: Recommended 10 VDC (standard signal 12V 24V)
Operating temperature range:- 20 ~ +70
Safe overload: 150% F · S
Sealing Rating: IP67
Material: Alloy steel (40CrNiMo)

Wiring Instructions:

Power Positive: Red Power Negative: green
Output Positive: Yellow Output Negative: white

Package includes:

1 x Weighing Sensor






OR

Additional Information

SKU GI/BG/1523978
Weight 0.1000
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
