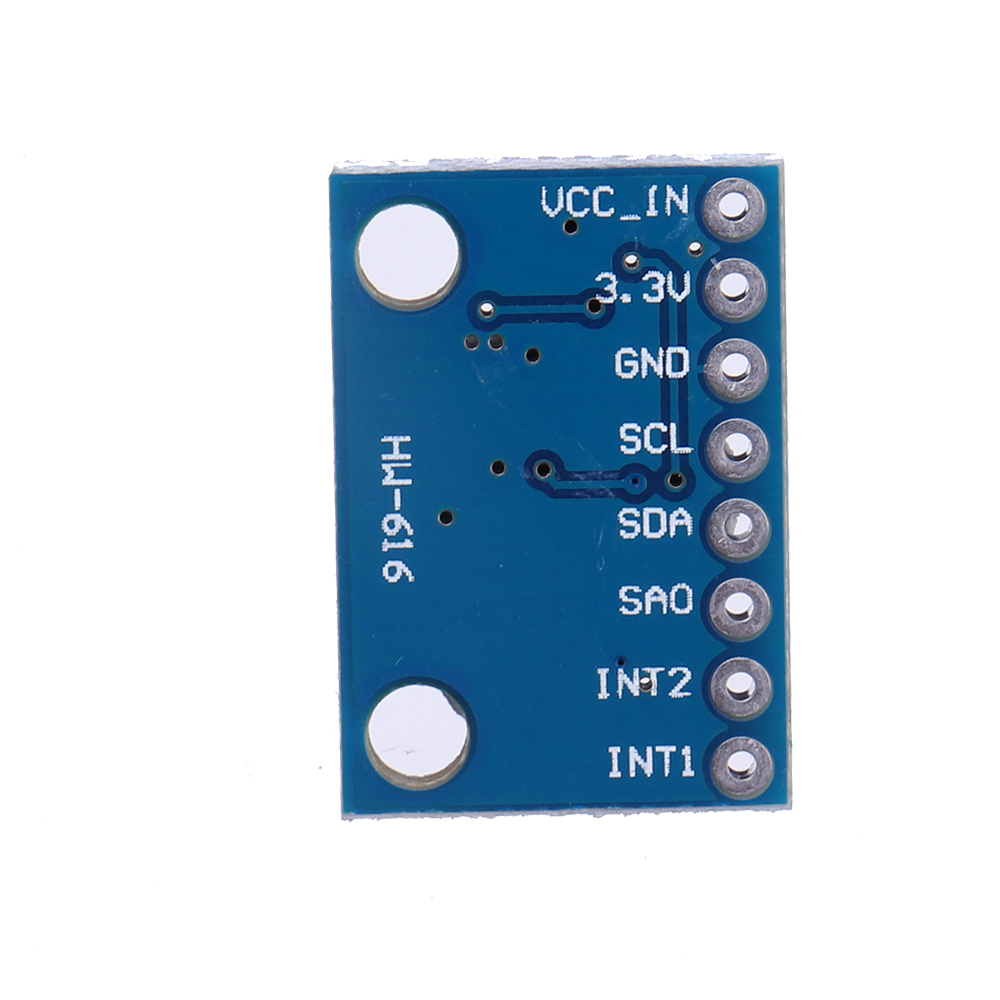

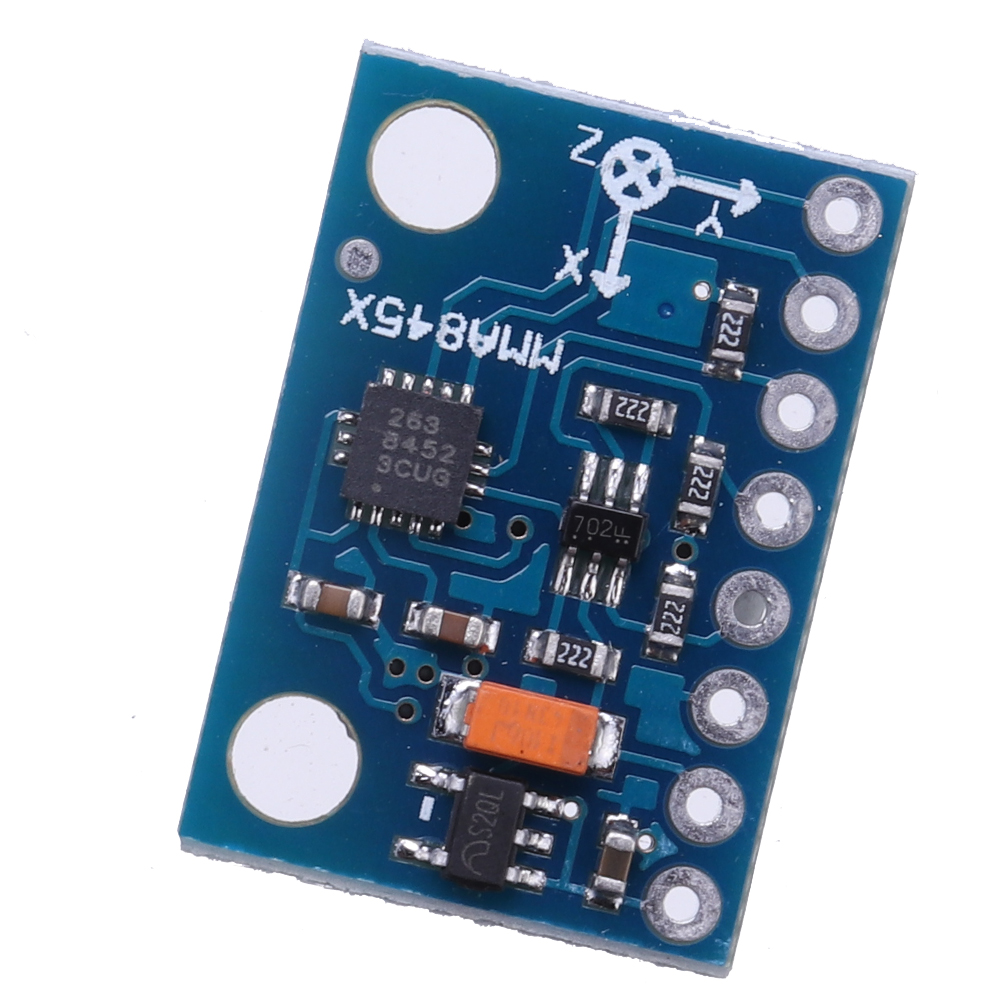

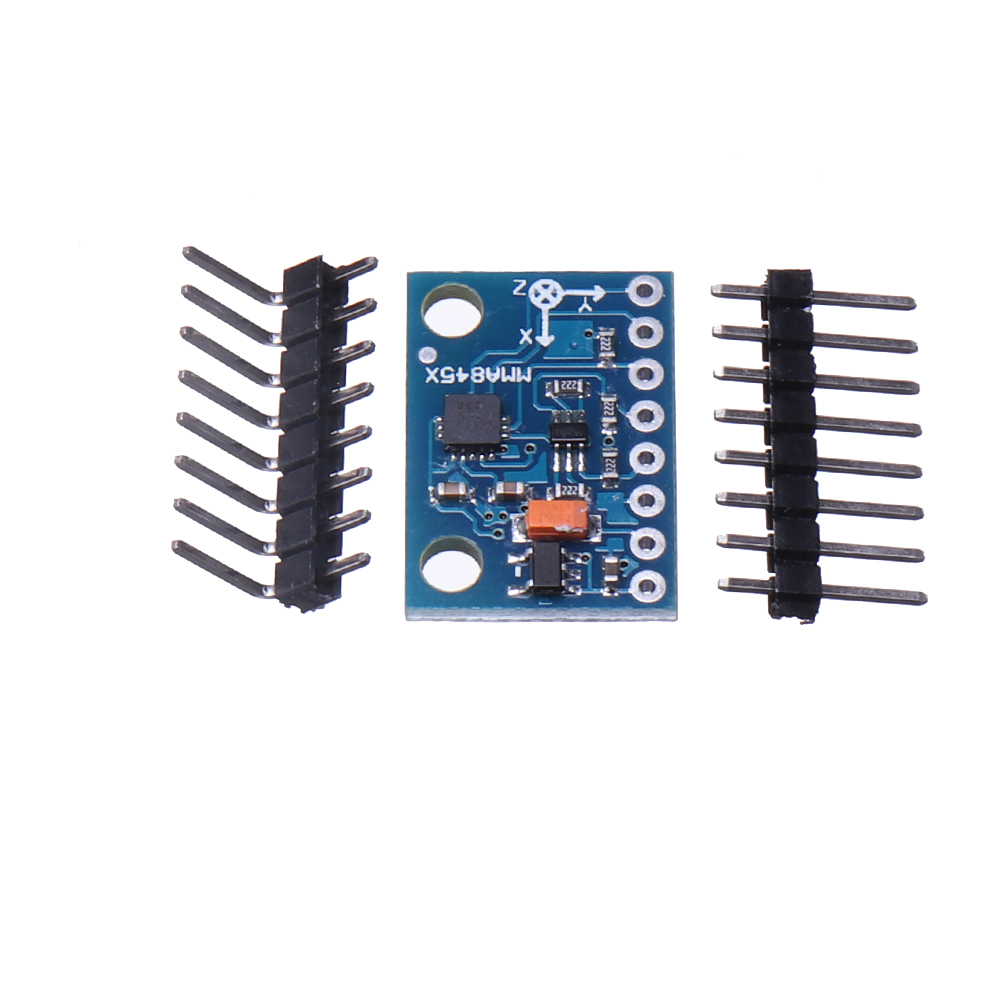

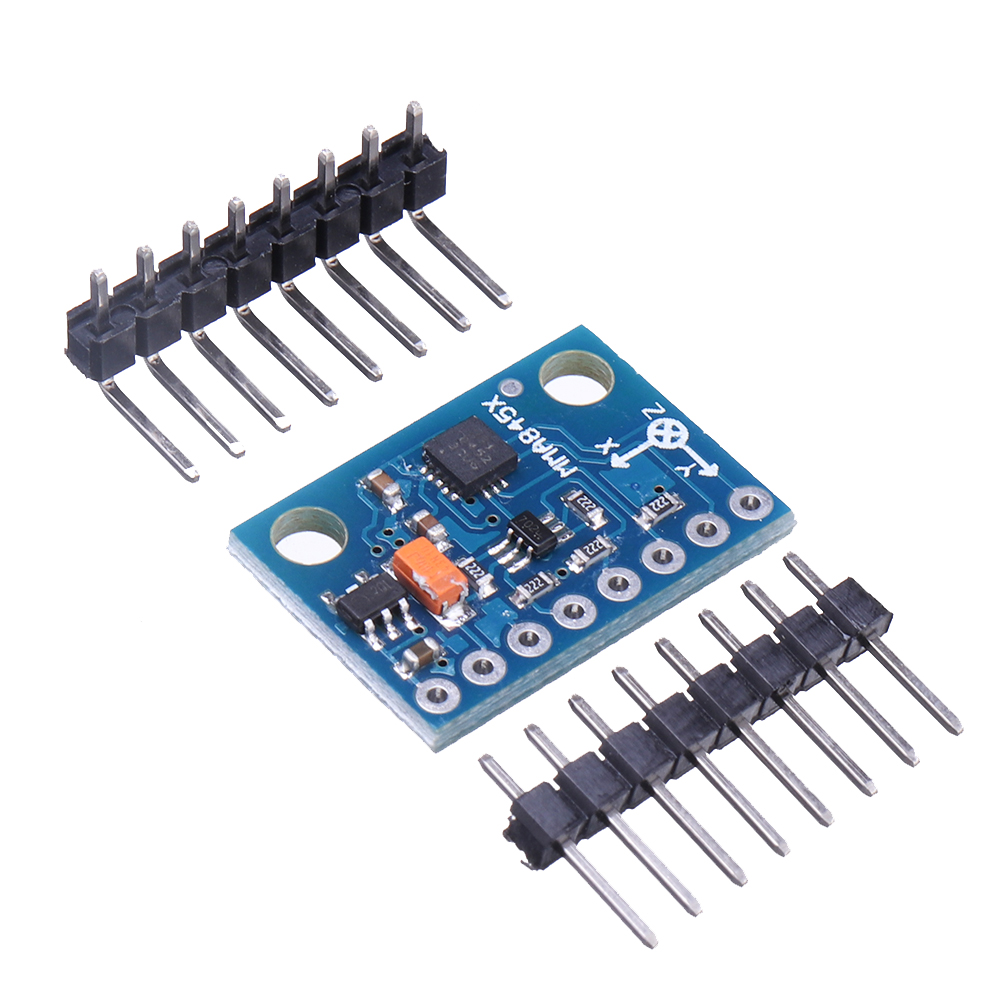

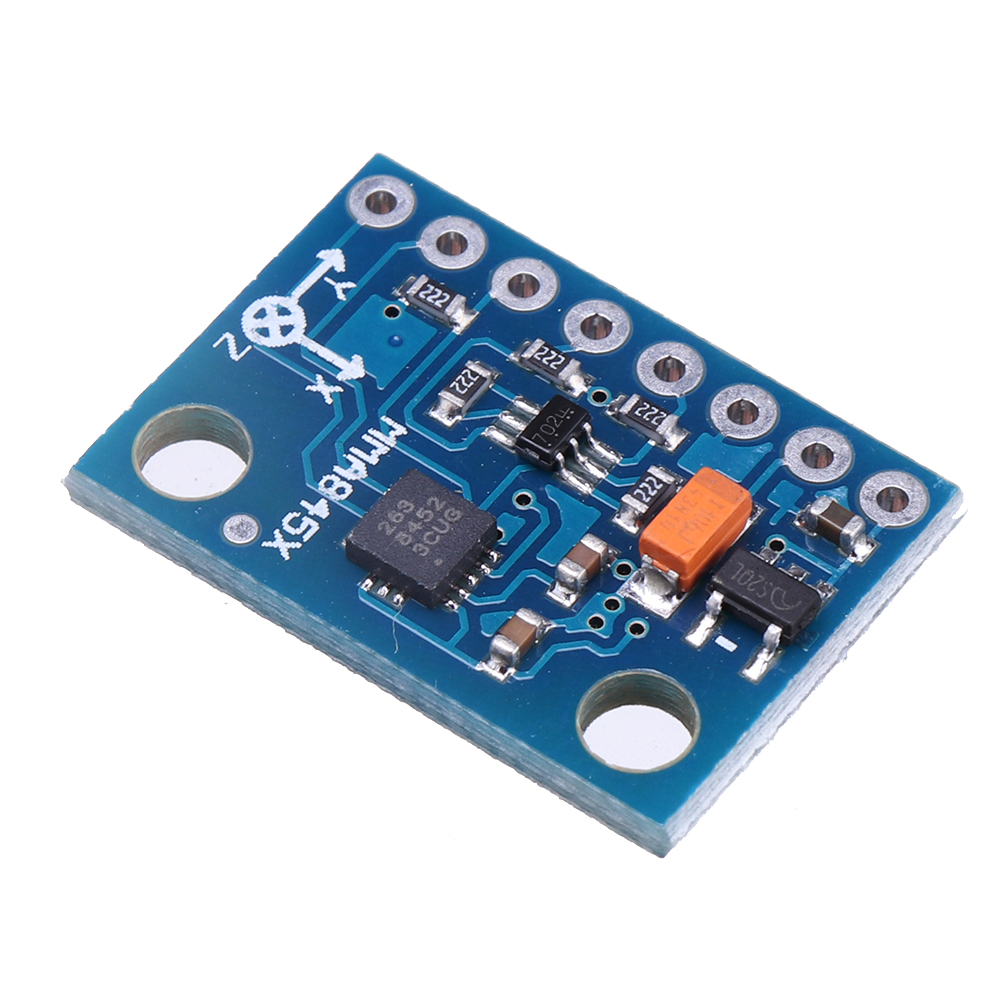

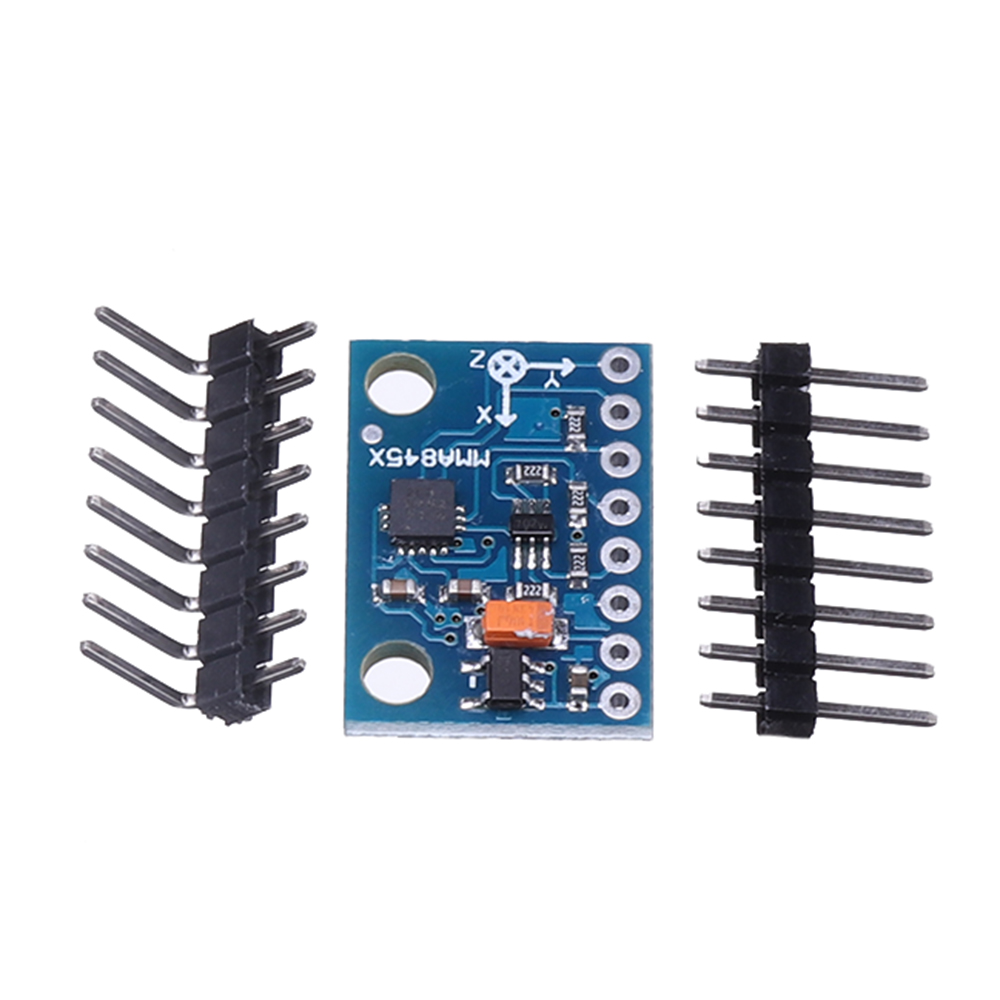

5pcs GY-45 MMA8452 Sensor Module Digital Triaxial Accelerometer High-precision Inclination Module

Availability: In stock

Regular Price: SGD56.00

Special Price SGD31.00

You Save: SGD25.00 (45%)

Quick Overview

Features:

1. MMA8452Q is a 12 intelligent low power and resolution of the three axis, capacitive micromachined accelerometer. The acceleration sensor has a rich embedded feature, with a flexible user programmable options, can be configured as many as two interrupt pins. Embedded interrupt function can save the overall power consumption, the main processor to remove the burden of constant polling data.
2. MMA8452Q has2g/   4g/   8g user selectable range, you can output high pass filtering data and non filtering data. The device can be configured to use any combination of embedded configuration function generates inertial wakeup interrupt signal, which makes the mma8452q in monitoring events at the same time, in the quiescent state to maintain low power mode.

Specifications:

- Power supply voltage: 1.95 V to 3.6 V
- Interface voltage: 1.6 V to 3.6 V
-  2g/   4g/   8g dynamic range
- Output data rate (ODR) range: 1.56 Hz to 800 Hz
- Noise: 99 g/ V Hz
- 12 bit and 8 bit digital output
- I2C digital output interface (the pull-up resistor is 4.7 K., the highest frequency up to 2.25 MHz)
- For 6 interrupt sources 2 programmable interrupt pin
- Set with lag compensation direction (horizontal / vertical) detection
- Automatic wake-up and automatic sleep ODR can automatically change
- High pass filter can output real-time data
- Self detection
- With RoHS standard
- Power: 6 A - 165 A
- The diameter of the installation hole 3mm, 15mm pitch
- 3  detection embedded channel
a.free fall or detection
b.channel pulse detection
c.shaking detection

Package Included:

5 x GY-45 MMA8452 Inclination Module
















OR

Additional Information

SKU GI/BG/1437628
Weight 0.0350
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
