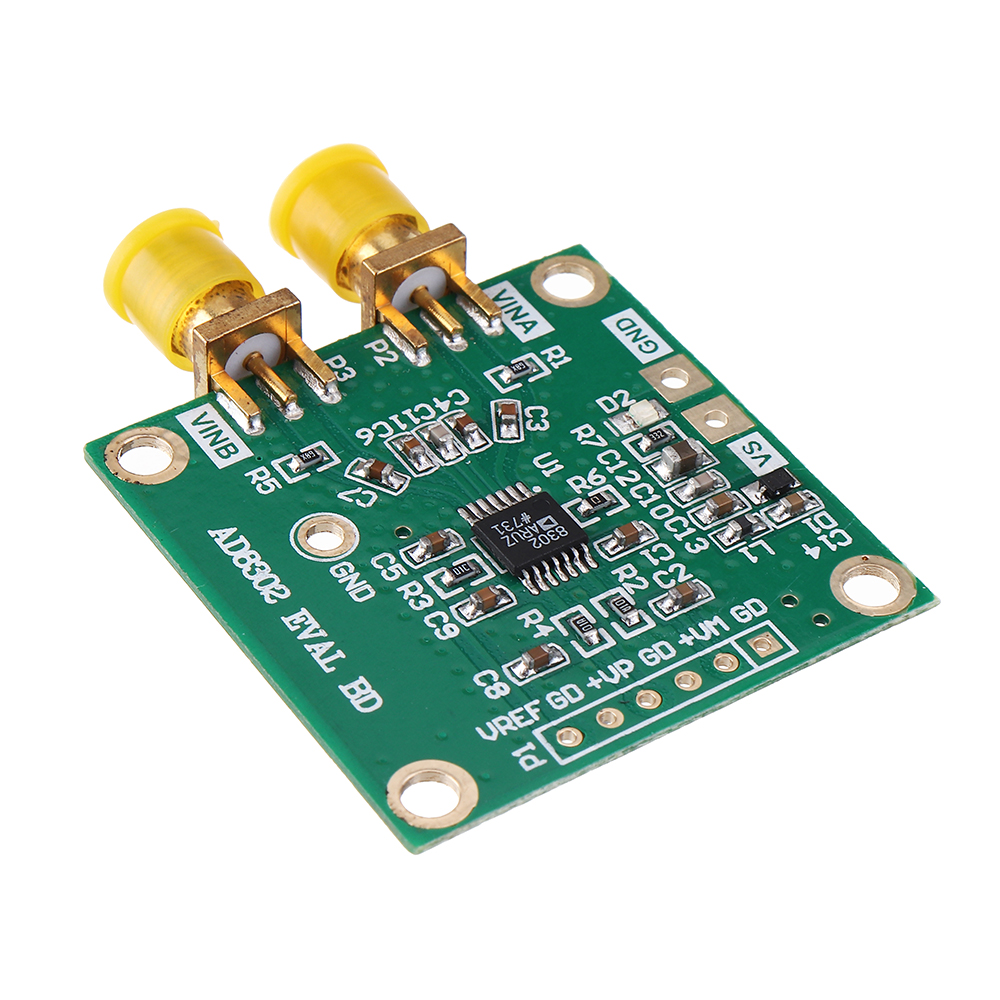

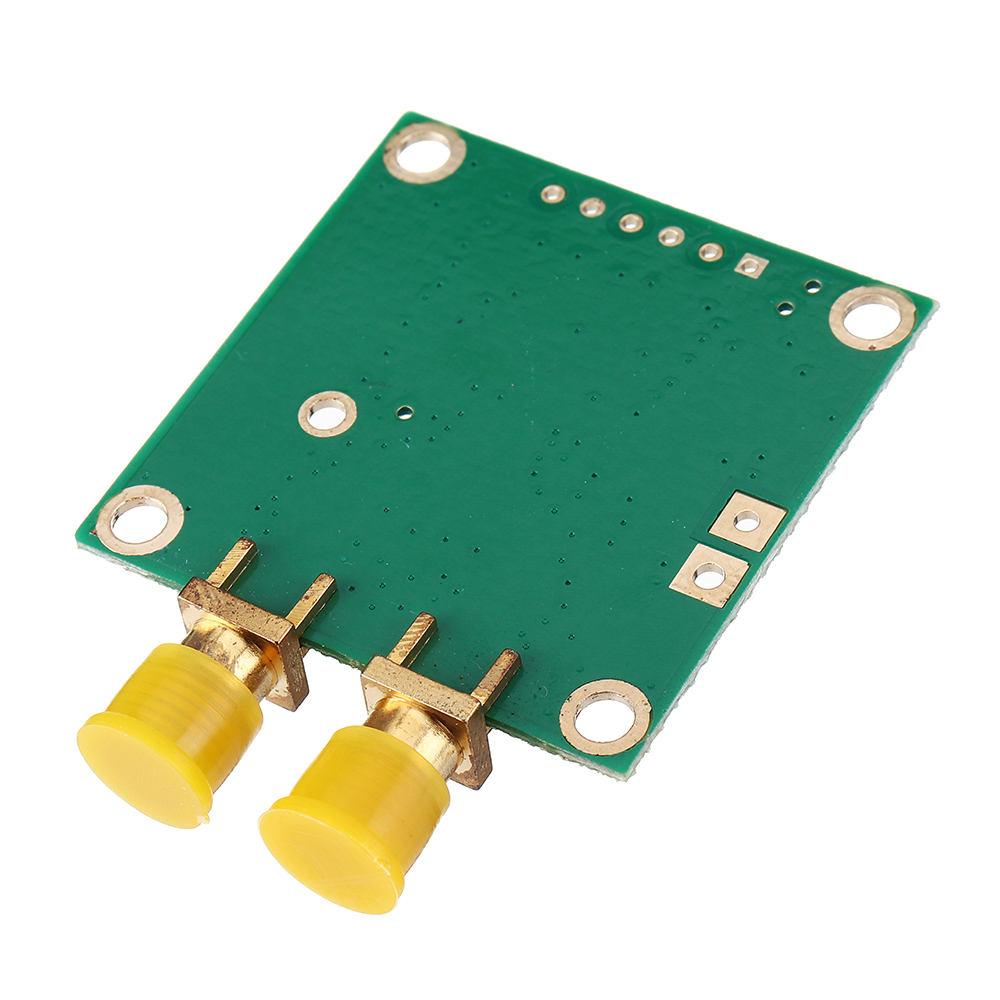

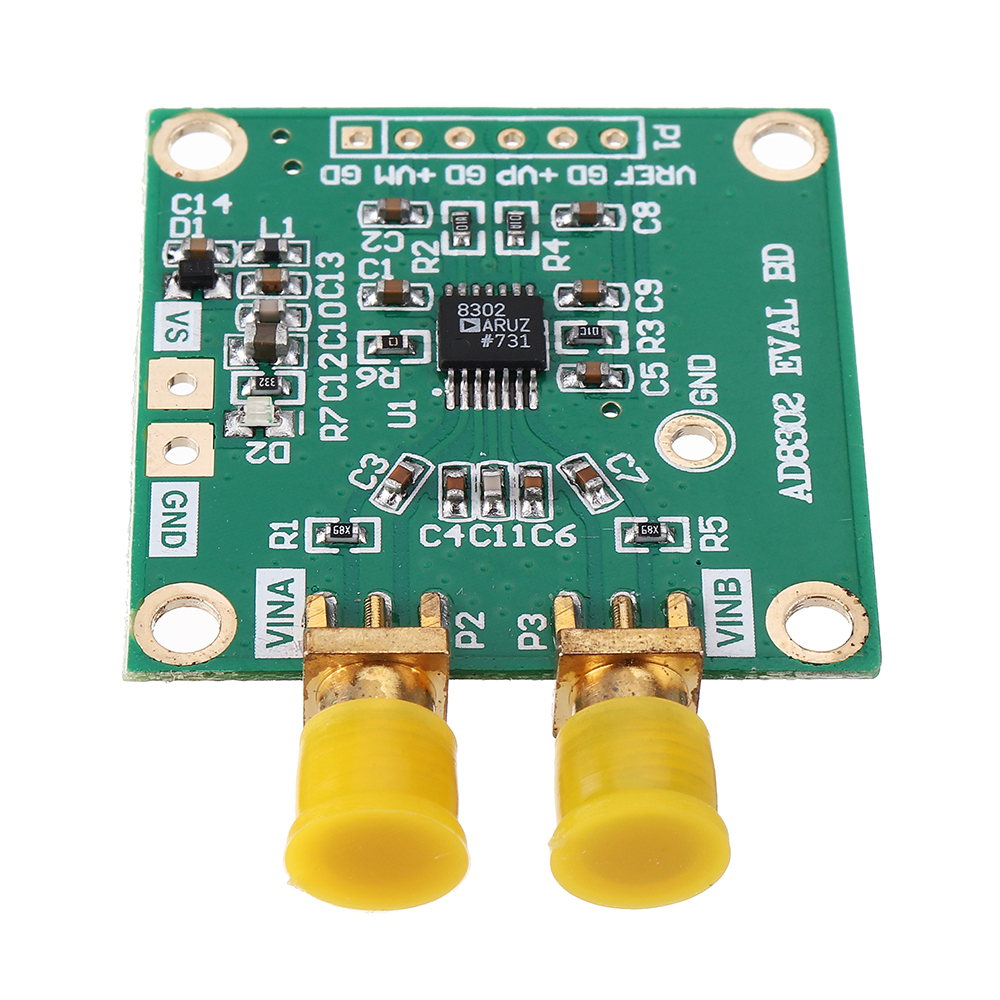

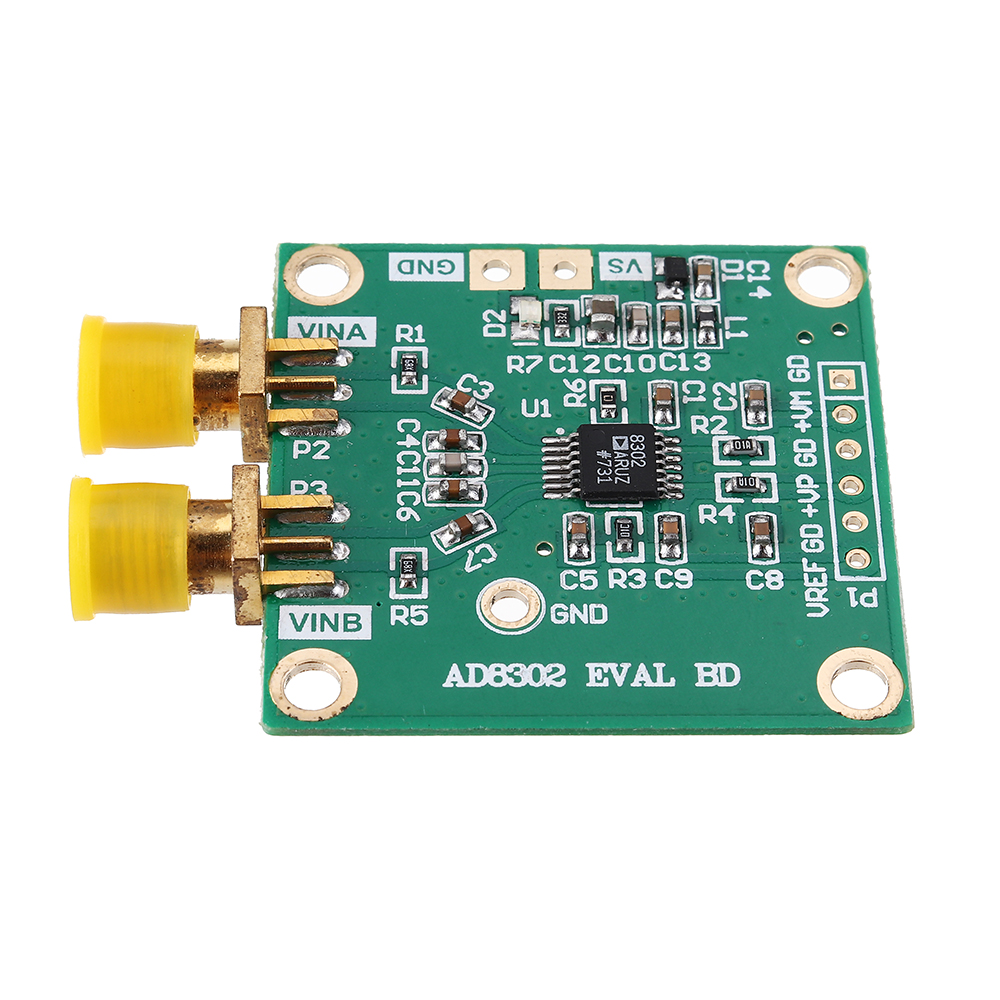

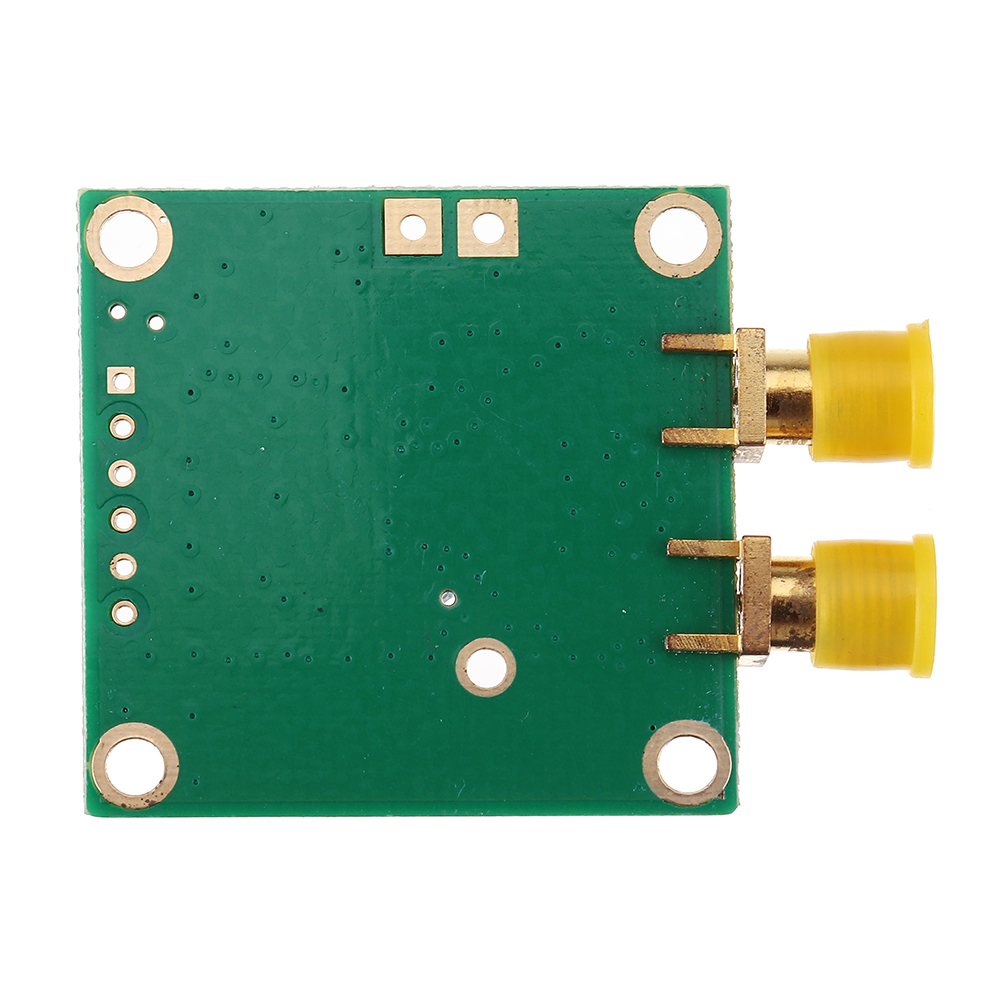

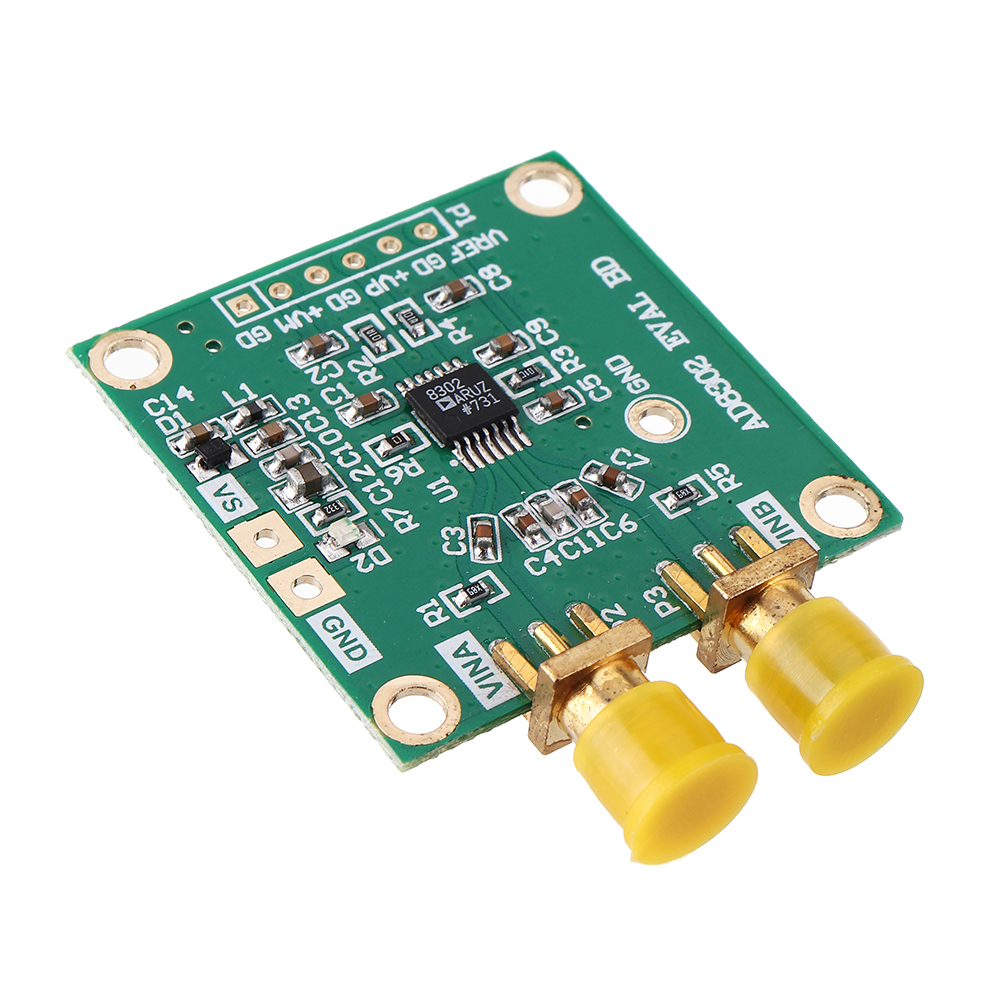

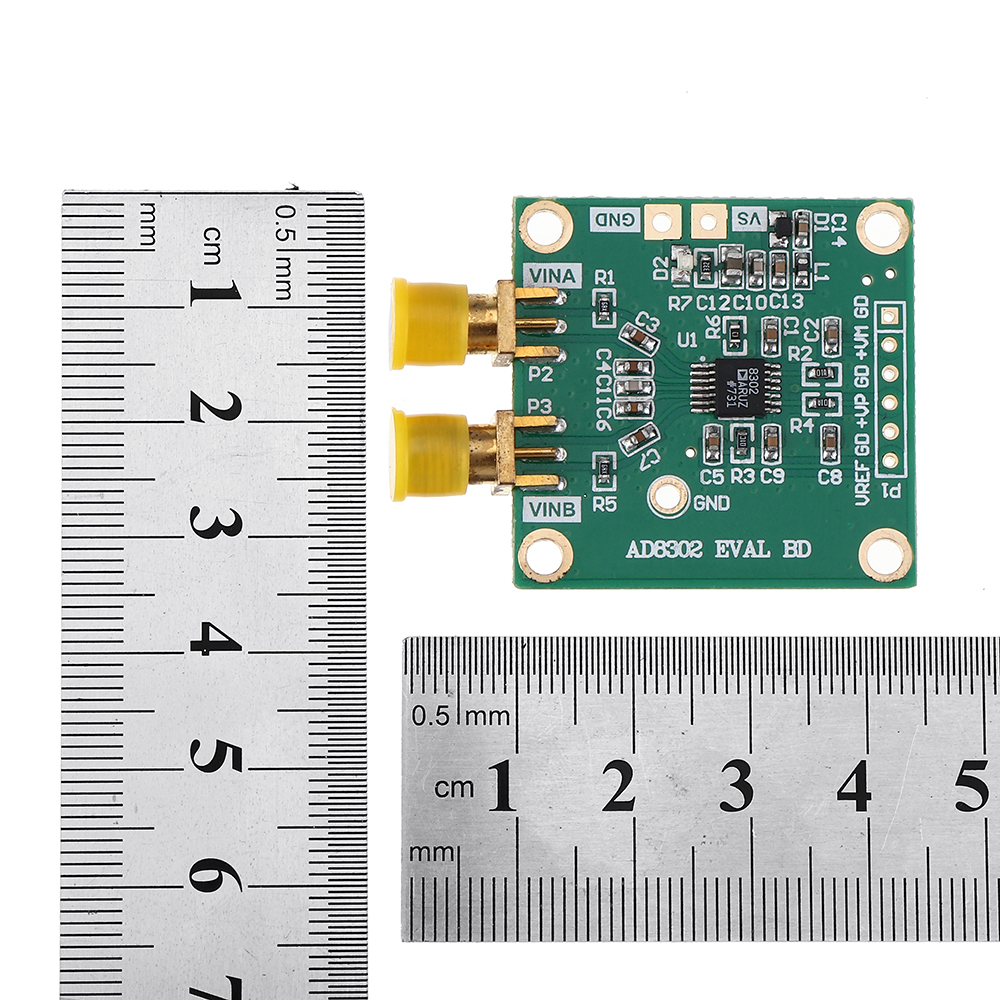

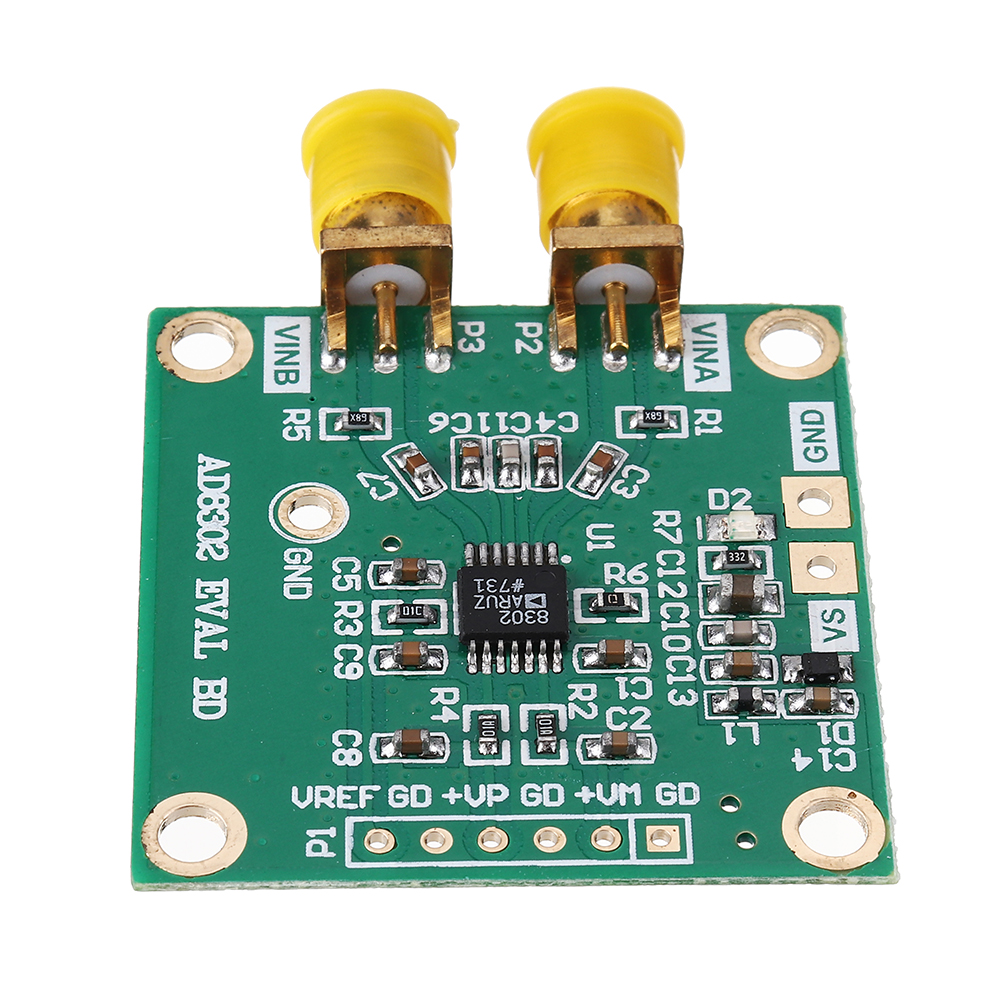

AD8302 Wideband Amplitude Phase Detection Impedance Analysis Module Amplifier Filter Mixer Loss and Phase Measurement

Availability: In stock

Regular Price: SGD27.00

Special Price SGD15.00

You Save: SGD12.00 (44%)

Quick Overview

Feature:

Single chip silicon bipolar device, amplitude / phase measurement
The AD8302 is a fully integrated RF IC that measures the amplitude and phase between two independent input signals. The device operates from low frequencies to 2.7 GHz.
The AD8302 contains two precision-matched wideband log amps, a wideband linear multiplier/phase detector, a 1.8V precision voltage reference, and an analog output proportional operation circuit.
The input signal range is -60 dBm to 0dBm (reference impedance 50Ω) with a corresponding dynamic range of 60dB.
The AD8302 output provides accurate amplitude measurements in the +/-30dB range with a slope of 30mV/dB; a phase measurement range of 0 to 180° with a slope of 10mV/degree.
Note: Please refer to application note AN-691 for module low frequency detection. The AD8302 is available in a 14-pin TSSOP package and operates over a temperature range of -40°C to 85°C.

Module application:

1. Measurement of insertion loss and phase of an amplifier, filter or mixer
2. Measure the vector reflection coefficient of any load
3. Impedance analysis

Support cable:

BNC male to SMA male
SMA male to SMA male

Frequency HzSignal source
[email protected] ohm
Source phase (degrees)Output voltage V
CH1CH2CH1CH2VMVP
500K0.2V0.2V0900.908V0.907V
500K0.1V0.2V0900.724V0.906V
500K0.2V0.1V0901.093V0.908V
500K0.2V0.2V01800.908V0.032V
500K0.2V0.1V01801.094V0.023V
500K0.1V0.2V01800.725V0.022V
500K0.2V /0.2V0-900.908V0.915V
500K0.1V0.2V0-900.725V0.914V
500K0.2V /0.1V0-901.093V0.915V
500K0.2V0.2V0-1800.909V0.032V
500K0.2V /0.1V0-1801.093V0.022V
500K0.1V0.2V0-1800.724V0.021V

Package includes:

1 x AD8302 module

















OR

Additional Information

SKU GI/BG/1487276
Weight 0.0120
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
