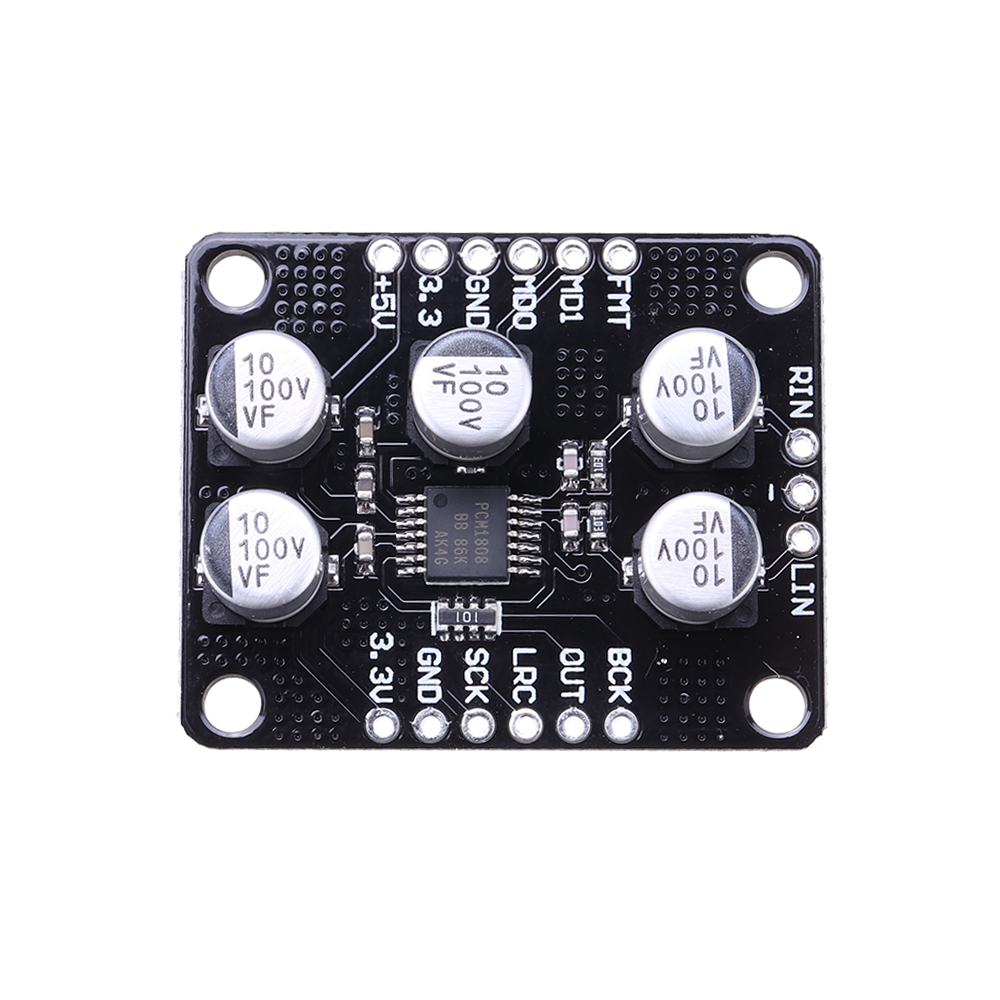

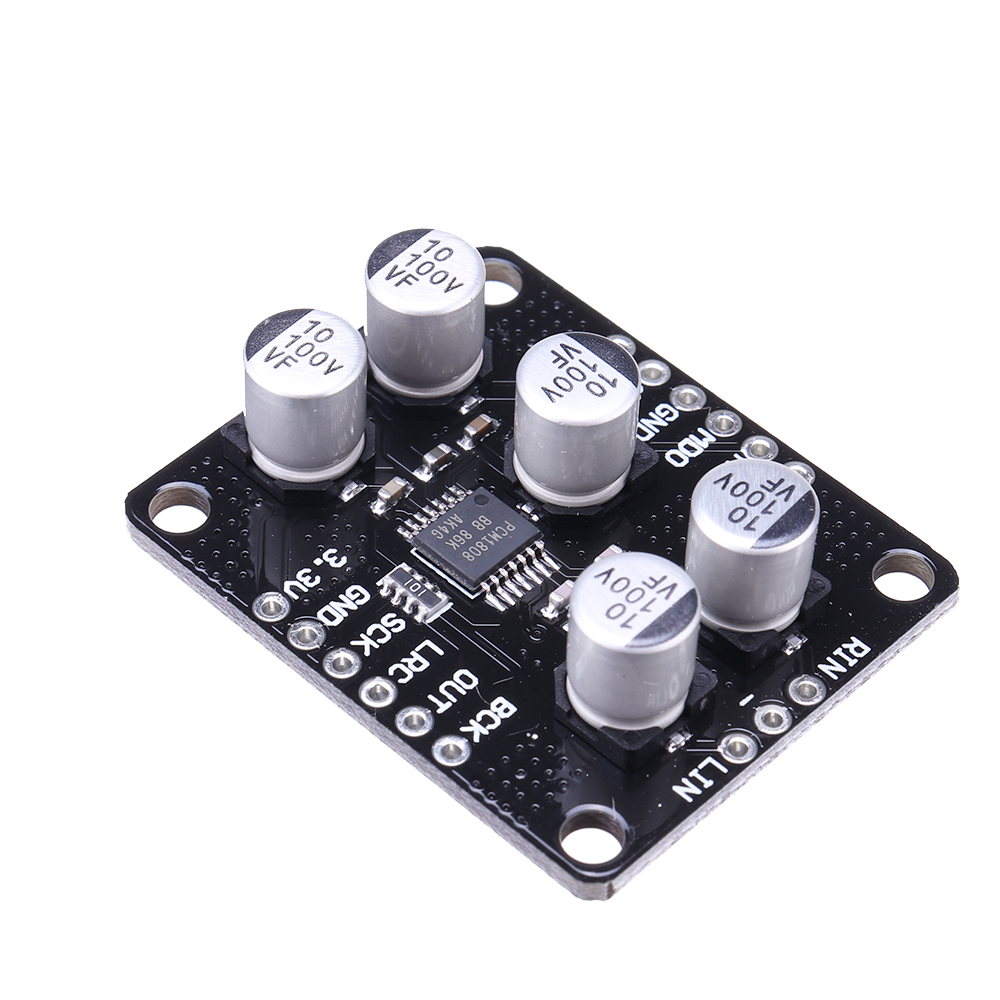

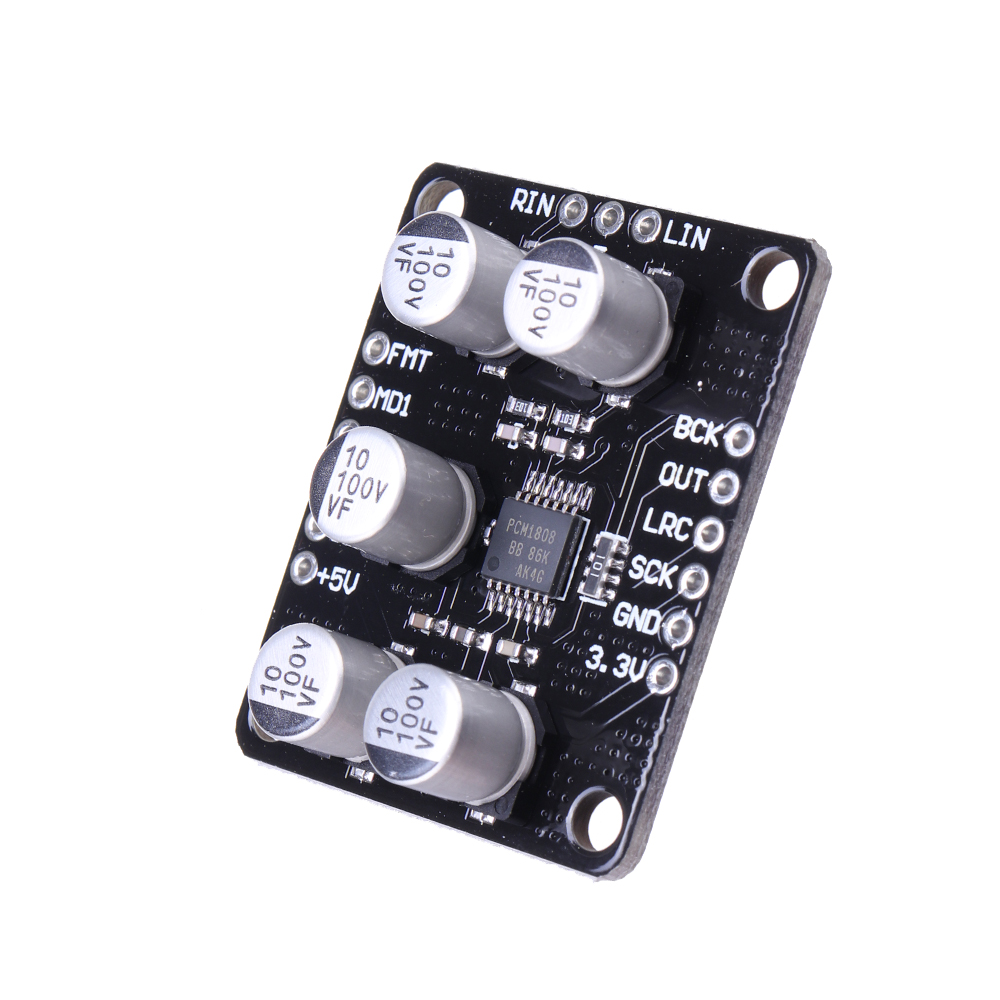

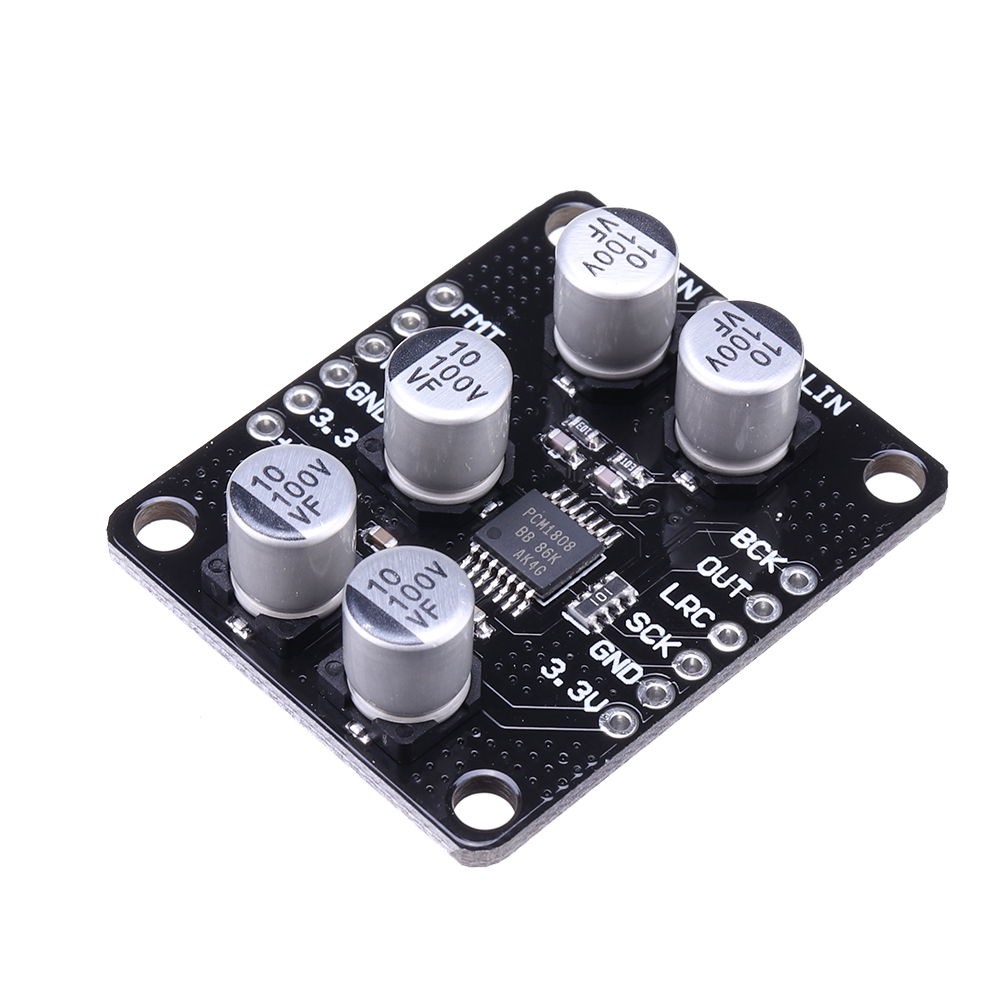

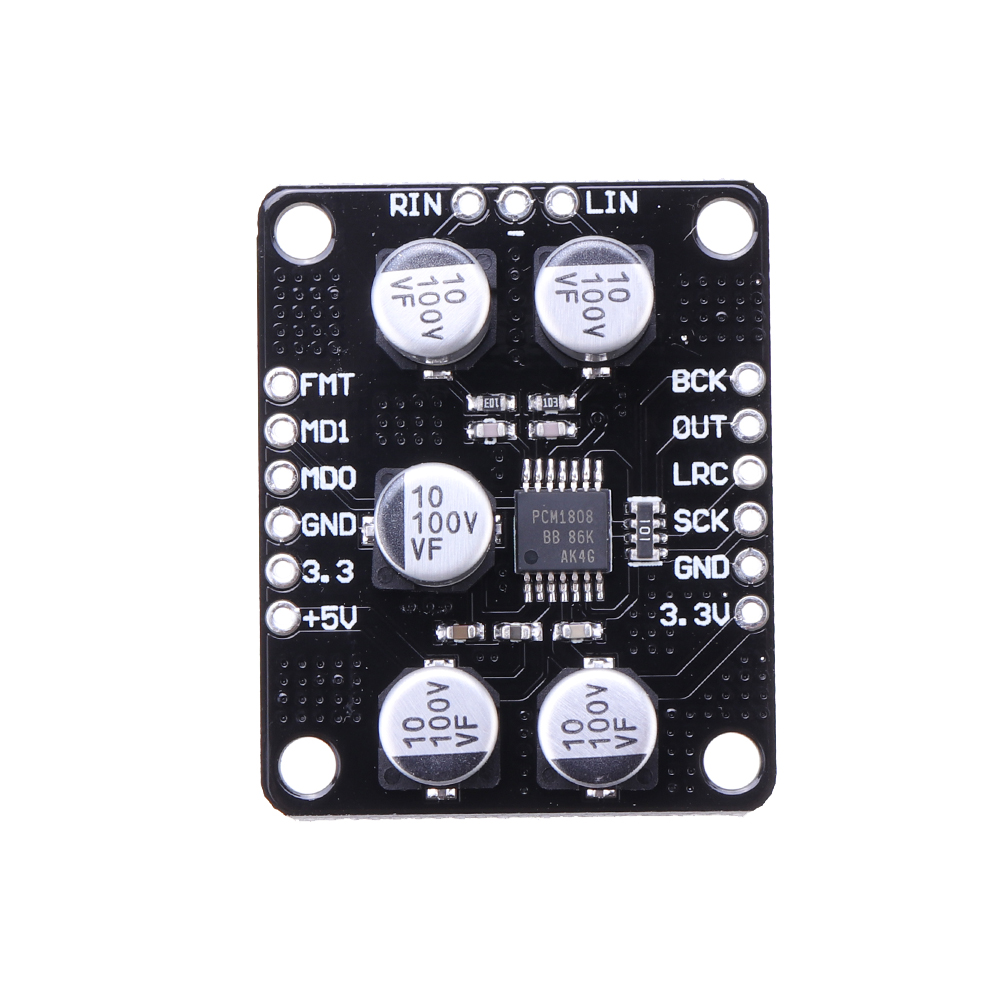

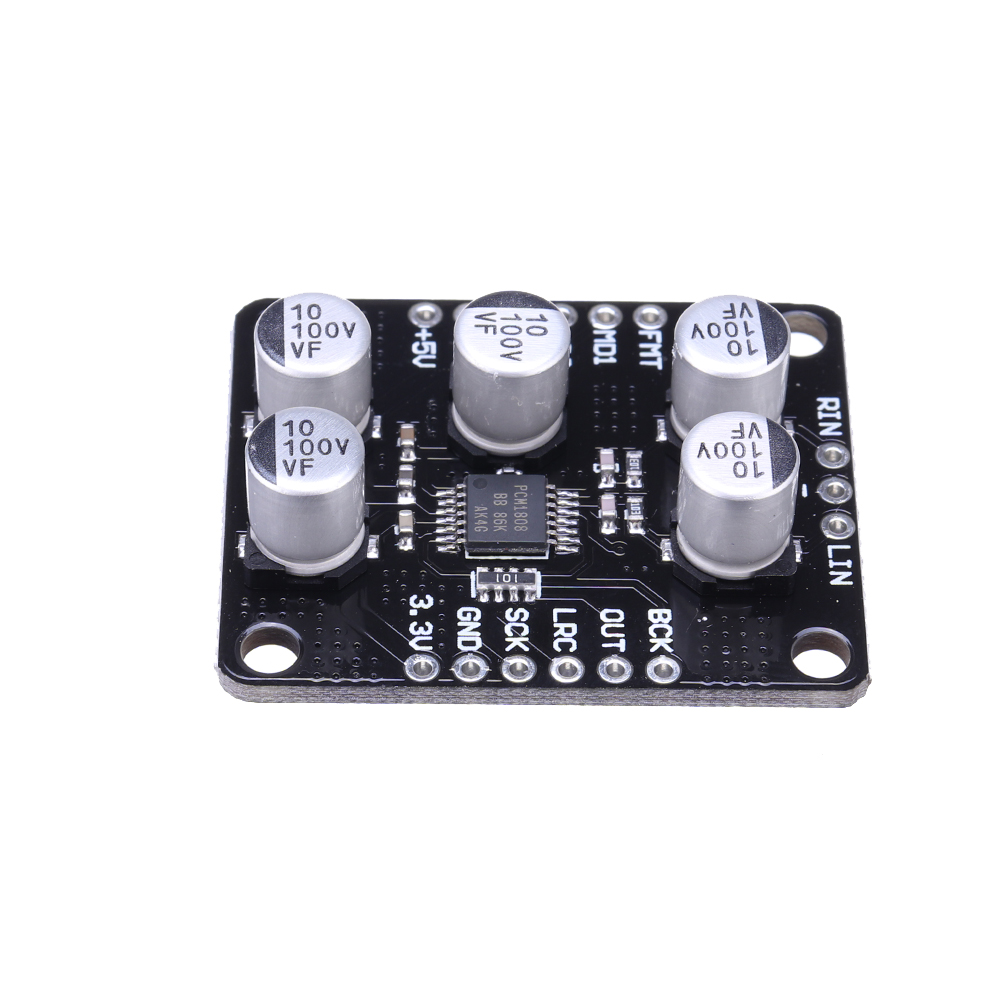

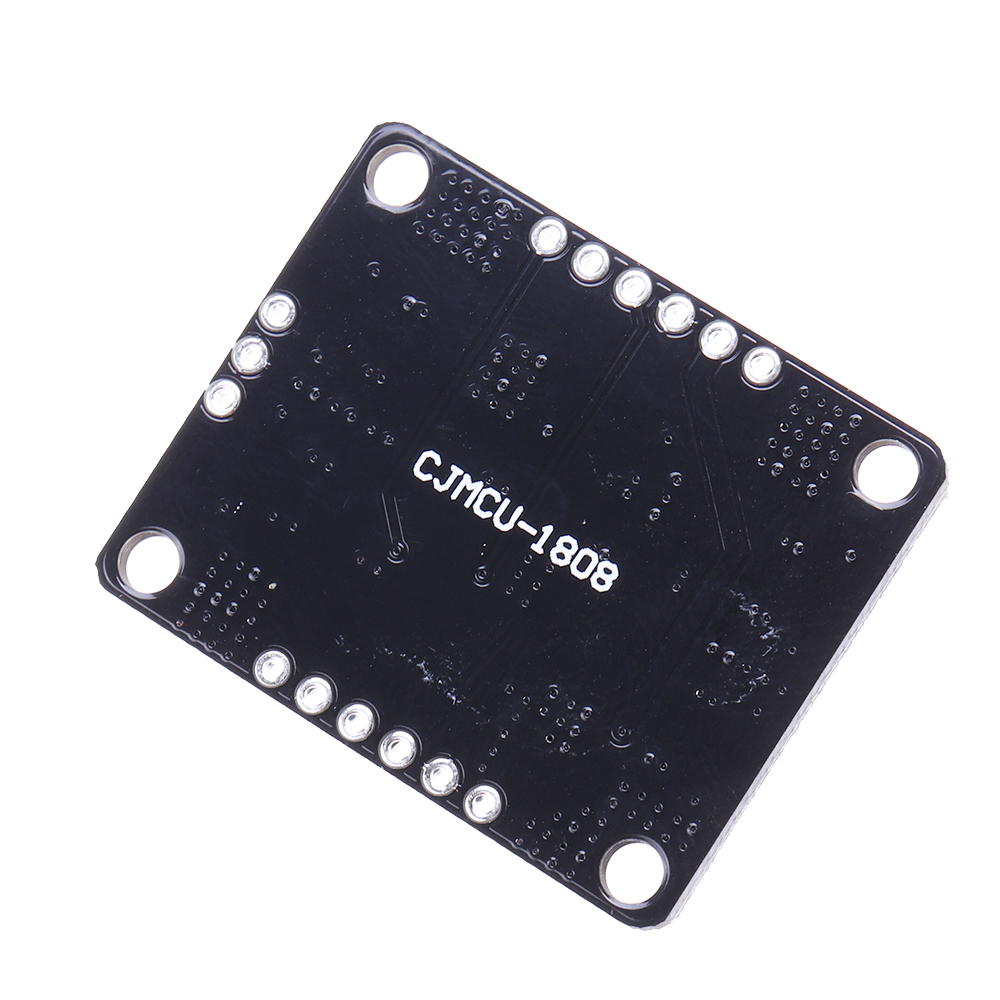

CJMCU-1808 PCM1808 Single-ended Input 99dB SNR Stereo ADC Module Analog Input Decoder 24bit Amplifier Board

Availability: In stock

Regular Price: SGD18.00

Special Price SGD10.00

You Save: SGD8.00 (44%)

Quick Overview

Description:

The PCM1808 device is a high-performance, low-cost, single-chip, stereo analog-to-digital converter with single-ended analog voltage input. The PCM1808 device uses a delta-si gma modulator with 64-times oversampling and includes a digital decimation filter and high-pass filter that removes the dc component of the input signal. For various applications, the PCM1808 device supports master and slave mode and two data formats in serial audio interface.
The PCM1808 device supports the power-down and reset functions by means of halting the system clock.
The PCM1808 device is suitable for wide variety of cost-sensitive consumer applications requiring good performance and operation with a 5-V analog supply and 3.3-V digital supply. Fabrication of the PCM1808 device uses a highly advanced CMOS process. The device is available in a small, 14-pin TSSOP package.

Features:

24-Bit Delta-Si gma Stereo A/D Converter
Single-Ended Voltage Input: 3 Vp-p
High Performance:
THD+N: -93 dB (Typical)
SNR: 99 dB (Typical)
Dynamic Range: 99 dB (Typical)
Oversampling Decimation Filter:
Oversampling Frequency: ×64
Pass-Band Ripple: ±0.05 dB
Stop-Band Attenuation: -65 dB
On-Chip High-Pass Filter: 0.91 Hz (48 kHz)
Flexible PCM Audio Interface
Master- or Slave-Mode Selectable
Data Formats: 24-Bit I2S, 24-Bit Left-Justified
Power Down and Reset by Halting System Clock
Analog Antialias LPF Included
Sampling Rate: 8 kHz-96 kHz
System Clock: 256 fS, 384 fS, 512 fS
Resolution: 24 Bits
Dual Power Supplies:
5-V for Analog
3.3-V for Digital
Package: 14-Pin TSSOP

Package includes:

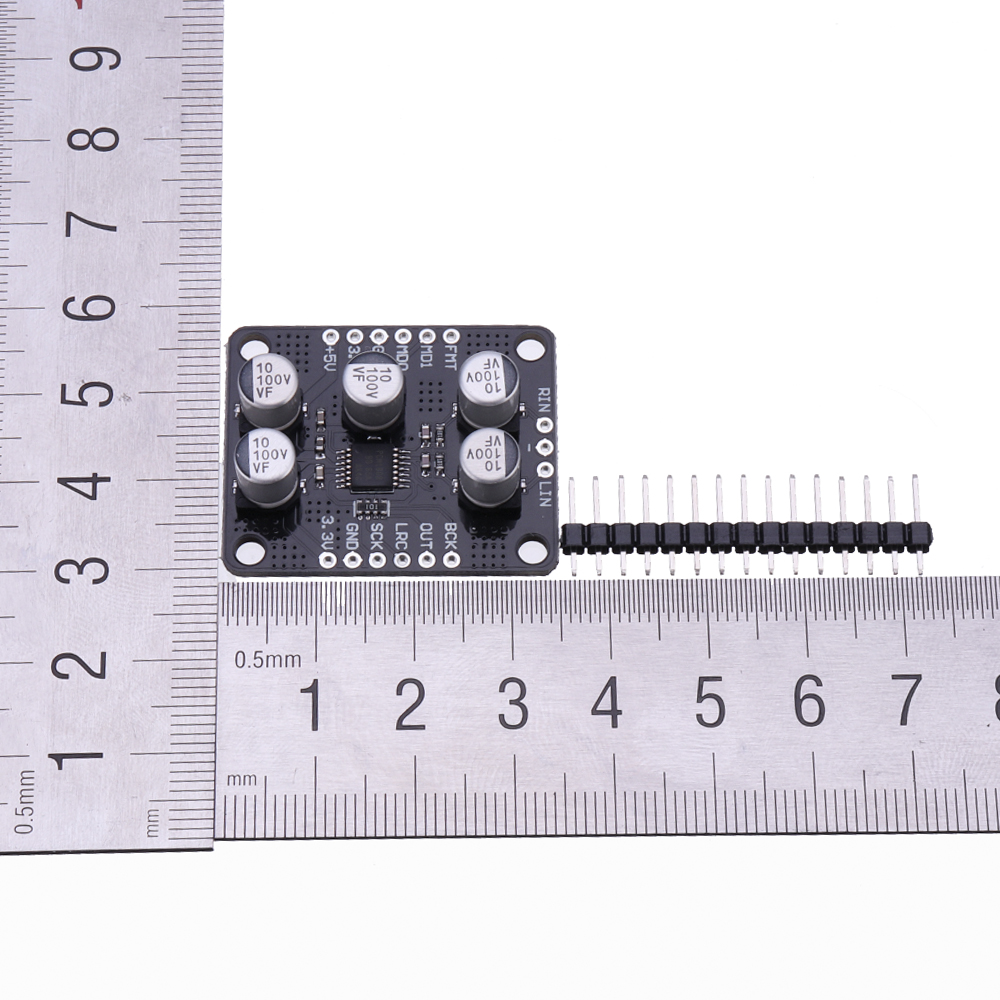

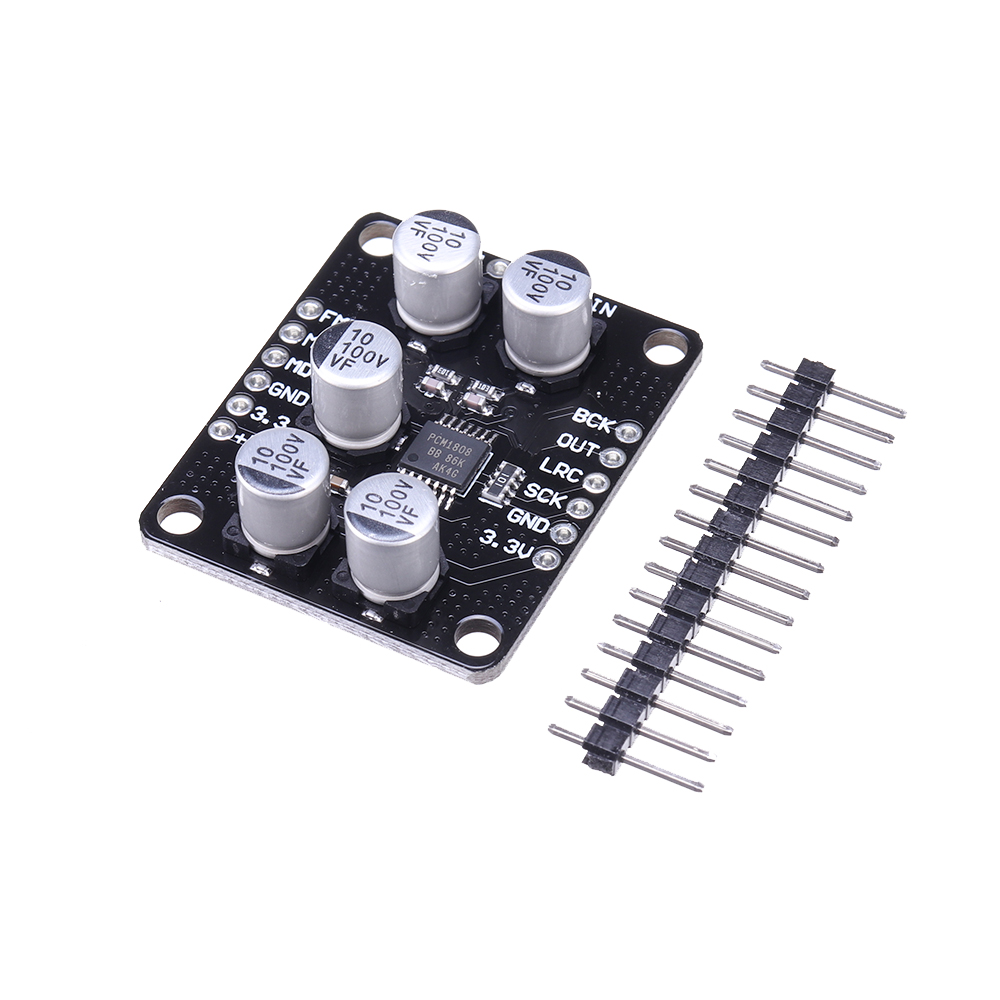

1 x Board with pin


















OR

Additional Information

SKU GI/BG/1461330
Weight 0.0060
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
