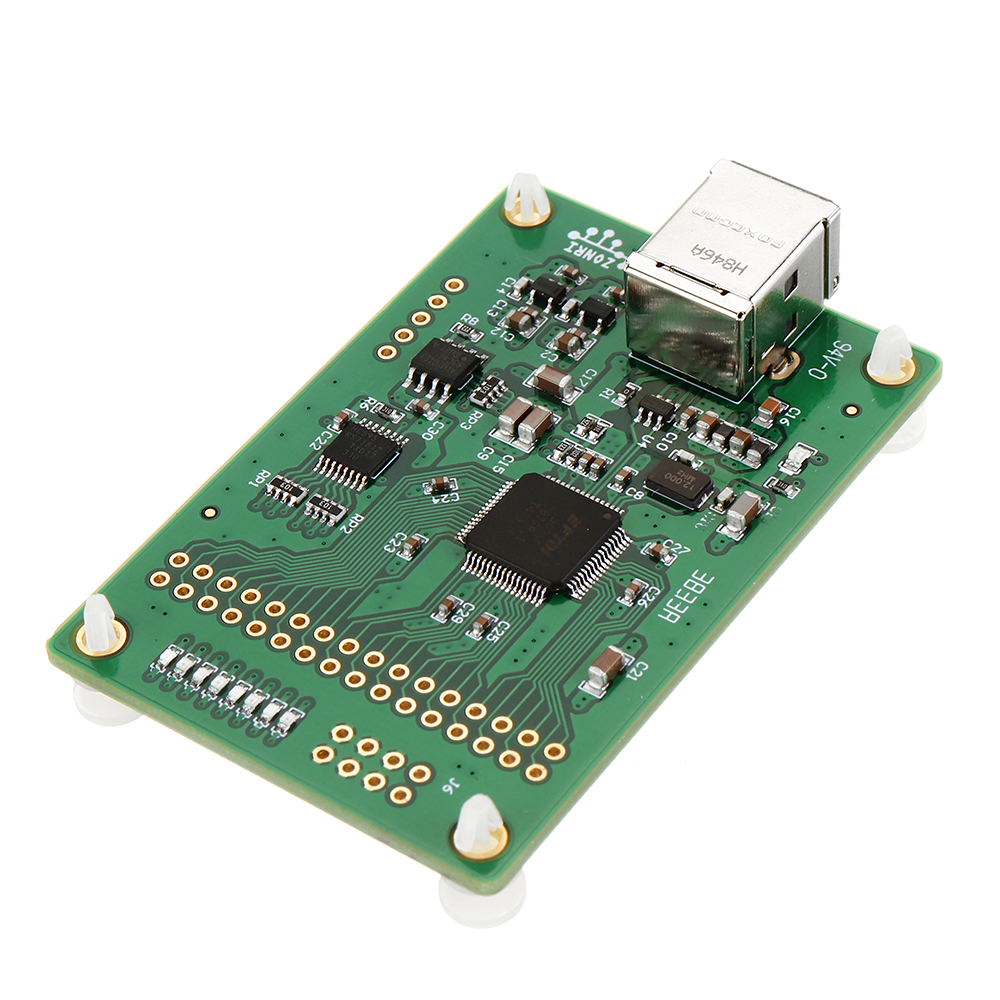

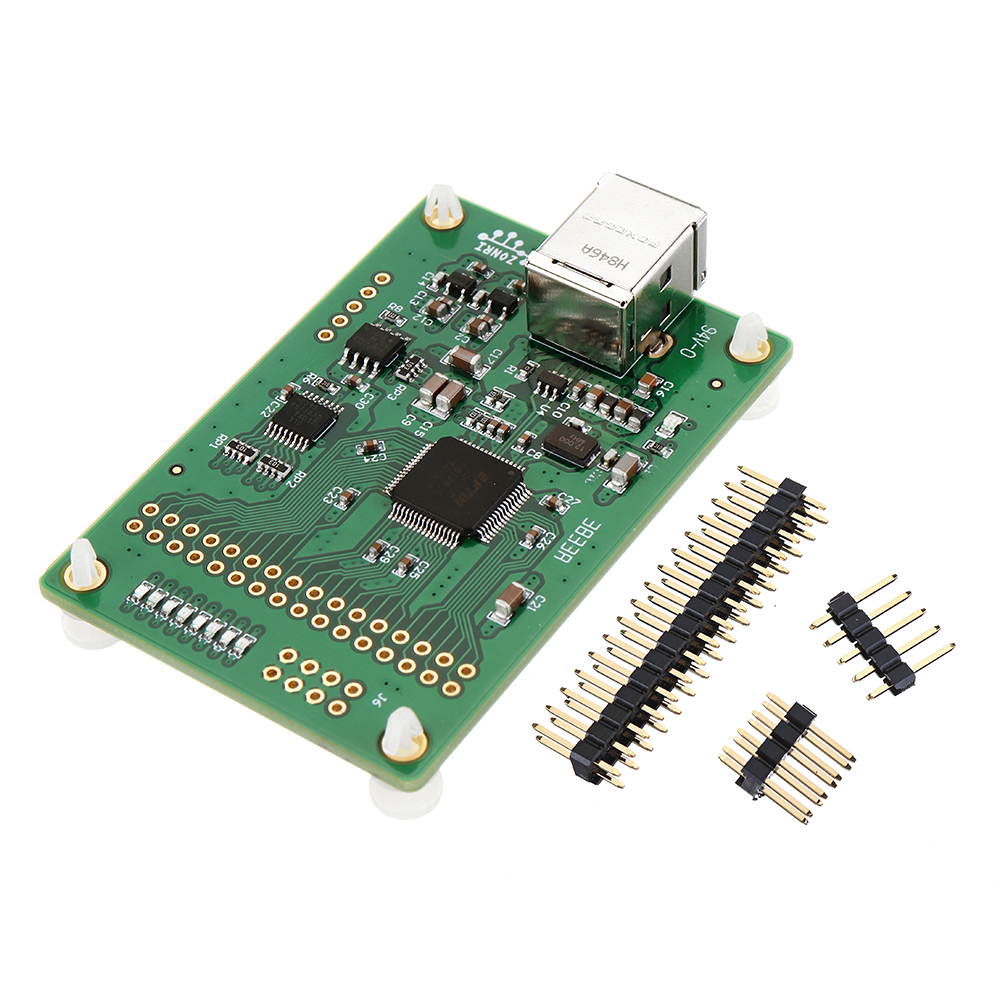

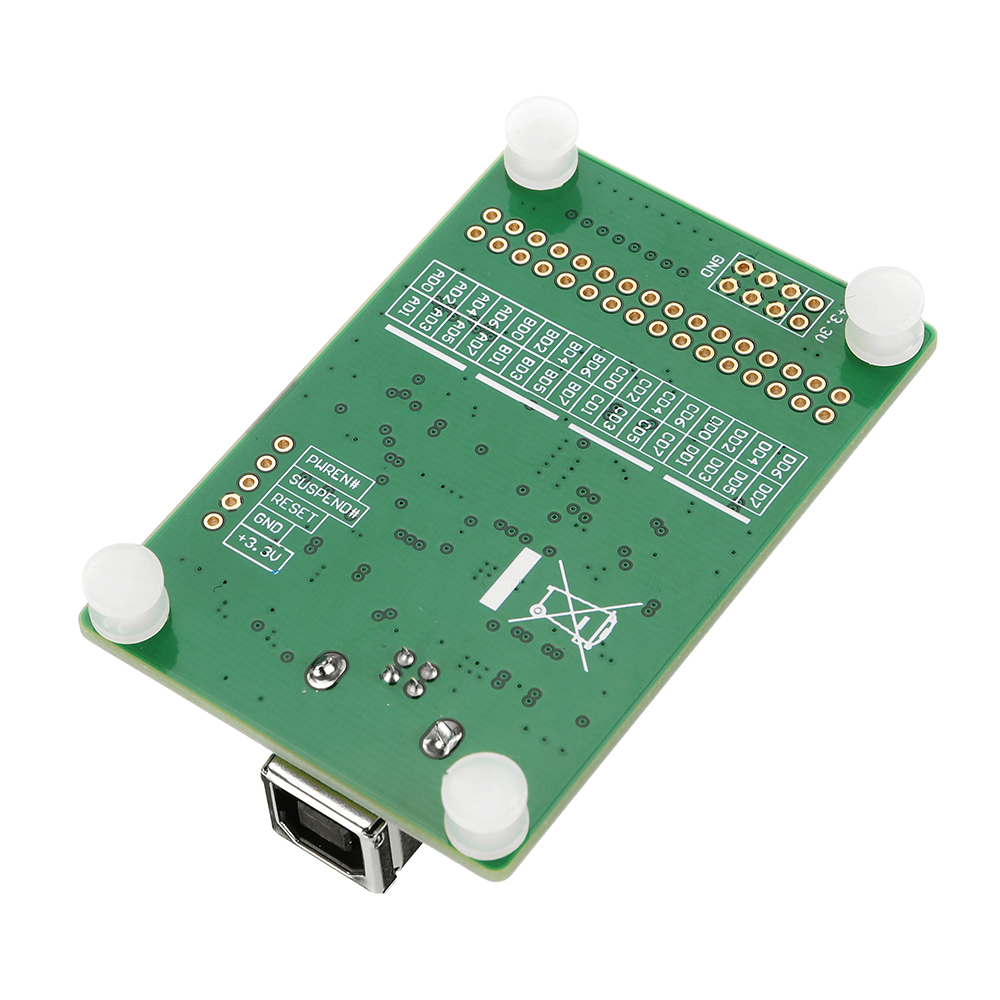

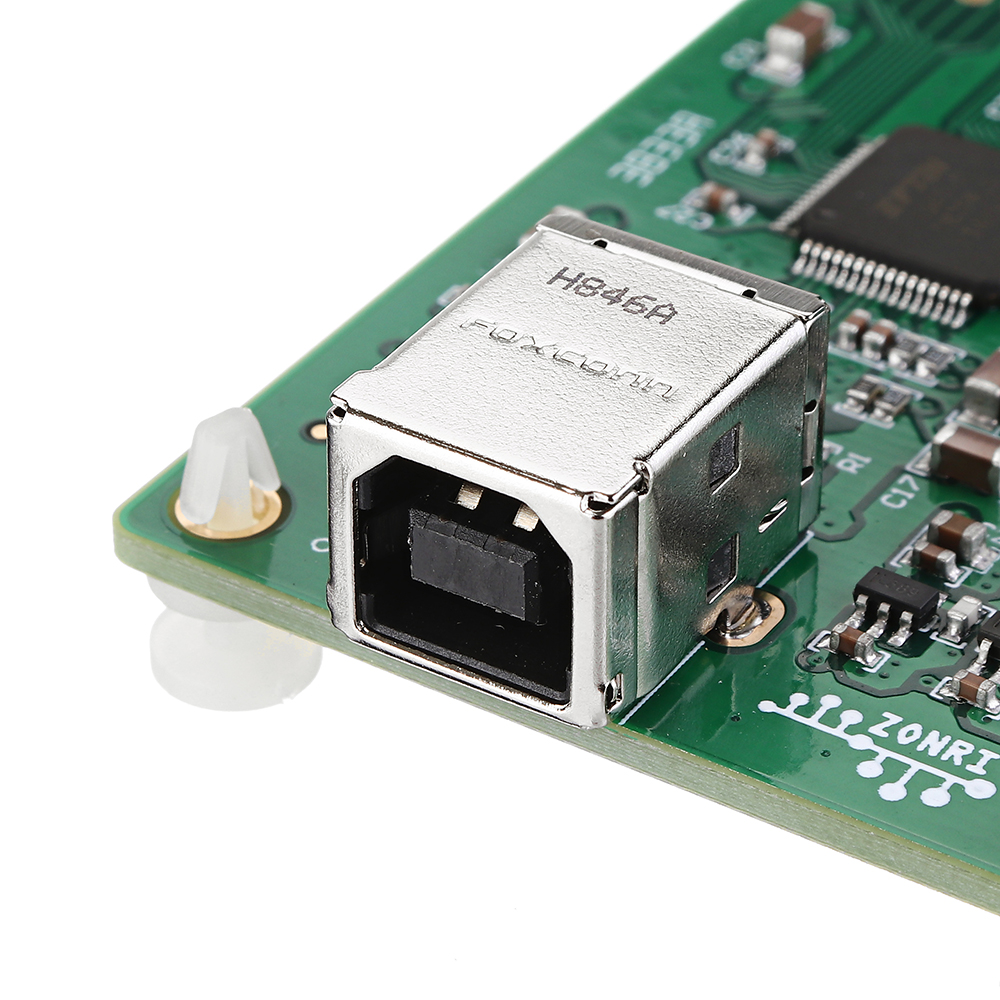

FT4232HL High-speed USB Transfer Serial Module Complete Demo USB2.0 Data Acquisition Module Development Board

Availability: In stock

Regular Price: SGD56.00

Special Price SGD31.00

You Save: SGD25.00 (45%)

Quick Overview

Overview:

The FT4232H is FTDI’s 5 th generation of USB devices.The FT4232H is a USB 2.0 High Speed (480Mb/s) to UART/MPSSE ICs. The device features 4 UARTs. Two of these have an option to independently configure an MPSSE engine. This allows the FT4232H to operate as two UART/Bit-Bang ports plus two MPSSE engines used to emulate JTAG, SPI, I 2 C, Bit-bang or other synchronous serial modes.

Features:

- Single chip USB to quad serial ports with a variety of configurations.
- Entire USB protocol handled on the chip. No USB specific firmware programming required.
- USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
- Two Multi-Protocol Synchronous Serial Engine(MPSSE) on channel A and channel B, to simplify synchronous serial protocol (USB to JTAG, I 2 C,SPI or bit-bang) design.
- Independent Baud rate generators.
- RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
- FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
- Optional traffic TX/RX indicators can be added with LEDs and an external 74HC595 shift register.
- Adjustable receive buffer timeout.
- Support for USB suspend and resume conditions via PWREN#, SUSPEND# and RI# pins.
- and so on.

More details click to download: FT4232HL

Package Included:

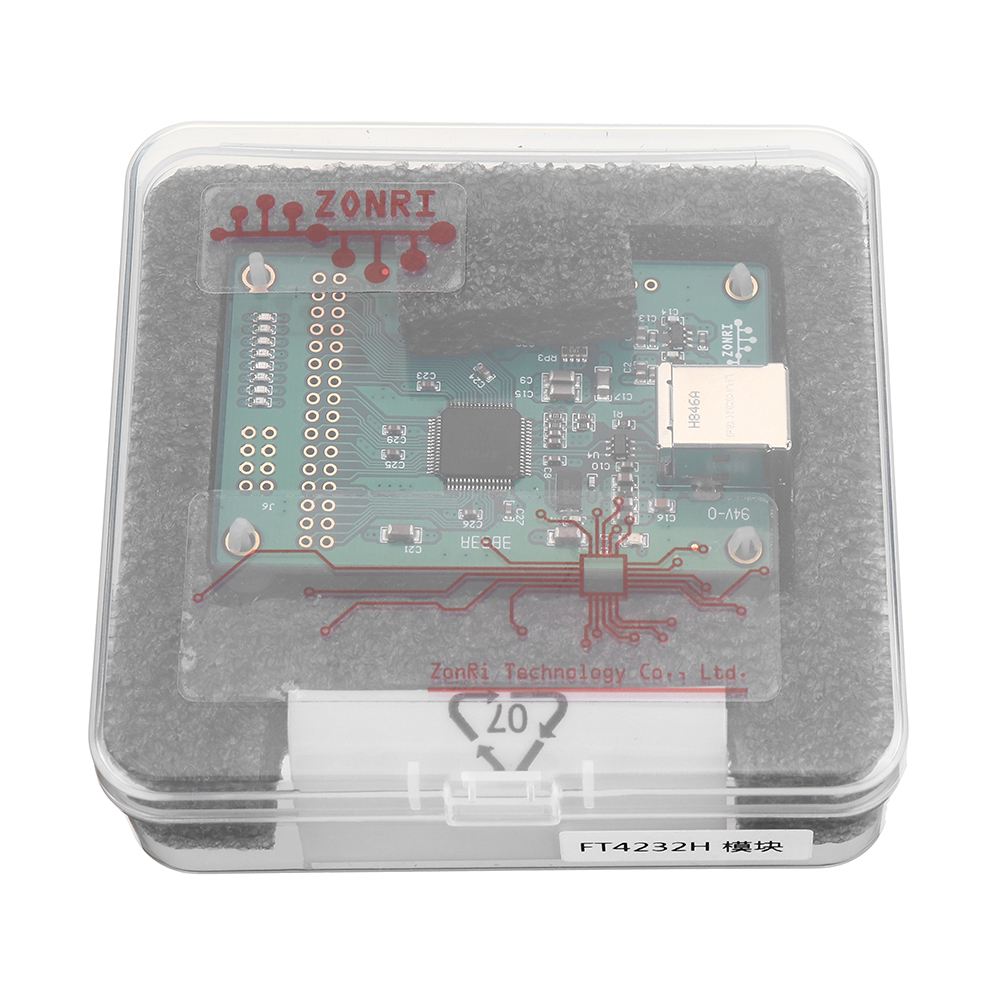

1 x FT4232HL High-speed USB Transfer Serial Module









OR

Additional Information

SKU GI/BG/1470171
Weight 0.0550
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
