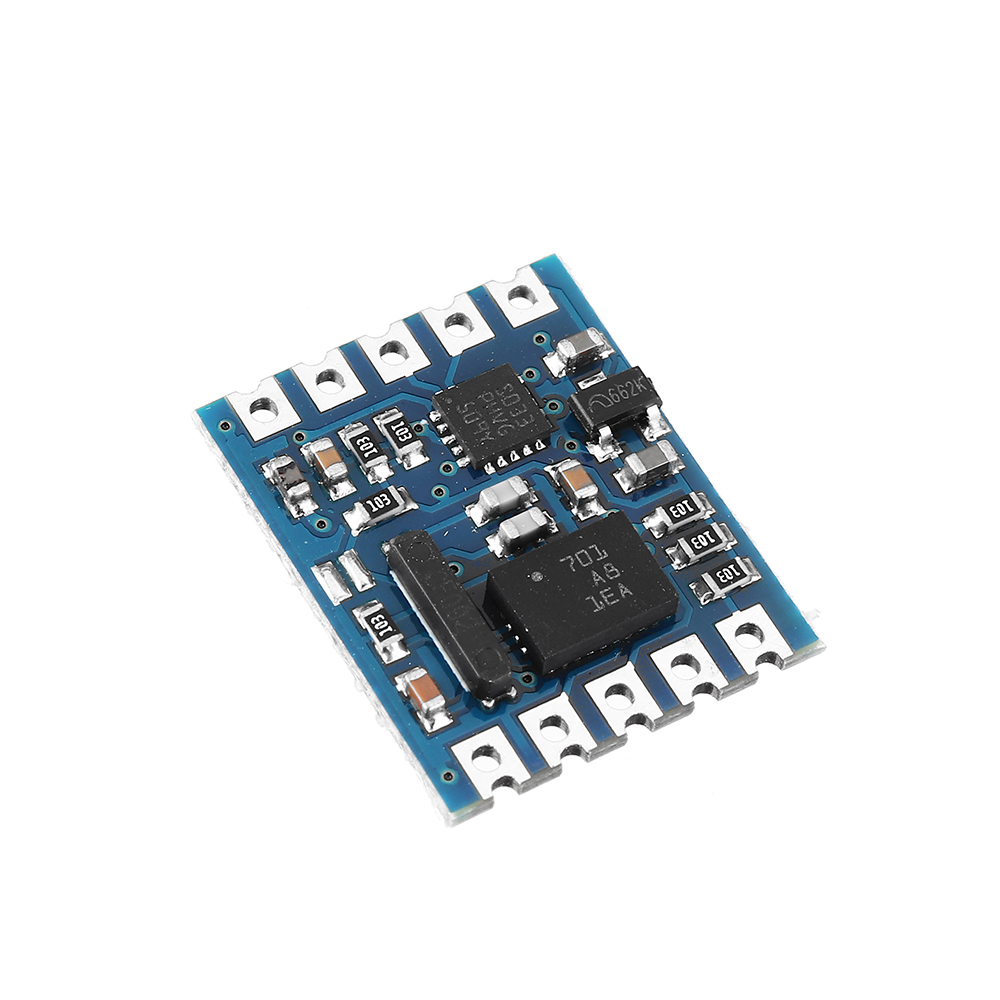

GY-955 GY-BNO055 9DOF Sensor Angle Gyro Module 9 Axis Navigation Module Acceleration Gyroscope Magnetometer

Availability: In stock

Regular Price: SGD54.00

Special Price SGD30.00

You Save: SGD24.00 (44%)

Quick Overview

More ducument click to download: GY-BNO055

Overview:

GY955 is a low cost AHRS module.
Working voltage 3-5v power consumption is small, small size.
Its working principle is through the gyroscope with
Acceleration pass, magnetic field sensor through data fusion
The algorithm finally gets direct angle data.
This module uses the serial (TTL level)
way of communication. The product has high precision and high stability.
Able to get an accurate angle in any position,
Serial baud rate of 9600bps and 115200bps
There are two ways of continuous output and inquiry output,
Can adapt to different working conditions.
With all the microcontroller and computer connection.

Specifications:

Measuring range: -180 ° ~ 180 °
Resolution: 0.01 °
Measurement accuracy: 2 °
Repeatability: 2 °
Response frequency: 100 HZ (115200 bps)
Working voltage: 3 ~ 5 V
Working current: 15mA
Operating temperature: -20 ° ~ 85 °
Storage temperature: -40 ° ~ 125 °
Size: 14.6mm × 17.8mm

Features:

Built-in MCU calculation angle
small volume
Serial communication format
With the corresponding host computer software

Applications:

Handheld instrumentation
Robot navigation, positioning
Voyage model system
Balance car
Antenna pitch positioning

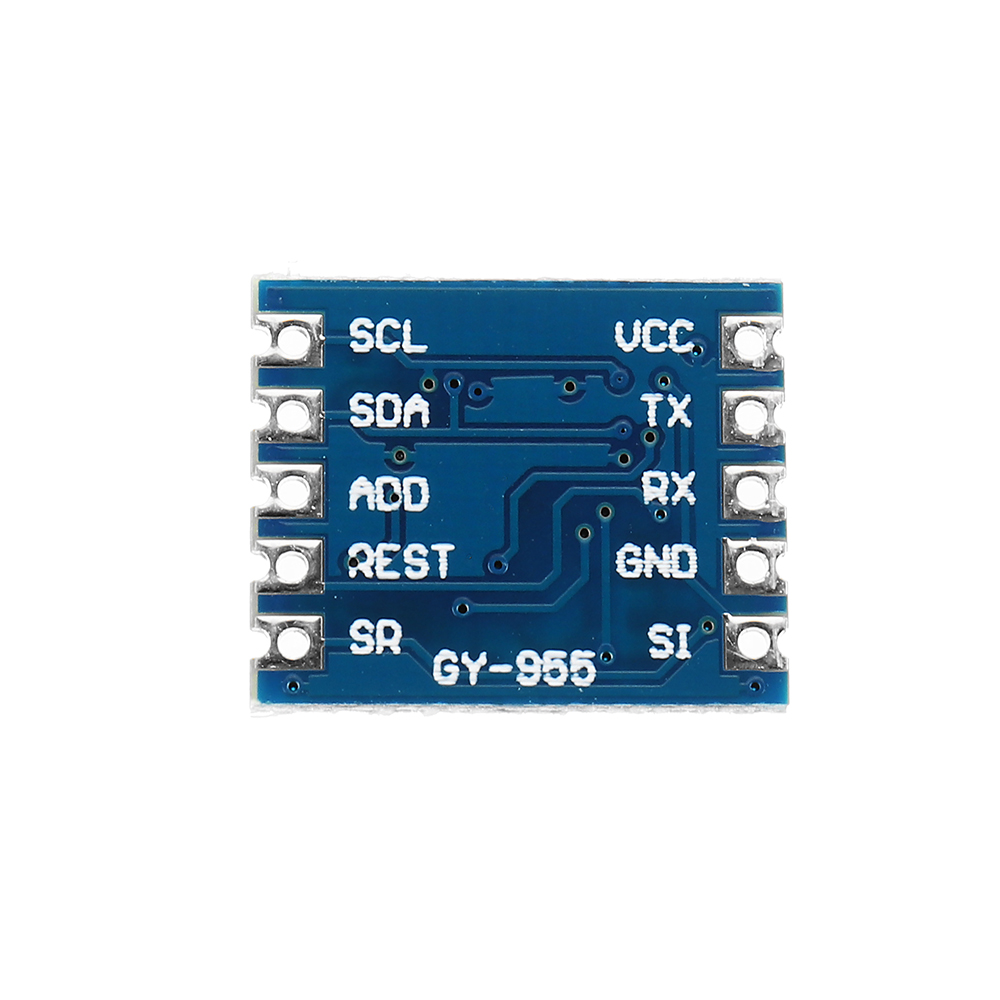

Pin Description:

VCC: Power supply + (3v-5v)
TX: Serial UART_TX (TTL level)
RX: Serial UART_RX (TTL level)
GND: Power ground
SI: Reserved, do not connect
SR: Reserved, do not connect
REST: BNO055 REST pin
ADD: BNO055 I2C address pin
SDA: BNO055 I2C data pin
SCL: BNO055 I2C clock pin

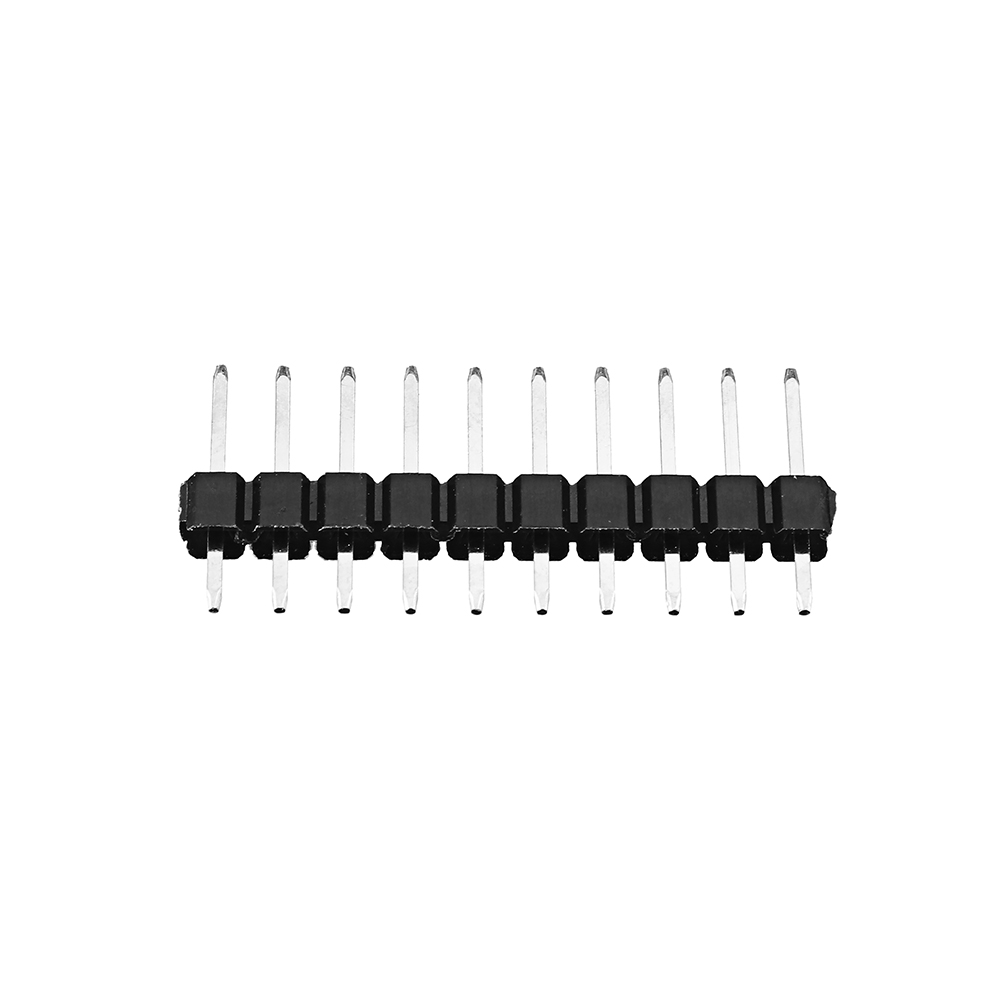

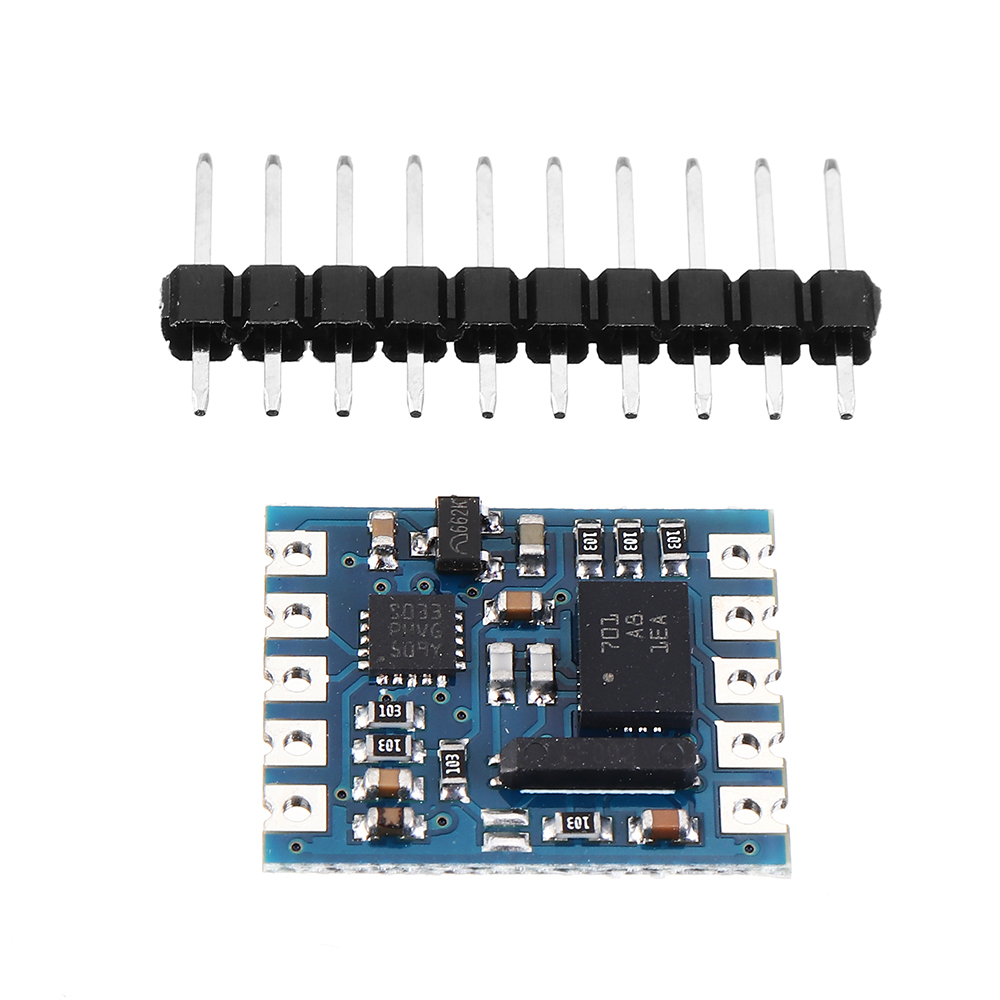

Package Included:

1 x GY-955 GY-BNO055 9DOF Sensor Angle Gyro Module







OR

Additional Information

SKU GI/BG/1465759
Weight 0.0050
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
