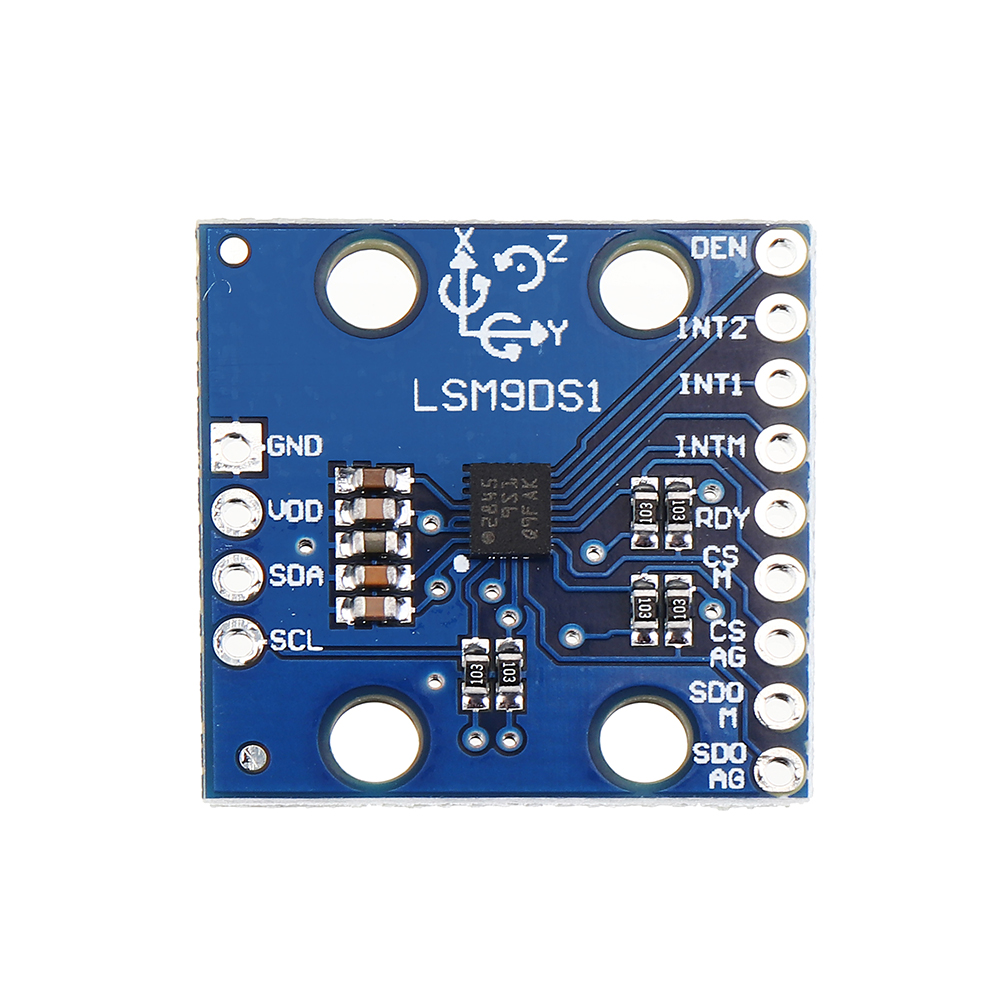

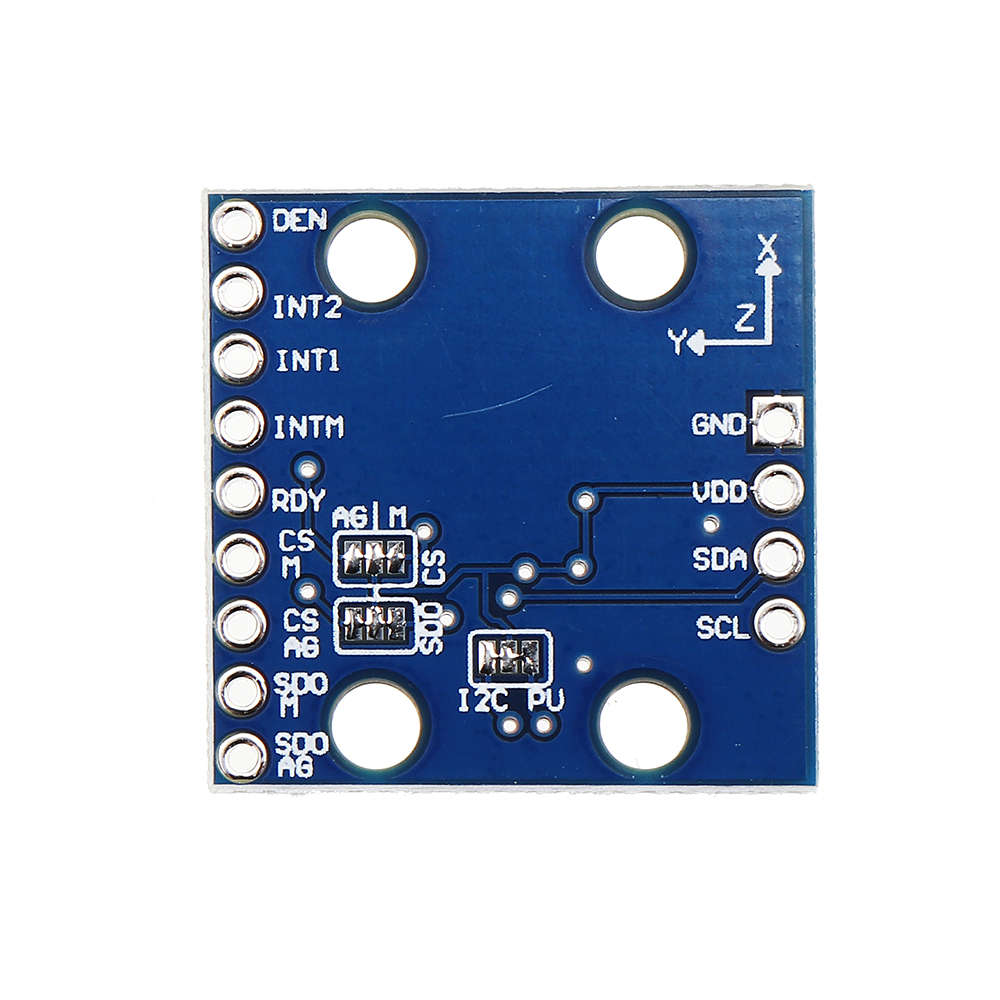

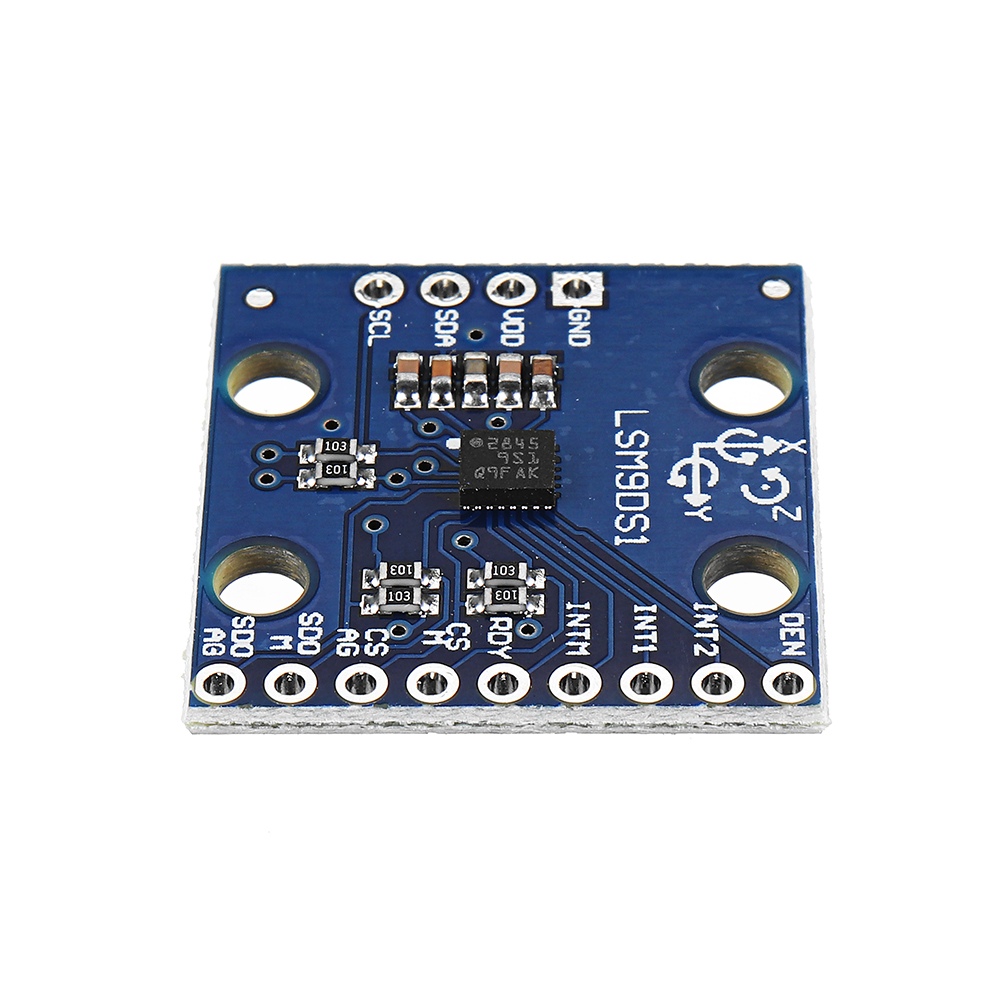

GY-LSM9DS 9 Axis Sensor Module Acceleration Gyro Magnetometer Inertial Measurement Accelerometer Unit IMU for Arduino

Availability: In stock

Regular Price: SGD36.00

Special Price SGD20.00

You Save: SGD16.00 (44%)

Quick Overview

More details click to download:  LSM9DS1

Description:

The LSM9DS1 is a system-in-package featuring a 3D digital linear acceleration sensor, a 3D digital angular rate sensor, and a 3D digital magnetic sensor.
The LSM9DS1 has a linear acceleration full scale of ±2g/±4g/±8/±16 g, a magnetic field full scale of ±4/±8/±12/±16 gauss and an angular rate of ±245/±500/±2000 dps.
The LSM9DS1 includes an I 2 C serial bus interface supporting standard and fast mode (100 kHz and 400 kHz) and an SPI serial
standard interface. Magnetic, accelerometer and gyroscope sensing
can be enabled or set in power-down mode separately for smart power management.
The LSM9DS1 is available in a plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range
from -40 °C to +85 °C.

Features:

• 3 acceleration channels, 3 angular rate
channels, 3 magnetic field channels
• ±2/±4/±8/±16 g linear acceleration full scale
• ±4/±8/±12/±16 gauss magnetic full scale
• ±245/±500/±2000 dps angular rate full scale
• 16-bit data output
• SPI / I 2 C serial interfaces
• Analog supply voltage 1.9 V to 3.6 V
• “Always-on” eco power mode down to 1.9 mA
• Programmable interrupt generators
• Embedded temperature sensor
• Embedded FIFO
• Position and detection functions
• Click/double-click recognition
• Intelligent power saving for handheld devices
• ECOPACK ® , RoHS and “Green” compliant

Applications:

• Indoor navigation
• Smart user interfaces
• Advanced gesture recognition
• Gaming and virtual reality input devices
• Display/map orientation and browsing

Package Included:

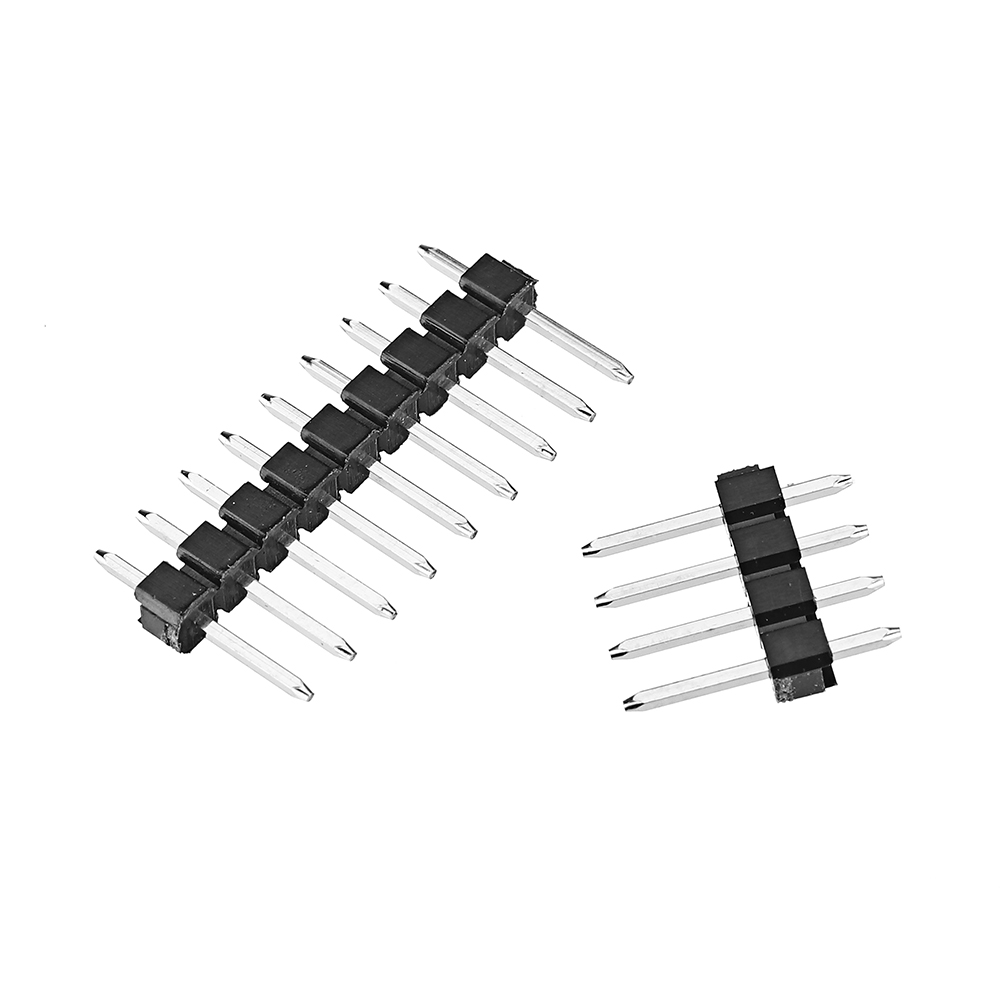

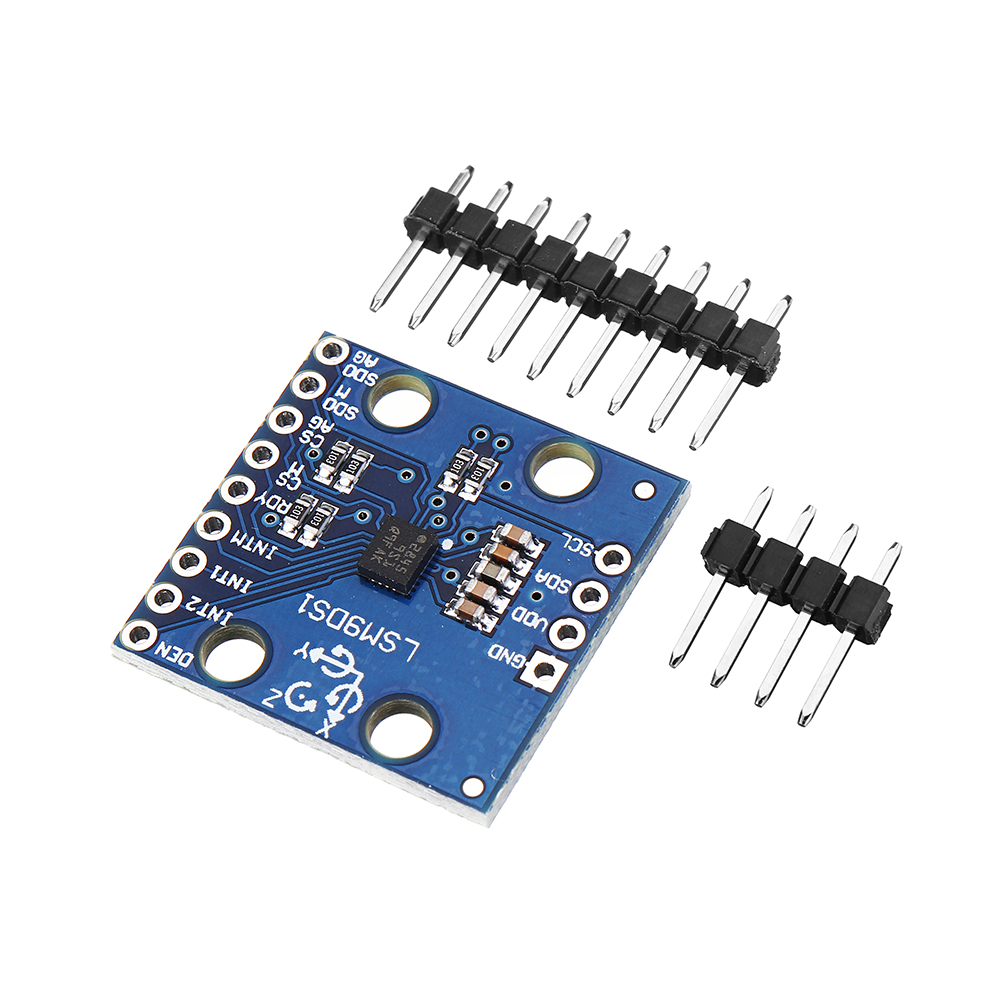

1 x GY-LSM9DS 9 Axis Sensor Module









OR

Additional Information

SKU GI/BG/1465052
Weight 0.0080
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
