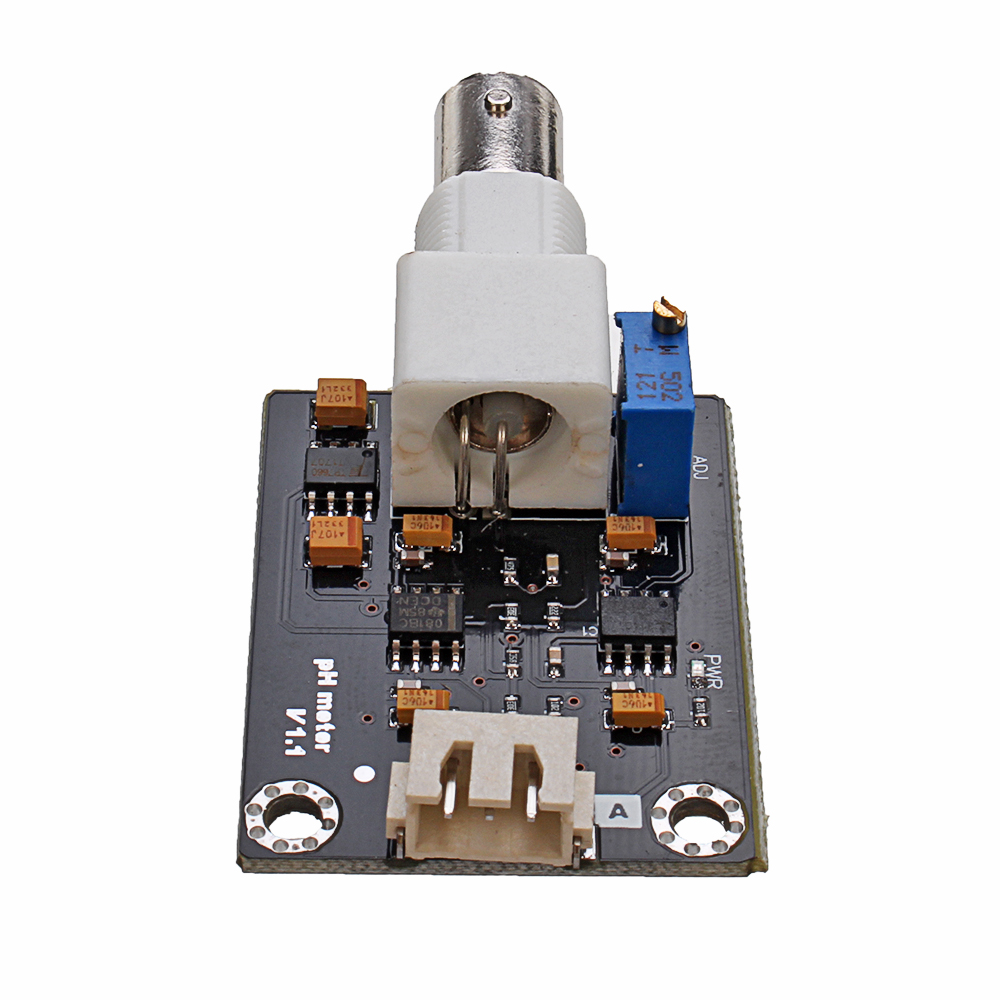

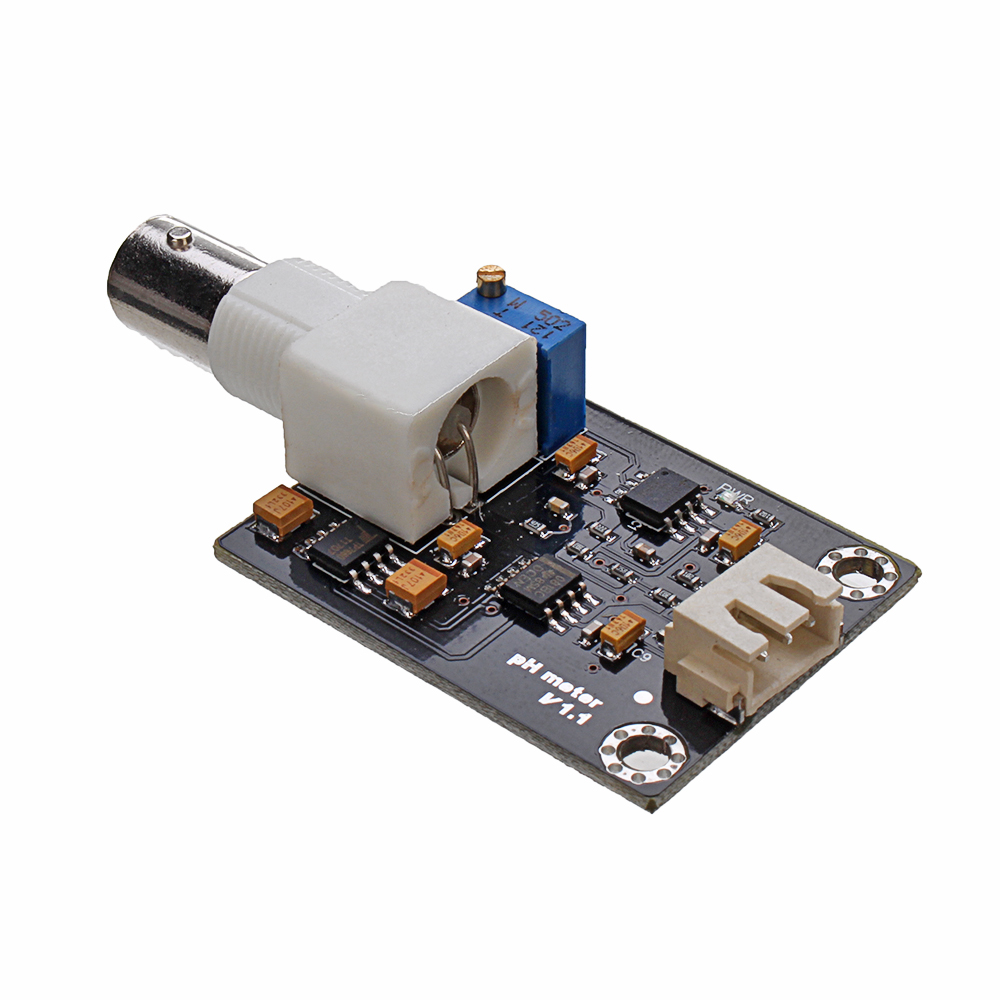

PH Sensor Module V1.1 + PH Probe For AVR 51 PH Shield with MSP430 Test Code Sensor

Availability: In stock

Regular Price: SGD92.00

Special Price SGD51.00

You Save: SGD41.00 (45%)

Quick Overview

Specification:

Module Power : 5.00V

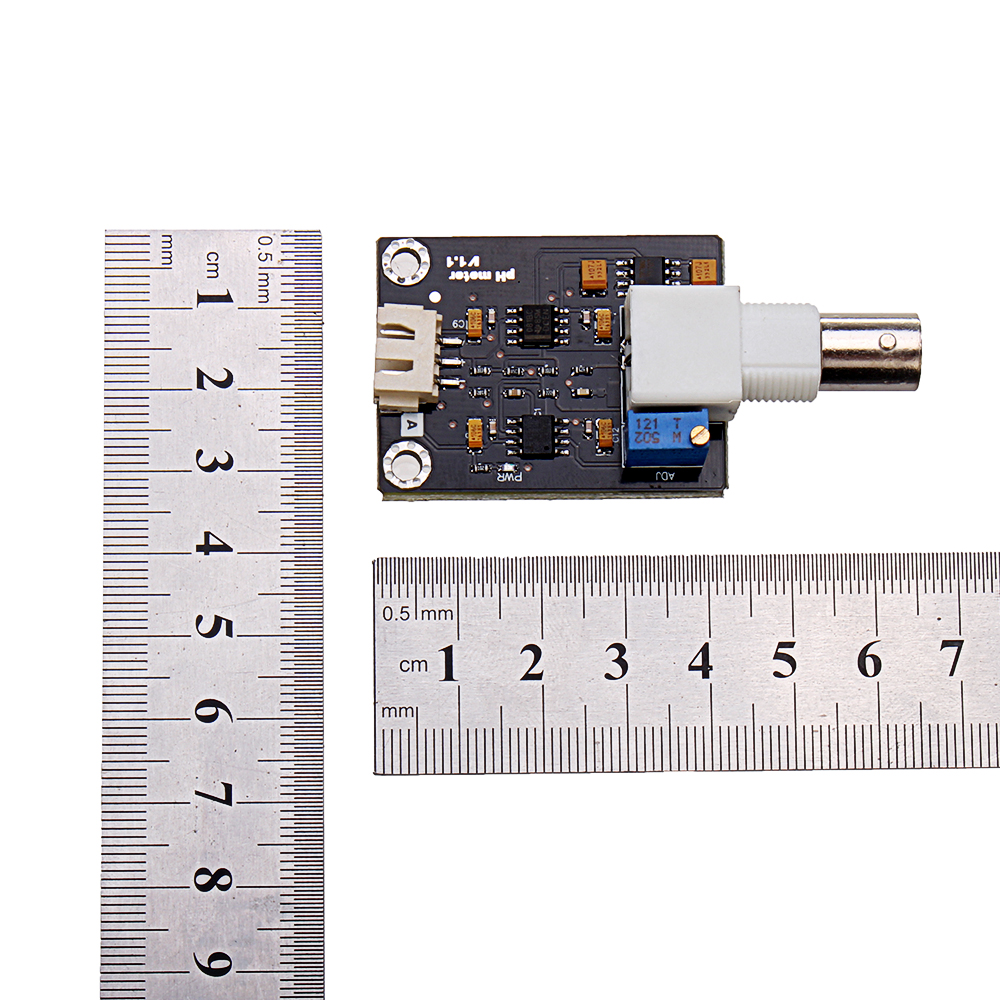

Module Size : 43 x 32mm
Measuring Range :0 - 14PH
Measuring Temperature: 0 - 60 °C
Accuracy : ± 0.1pH (25 °C)
Response Time : ≤ 1min

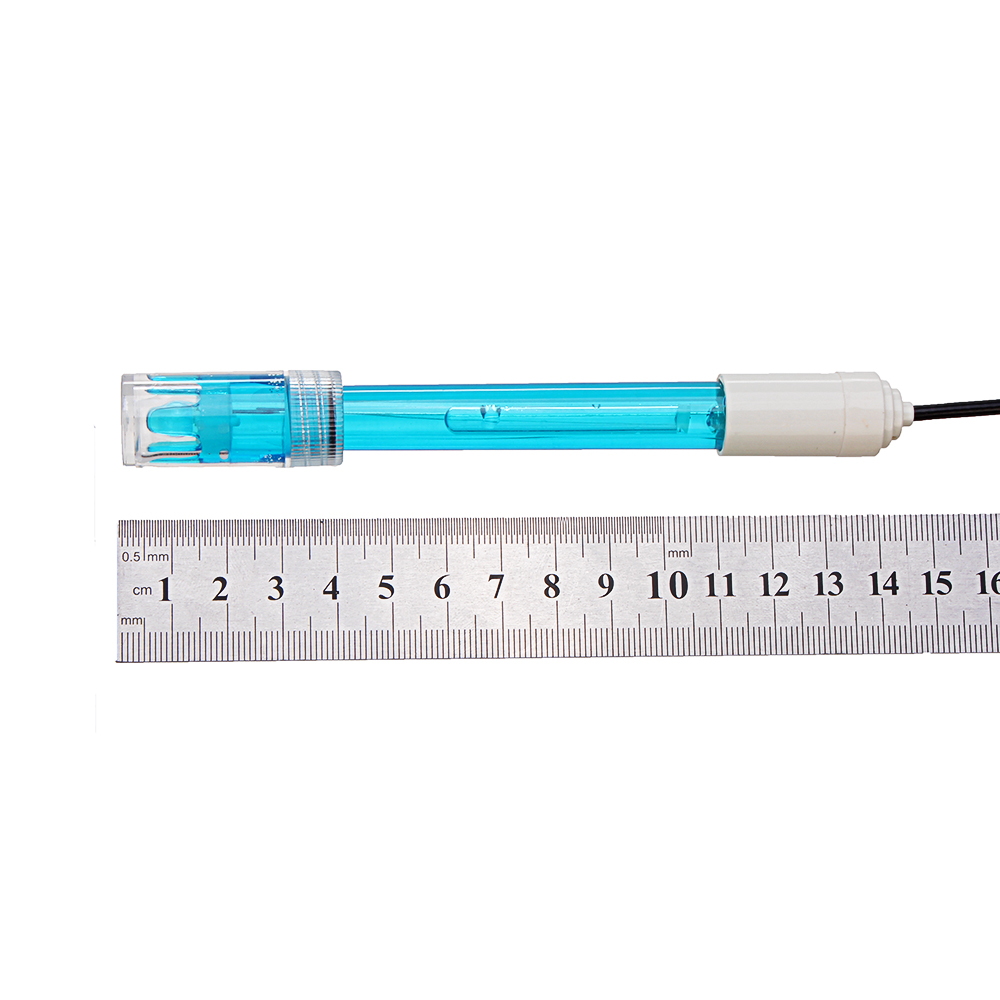

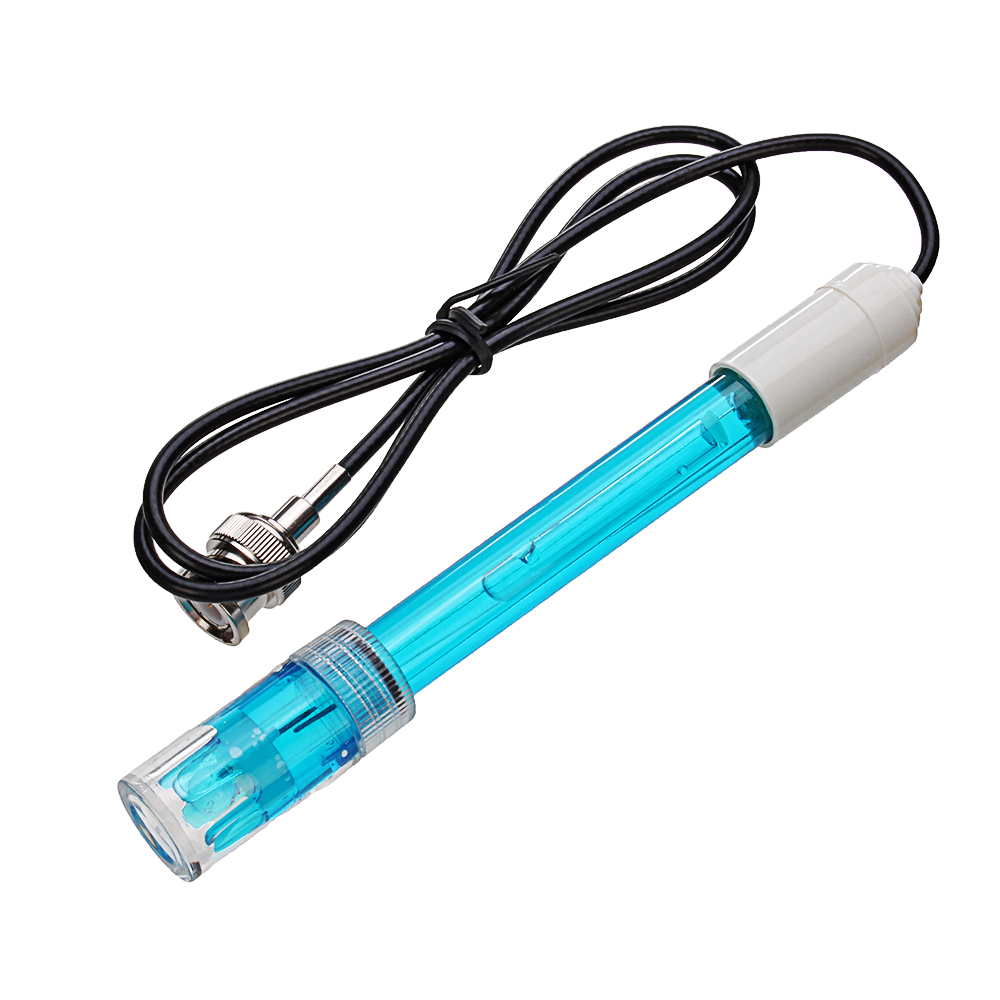

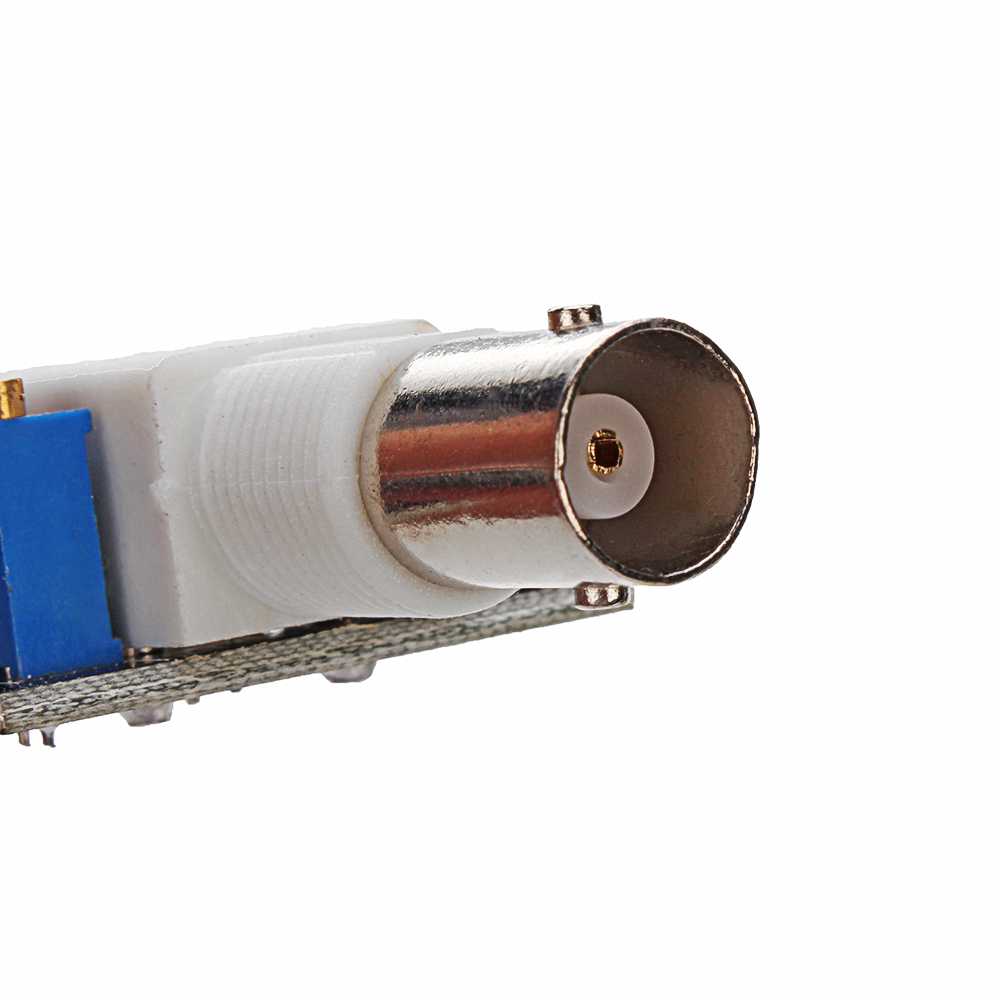

pH Sensor with BNC Connector

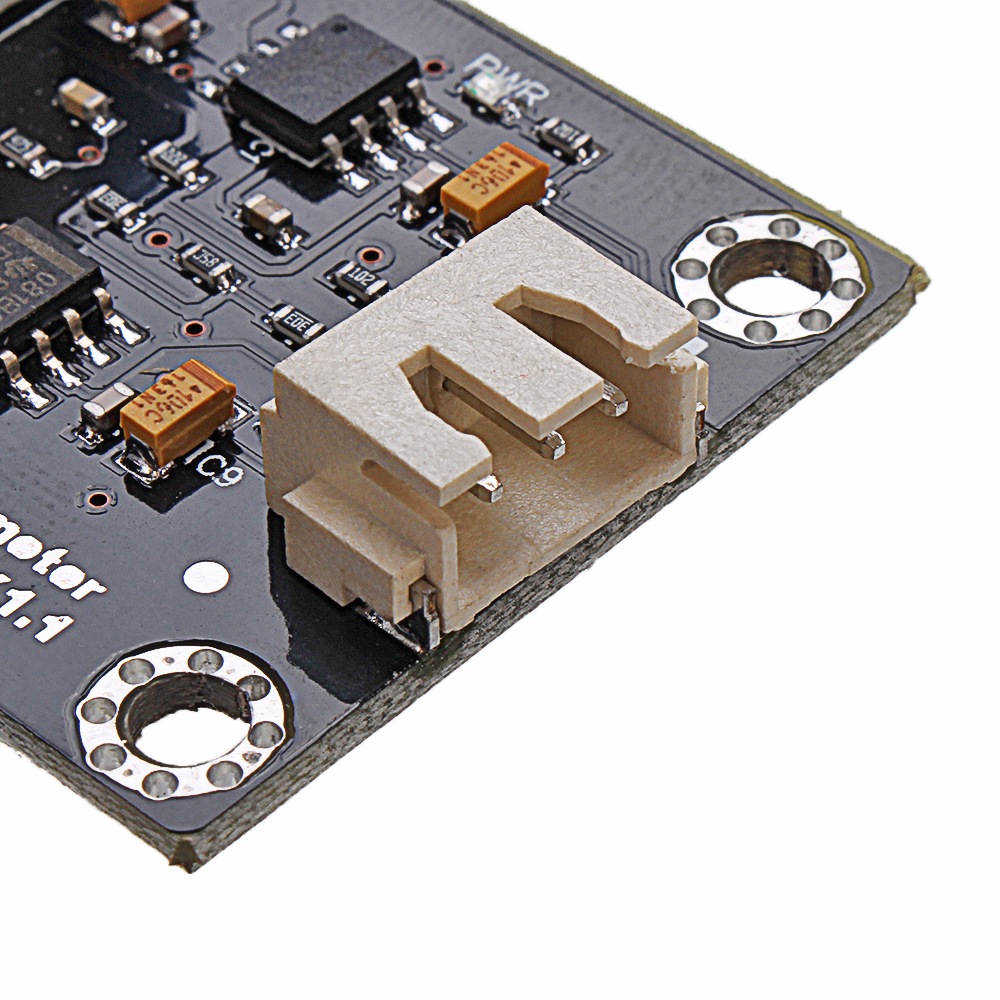

pH2.0 Interface ( 3 foot patch )

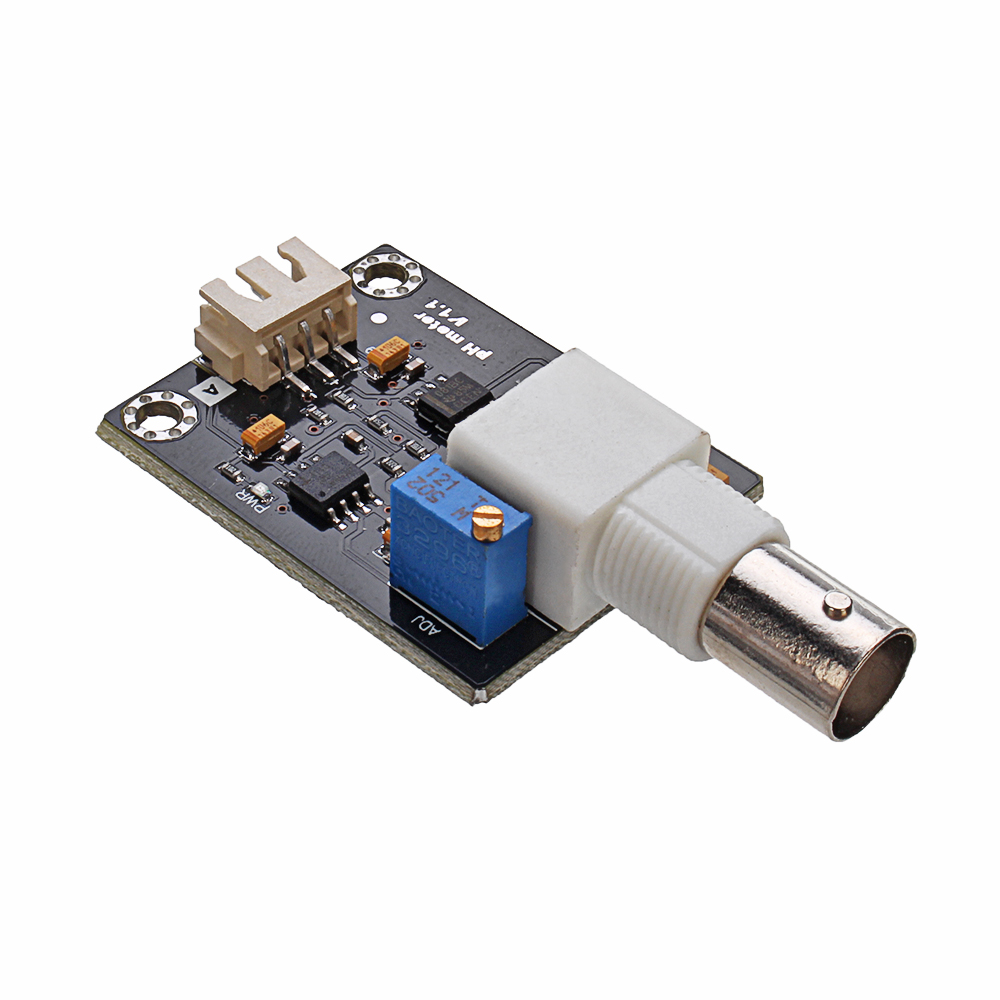

Gain Adjustment Potentiometer
Power Indicator LED

Package includes:

1 x PH Sensor Module
1 x Probe
1 x Cable


Arduino DEMO Code:

/*
# This sample codes is for testing the pH meter V1.0.
# Editor : YouYou
# Date : 2013.10.21
# Ver : 0.1
# Product: pH meter
# SKU : SEN0161
*/

#define SensorPin 0 //pH meter Analog output to Arduino Analog Input 0
#define Offset 0.00 //deviation compensate
unsigned long int avgValue; //Store the average value of the sensor feedback
void setup()
{
pinMode(13,OUTPUT);
Serial.begin(9600);
Serial.println("Ready"); //Test the serial monitor
}
void loop()
{
int buf[10]; //buffer for read analog
for(int i=0;i<10;i++) //Get 10 sample value from the sensor for smooth the value
{
buf[i]=analogRead(SensorPin);
delay(10);
}
for(int i=0;i<9;i++) //sort the analog from small to large
{
for(int j=i+1;j<10;j++)
{
if(buf[i]>buf[j])
{
int temp=buf[i];
buf[i]=buf[j];
buf[j]=temp;
}
}
}
avgValue=0;
for(int i=2;i<8;i++) //take the average value of 6 center sample
avgValue+=buf[i];
float phValue=(float)avgValue*5.0/1024/6; //convert the analog into millivolt
phValue=3.5*phValue+Offset; //convert the millivolt into pH value
Serial.print(" pH:");
Serial.print(phValue,2);
Serial.println(" ");
digitalWrite(13, HIGH);
delay(800);
digitalWrite(13, LOW);
}
















OR
