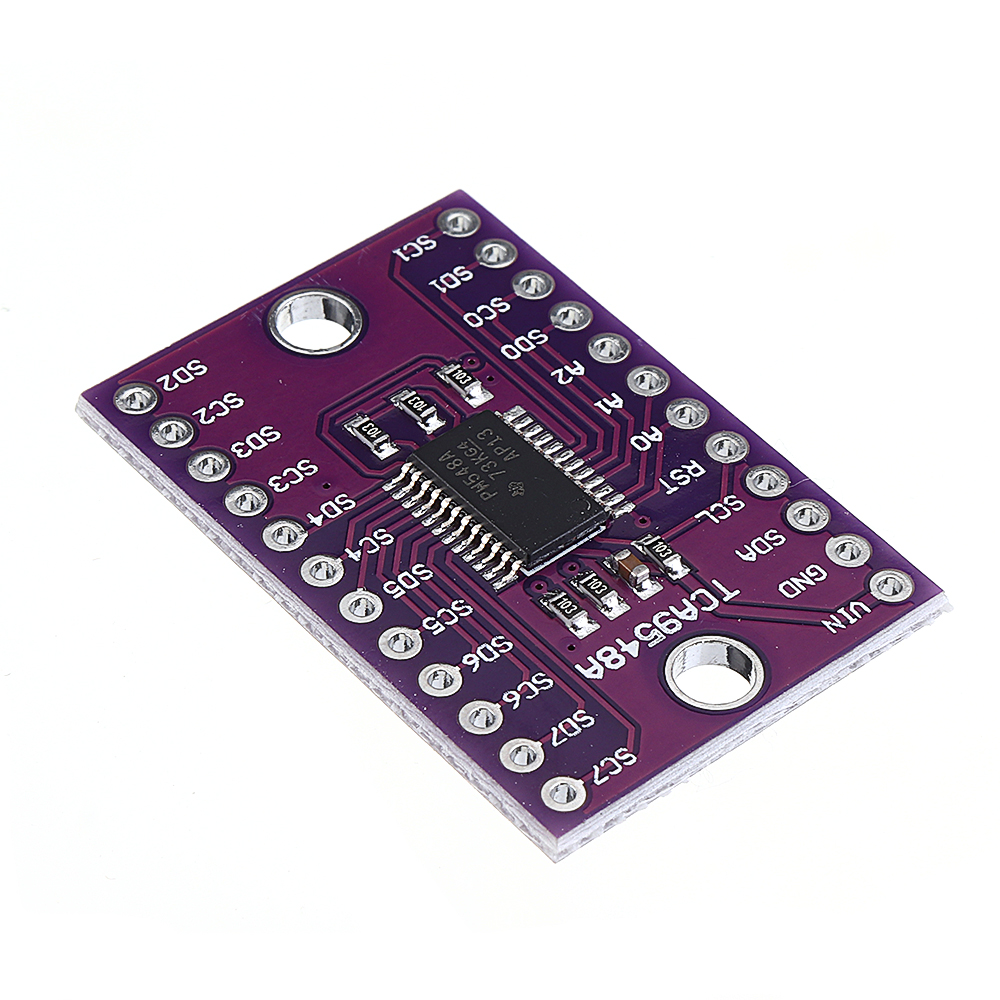

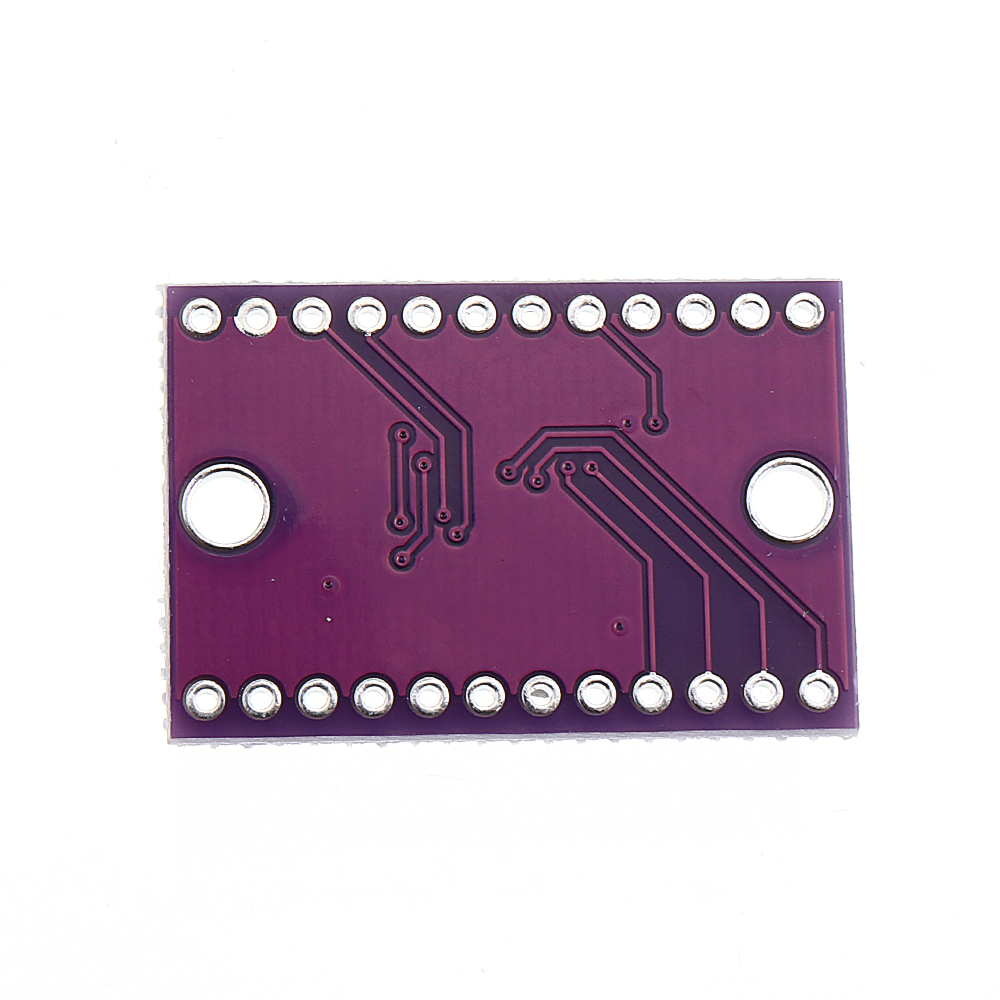

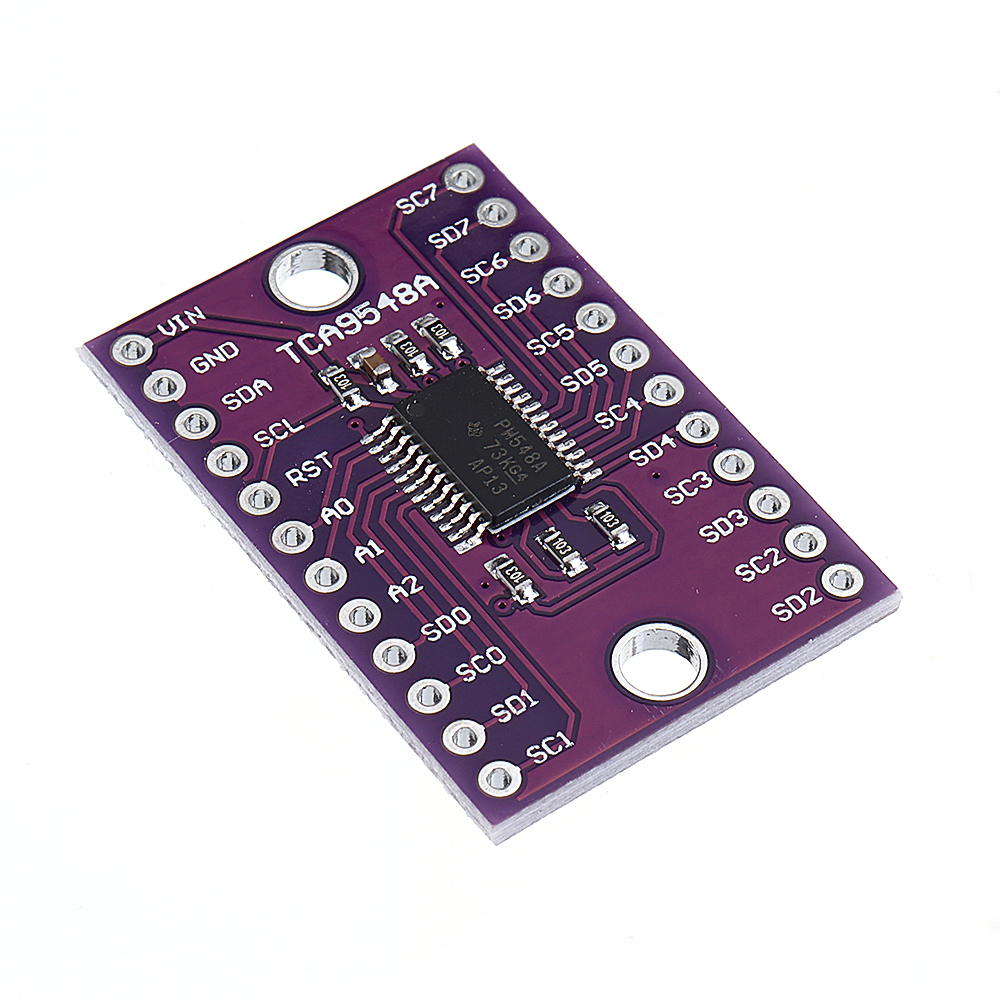

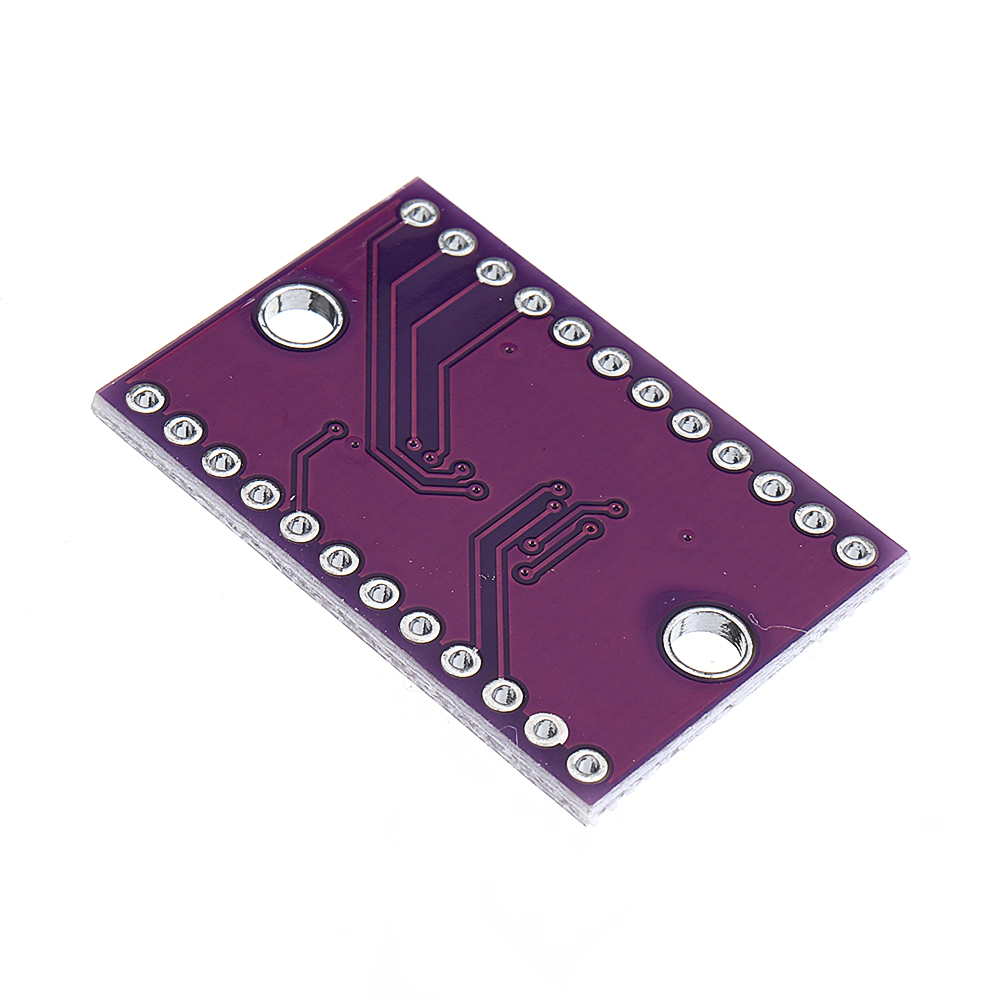

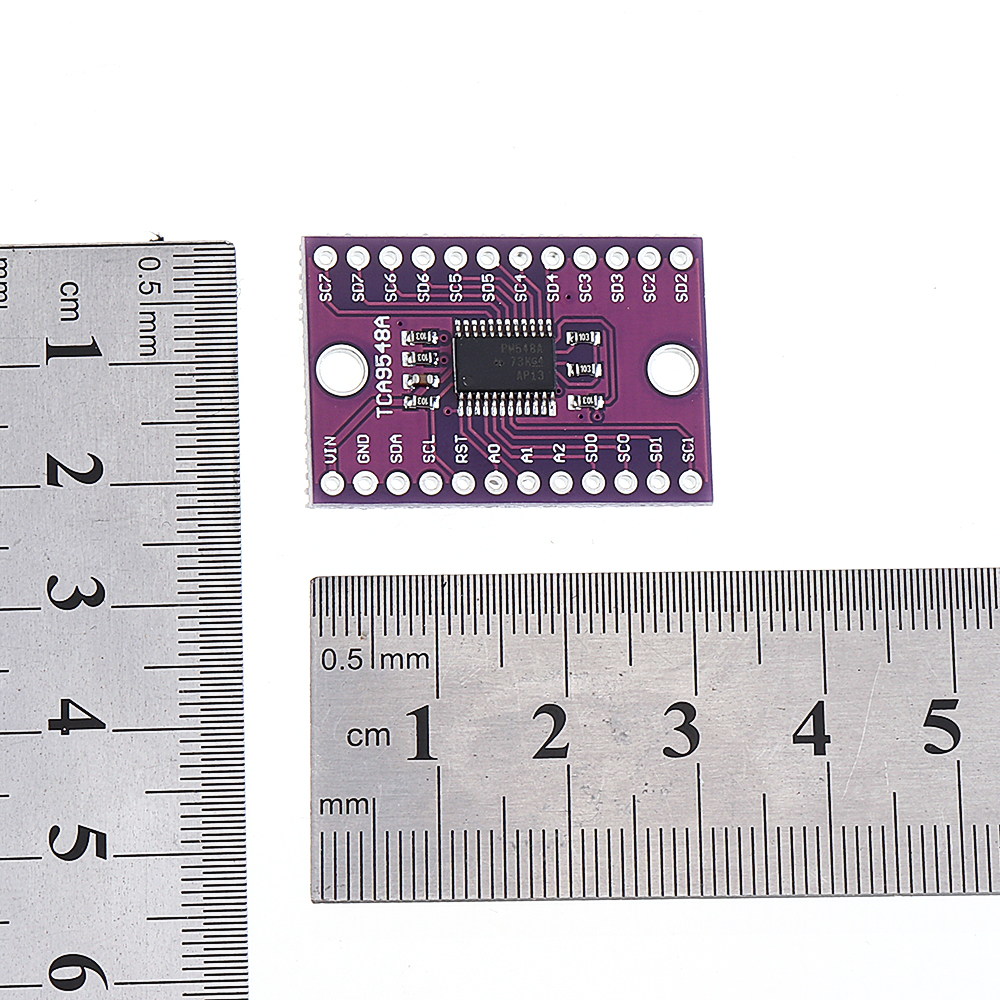

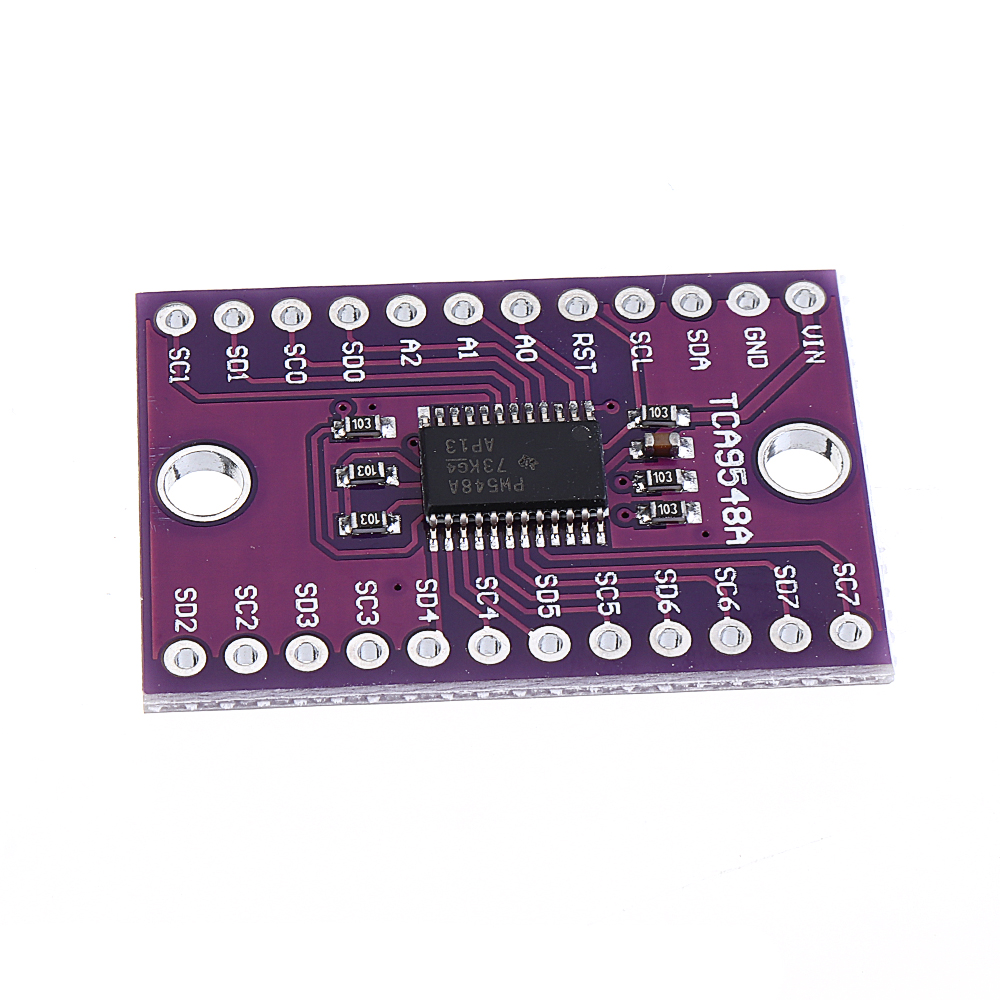

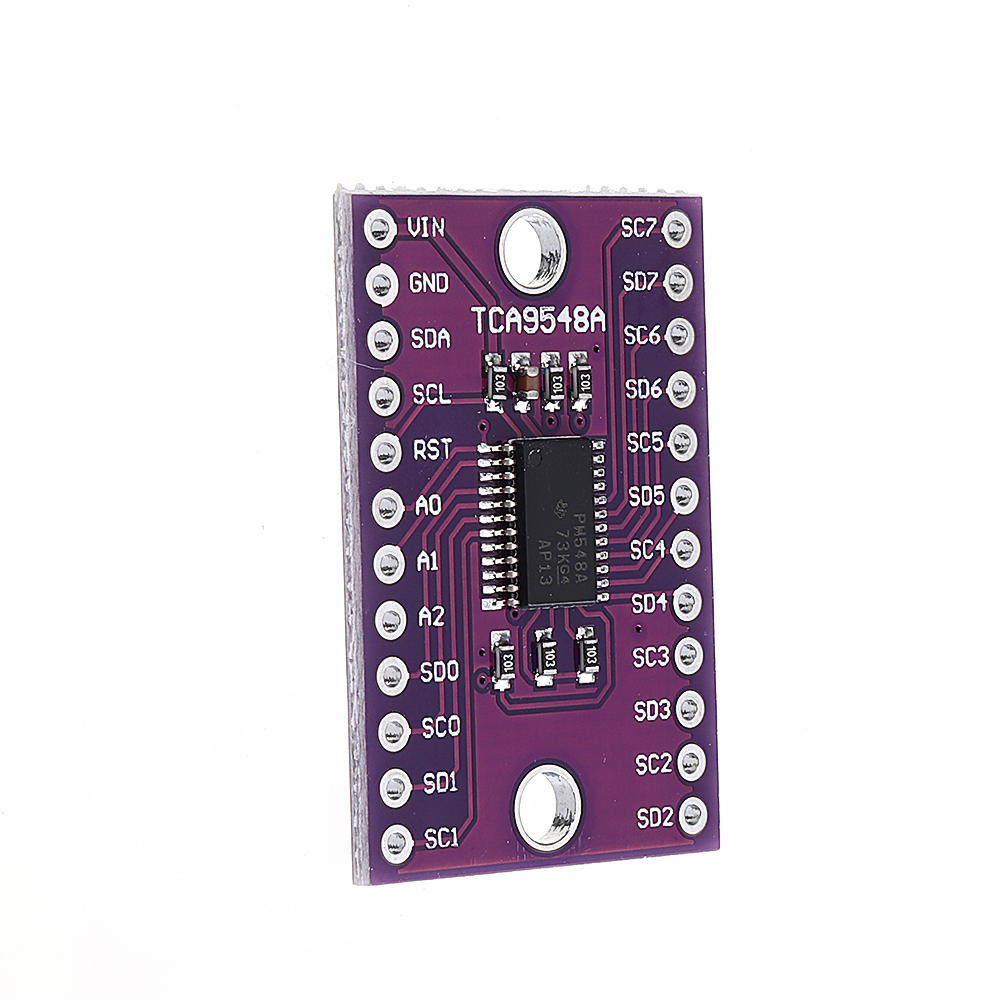

TCA9548A 1-to-8 I2C 8-way 8CH Channel Multi-channel Expansion Board IIC Module Development Board

Availability: In stock

Regular Price: SGD13.00

Special Price SGD7.00

You Save: SGD6.00 (46%)

Quick Overview

Feature:

You just found the perfect I2C sensor, and you want to wire up two or three or more of them to your when you realize "Uh oh, this chip has a fixed I2C address, and from what I know about I2C, you cannot have two devices with the same address on the same SDA/SCL pins!" Are you out of luck? You would be, if you didn't have this ultra-cool CJMCU-9548 1-to-8 I2C multiplexer!

Finally, a way to get up to 8 same-address I2C devices hooked up to one microcontroller - this multiplexer acts as a gatekeeper, shuttling the com mands to the selected set of I2C pins with your com mand.

Using it is fairly straight-forward: the multiplexer itself is on I2C address 0x70 (but can be adjusted from 0x70 to 0x77) and you simply write a single byte with the desired multiplexed output number to that port, and bam - any future I2C packets will get sent to that port. you could have 8 of these multiplexers on each of 0x70-0x77 addresses in order to control 64 of the same-I2C-addressed-part.

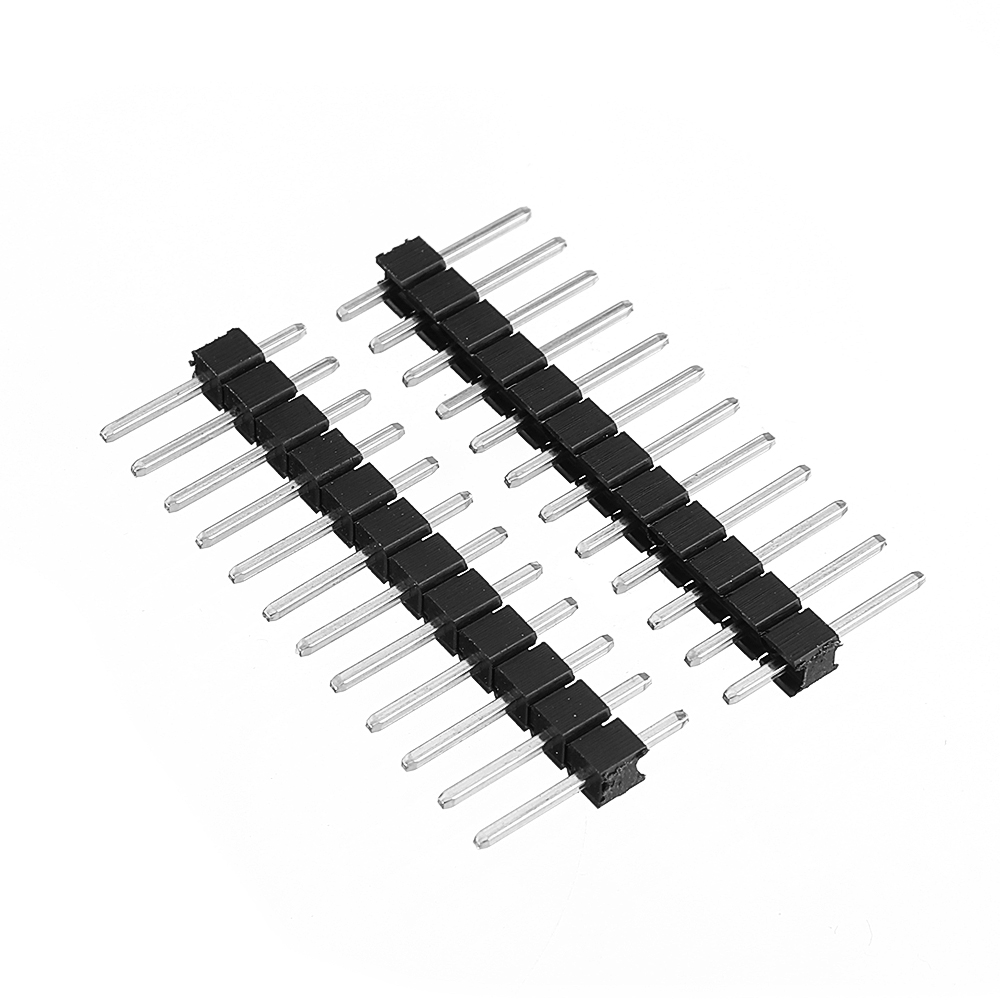

We put this nice chip on a break out for you so you can use it on a breadboard with capacitors, and pullups and pulldowns to make usage a snap. Some header is required and once soldered in you can plug it into a solderless-breadboard. The chip itself is 3V and 5V compliant so you can use it with any logic level.

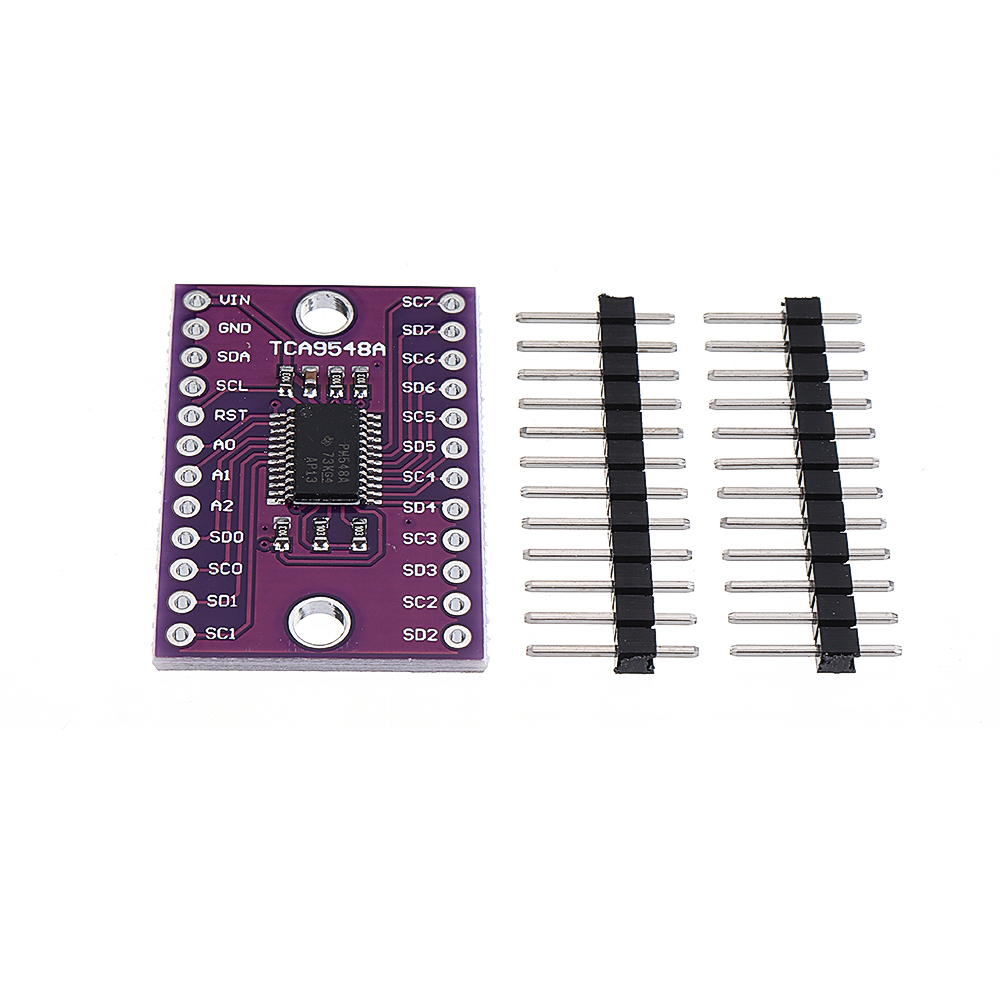

Package includes:

1 x Expansion Board


















OR

Additional Information

SKU GI/BG/1498811
Weight 0.0070
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
