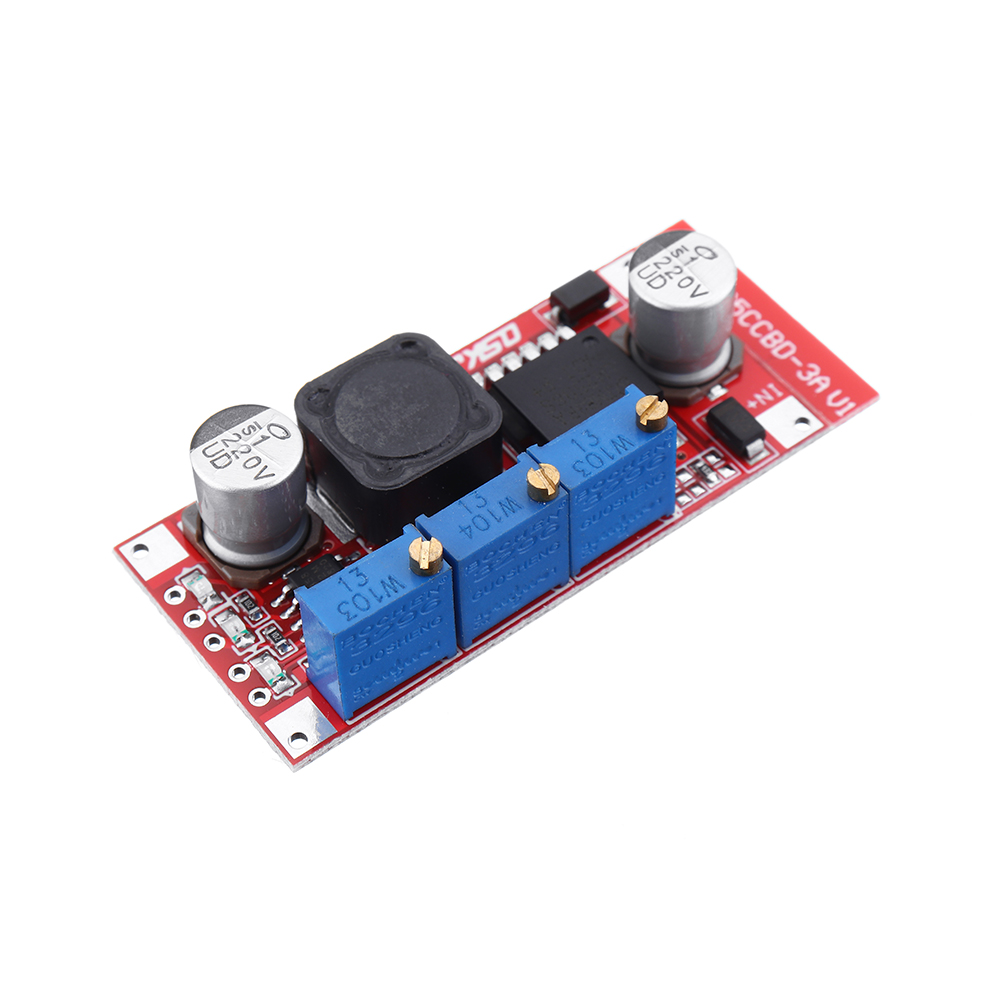

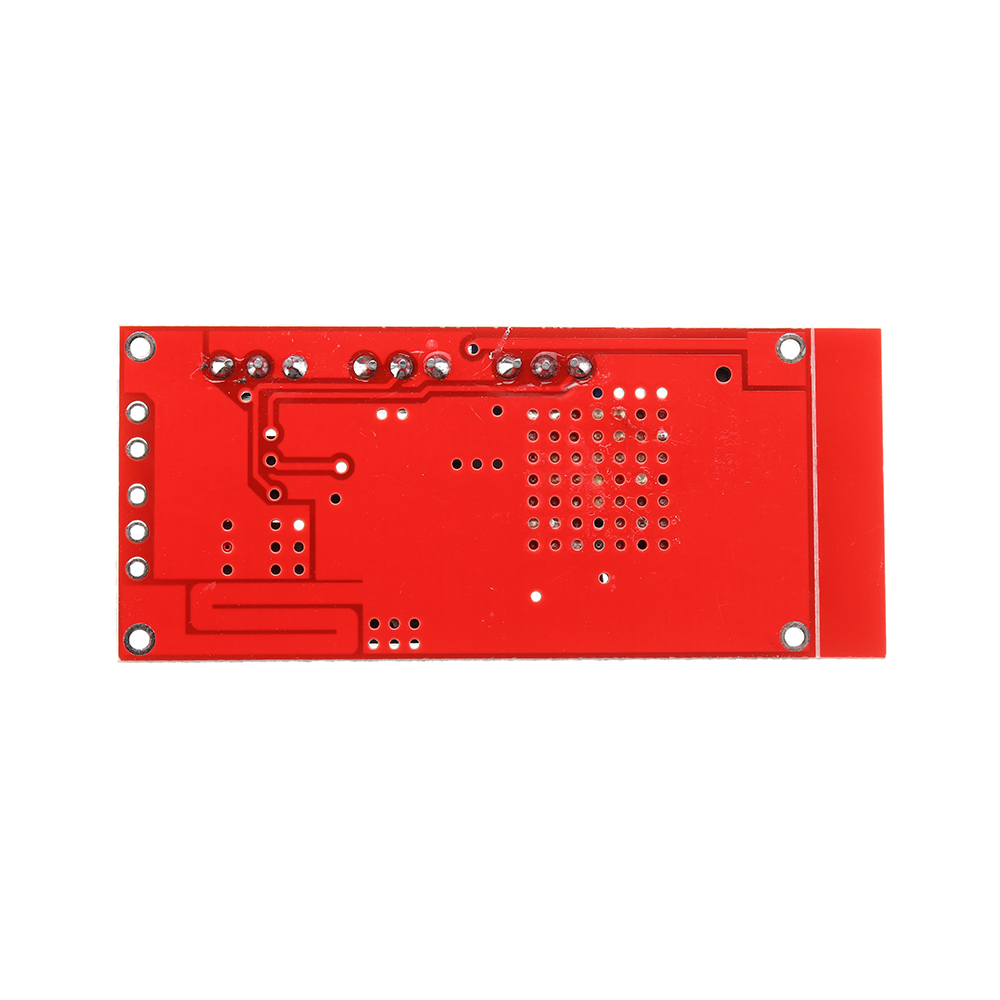

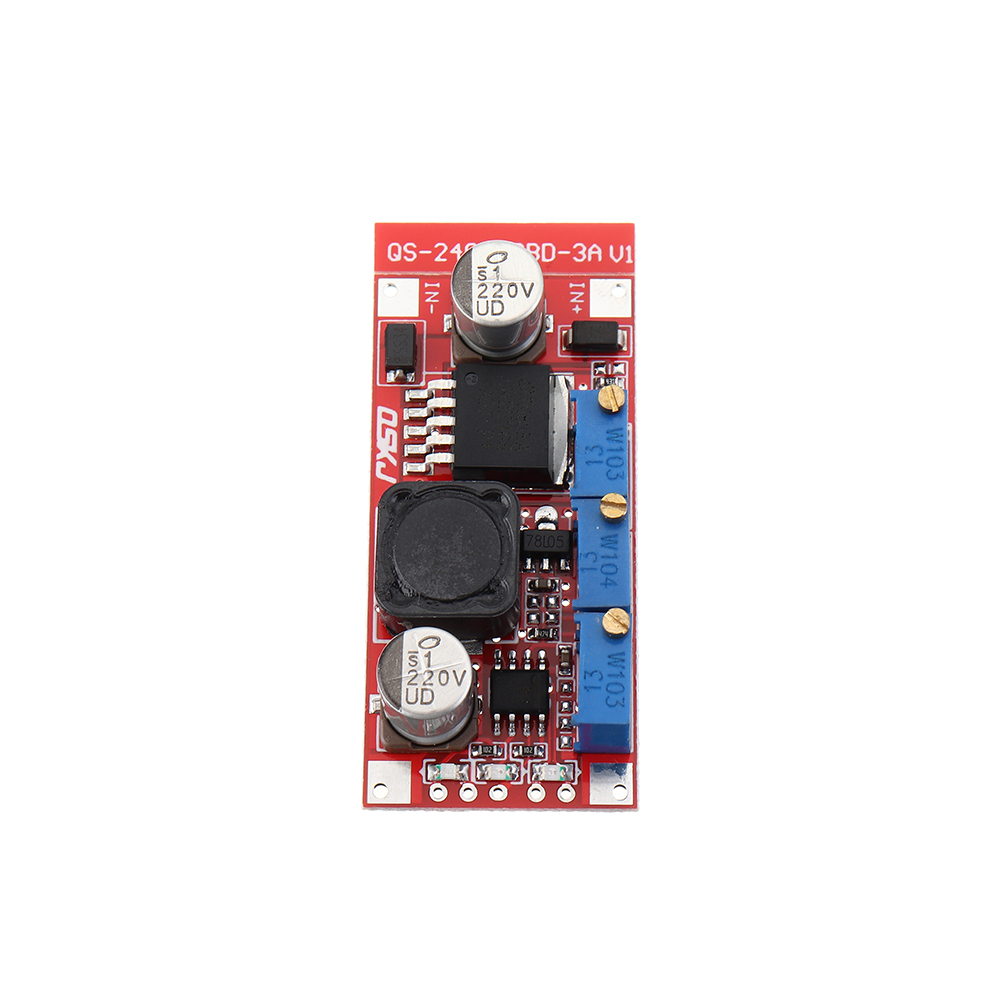

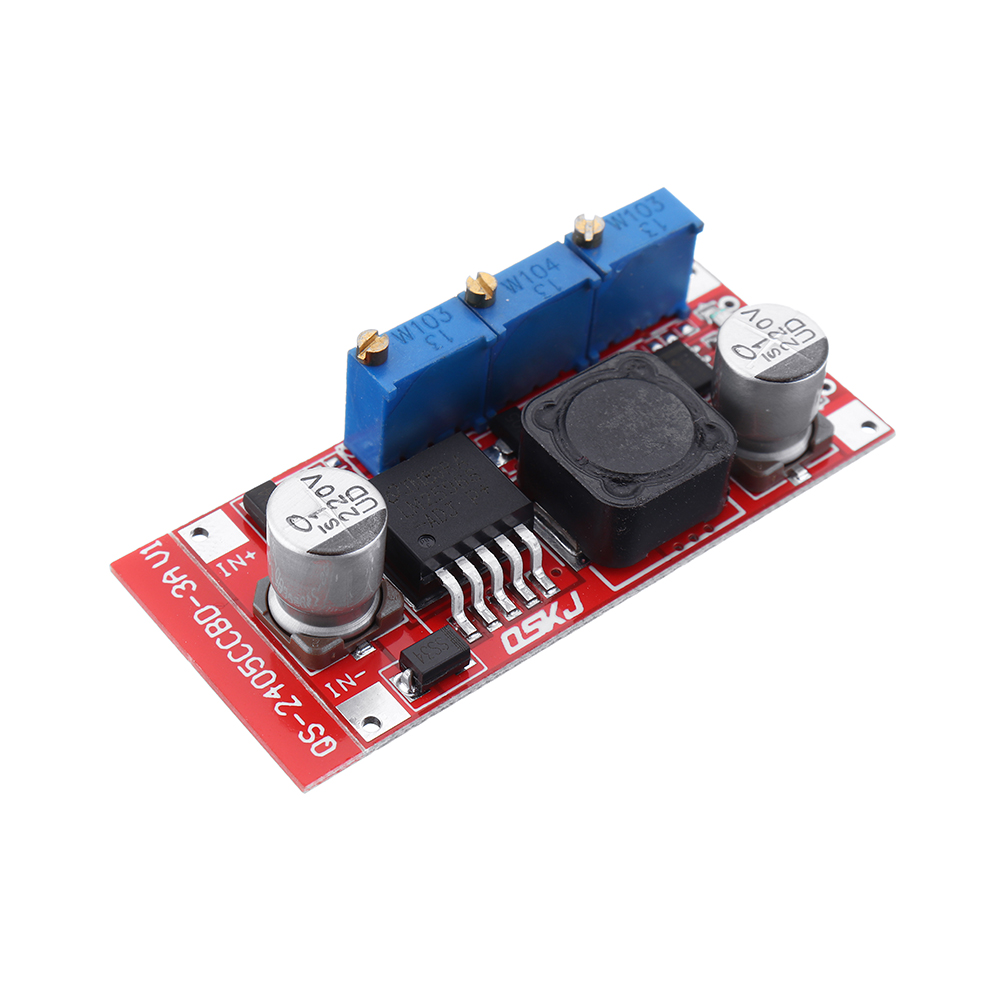

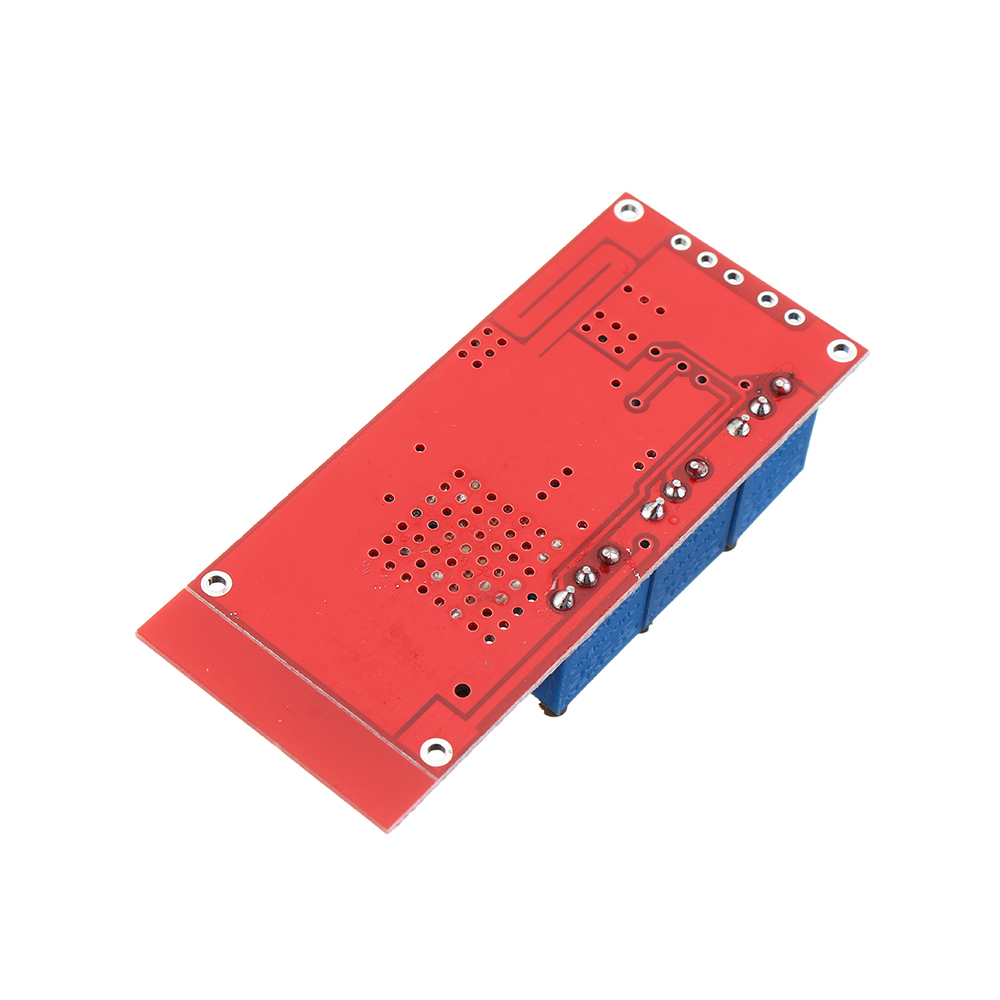

DC-DC 7-35V to 1.25-30V CC CV LED Driver Buck Converter Power Supply Charging Step Down Module

Availability: In stock

Regular Price: SGD11.00

Special Price SGD6.00

You Save: SGD5.00 (45%)

Quick Overview

Specifications:

Input voltage: 7-35V
Output voltage: 1.25-30V
Output Current: Max 3A ( If more than 15W, please install the heat sink, this item do not include heat sink)
Constant current range :0-3A (adjustable)
Min Voltage pressure: 2V
Output power: natural cooling 15W
Conversion efficiency: 85% (the higher the output voltage, the higher the efficiency
Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 °c, please lower power use, or to enhance heat dissipation)
Full load temperature rise: 45°c
No-load Current: typical 10mA (12V to 4.2V)
Load Regulation: ± 1%
Voltage Regulation: ± 0.5%
Current Accuracy and temperature: Actual Testing, Temperature changes from 20 degrees To 100 degrees, Constant current value change Less than 1% (constant current value 1A)
Dynamic response speed: 5% 200uS
Potentiometer adjustment direction:Clockwise (increase),Counterclockwise (decrease)
Indicator LED: Charging LED Red, Full Charge LED Green
Output Short-circuit Protection:YES
Input Reverse Polarity Protection:YES
Output Prevent Countercurrent: YES

Battery Charging Method:

1. Make sure the recharge battery float voltage and charge current, input voltage of the module.
2. adjust constant voltage regulator, the output voltage about 3V.
3. With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current gets a predetermined charge current value;
4. Adjust Constant regulator allows Output voltage gets the float voltage;
5. connected to the battery, try charging.
(1,2,3,4 step input connect power, output do not connect battery.)

LED Constant Current Driver Usage:

1. Make sure LED current and the maximum operating voltage;
2. adjust constant voltage regulator, the output voltage about 3V.
3. With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current gets a predetermined LED working current value;
4. Adjust Constant regulator allows Output voltage get LED maximum working voltage;
5. Connected to the LED, test.
(1,2,3,4 take steps input connect power, output do not connected LED.)

Applications:

Battery charger (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind generators.
Solar Panel, Wind generator voltage regulator, Car Power Supply.

Package Includes:

1 x DC-DC 7-35V to 1.25-30V Converter Power Supply Module









OR

Additional Information

SKU GI/BG/1510482
Weight 0.0130
Last Update 20-August-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
