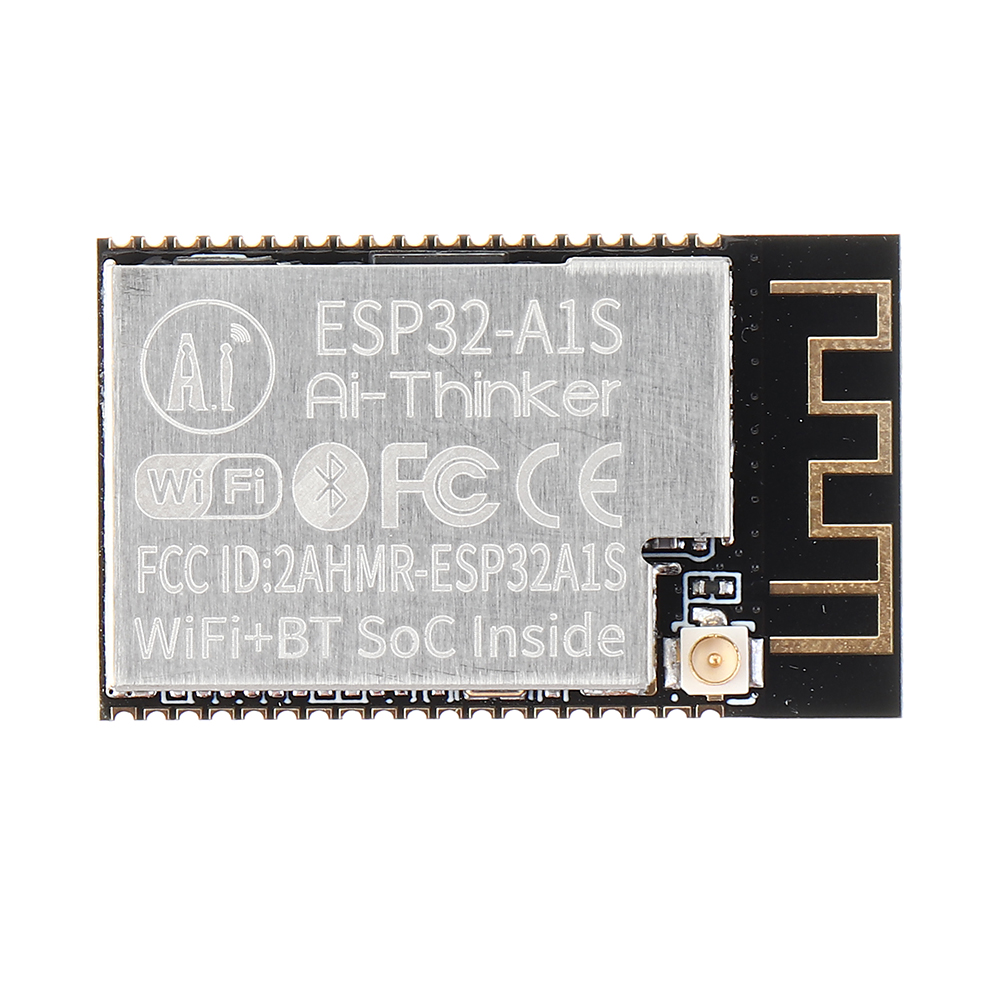

ESP32-A1S WiFi Module ESP32 Serial to WiFi Audio Module

Availability: In stock

Regular Price: SGD20.00

Special Price SGD11.00

You Save: SGD9.00 (45%)

Quick Overview

Description:

ESP32-A1S module is a small-volume multi-function audio module. It adopts ESP32 with dual-core processor as the main control. The main frequency is up to 600DMIPS. The module is internally equipped with 4M PSRAM and CodeC audio processing chip, which can be widely used. Networked occasions. The module is packaged in SMD and can be directly attached to the backplane for quick production. It provides customers with a highly reliable connection method, which is especially suitable for modern, large-scale, low-cost production methods. Support for a variety of peripherals, with a small number of peripheral devices to achieve different audio solutions.
The module supports cloud platform access, users can easily access Amazon or Baidu voice recognition service, and accelerate the development process of Bluetooth + Wi-Fi dual-mode audio solution. Support a variety of mainstream compression and lossless audio formats, including M4A, AAC, FLAC, OGG, OPUS, MP3 and so on.

Features:

The main chip uses a low-power dual-core 32-bit CPU with a frequency of up to 240MHz and a computing power of up to 600DMIPS.
Built-in CodeC audio decoder chip for local playback of music and recording
Supports two MIC inputs and Linein mode inputs
Support for headphones and speaker output
Built-in 520KB SRAM+ 4M PSRAM, default 32Mbit SPI Flash
Support SoftAP and Station mode
Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
Support UART/SPI/I2C/I2S/PWM/ADC/DAC, etc.
Support for firmware upgrade (FOTA)
Antenna supports on-board antenna or IPEX block output
Supports a variety of mainstream compression and lossless audio formats, including M4A, AAC, FLAC, OGG, OPUS, MP3, WAV, etc.

Package Included:

1 x ESP32-A1S WiFi Module









OR

Additional Information

SKU GI/BG/1503940
Weight 0.0190
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
