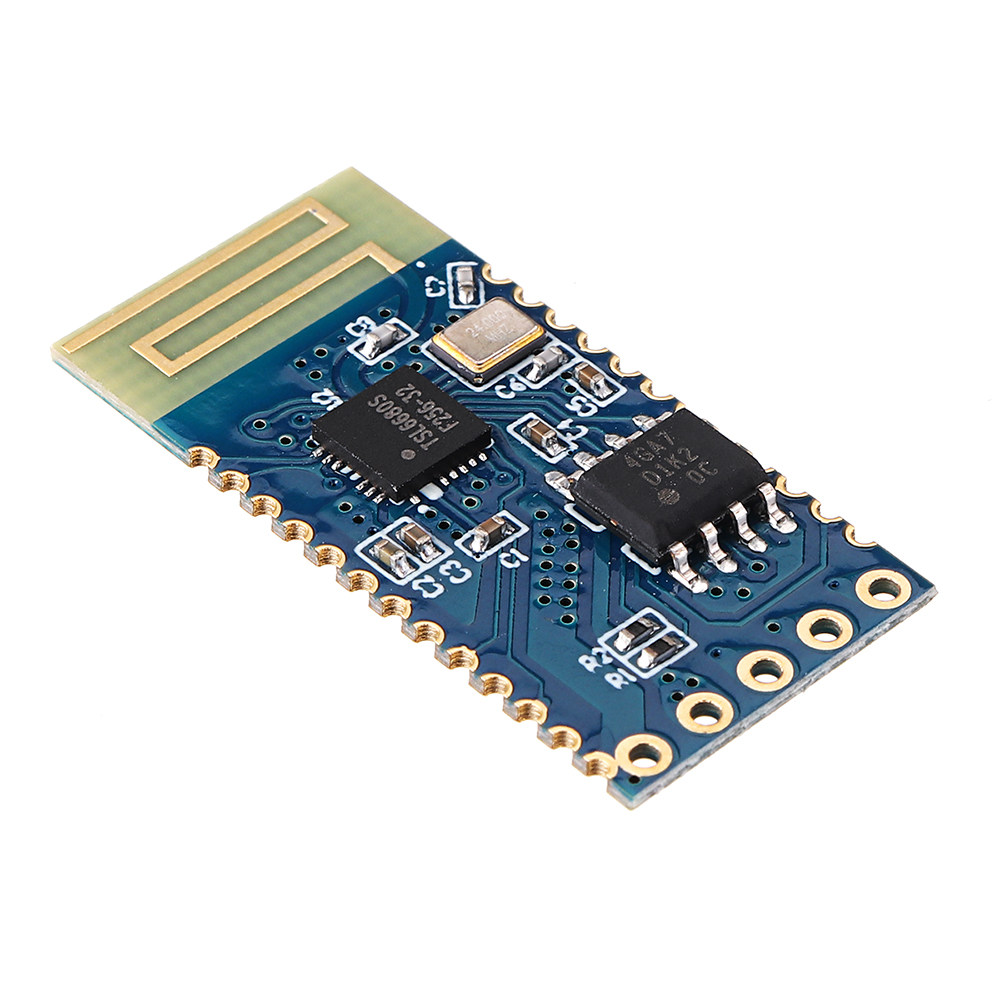

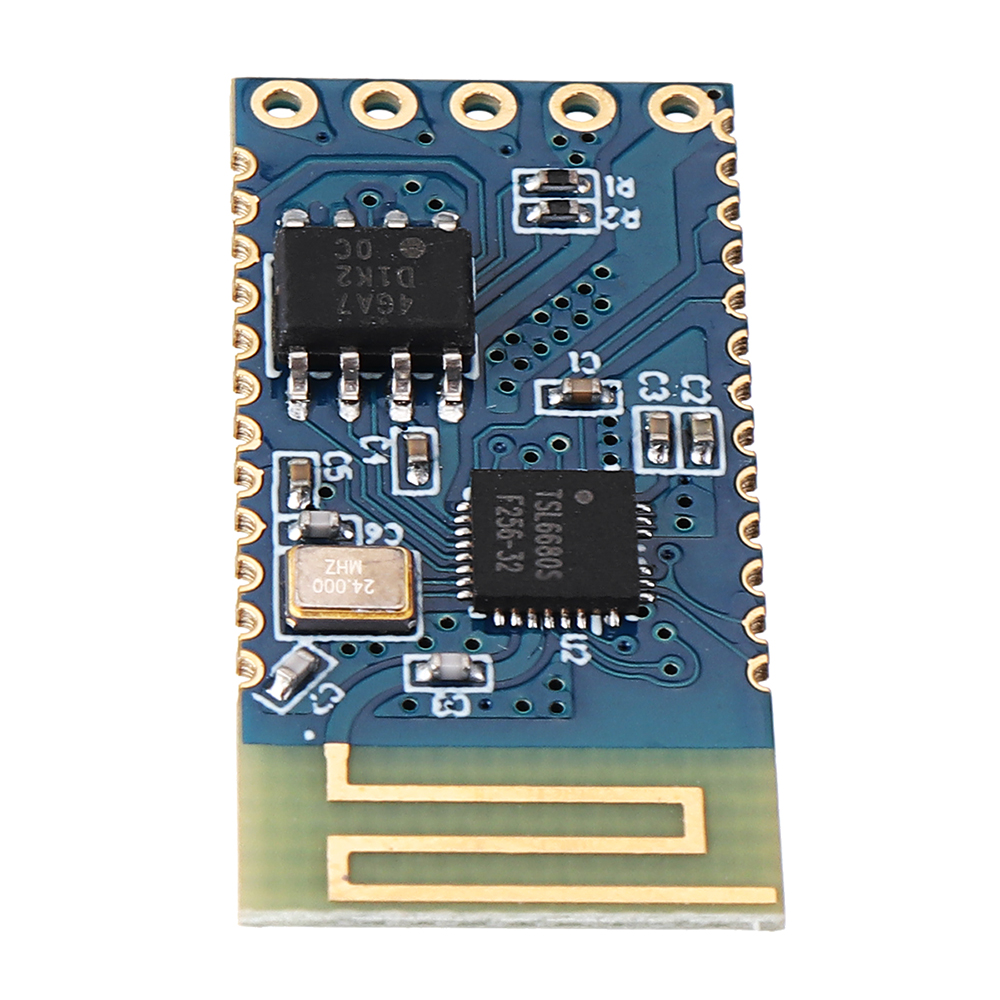

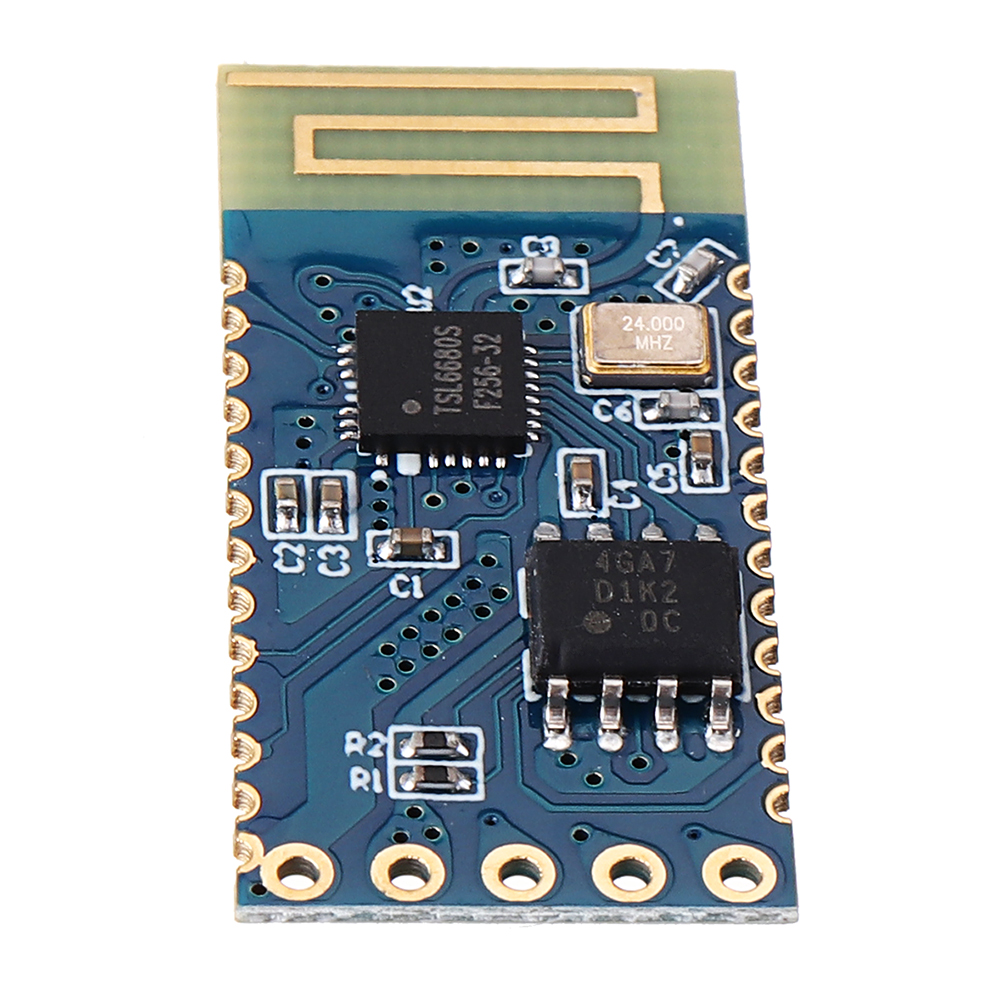

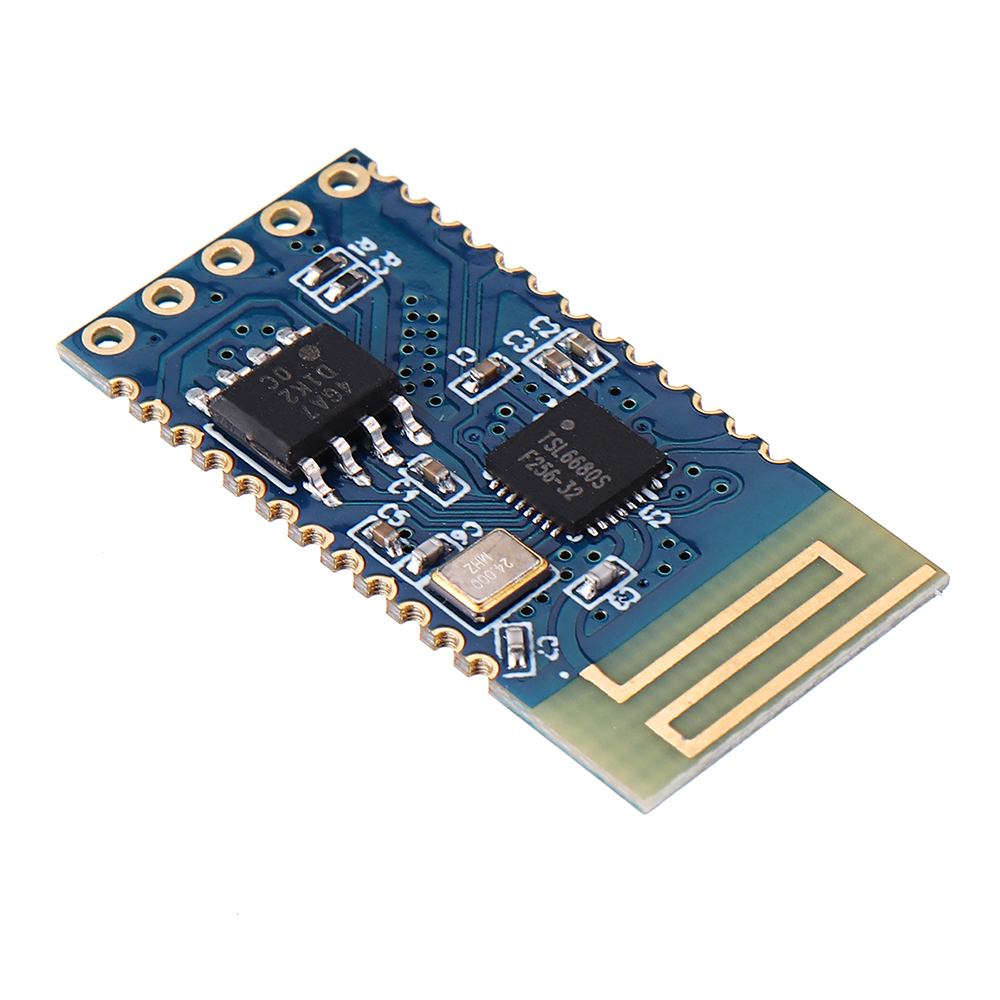

JDY-32 Dual Mode bluetooth 4.2 Module SPP BLE Serial Port UART Interface

Availability: In stock

Regular Price: SGD15.00

Special Price SGD8.00

You Save: SGD7.00 (47%)

Quick Overview


JDY-32 dual-mode Bluetooth is based on Bluetooth 3.0 SPP + Bluetooth 4.2 BLE design, which can support Windows, Linux, ios, android data transmission, working frequency 2.4GHZ, modulation mode GFSK, maximum transmission power 5db, maximum transmission distance 40 meters, Support users to modify the device name, baud rate and other commands through the AT command, which is convenient and quick to use.

Applications:

JDY-32 is a classic Bluetooth protocol that can communicate with Bluetooth-enabled computers (desktops, notebooks) and mobile phones (android). Can be applied
◆Windows computer Bluetooth serial port transparent transmission
◆Android Bluetooth serial port transparent transmission
◆Smart home control
◆Automotive ODB testing equipment
◆Bluetooth toy
◆Share mobile power, share weight
◆Medical equipment

ModelJDY-32
Working frequency2.4GHZ

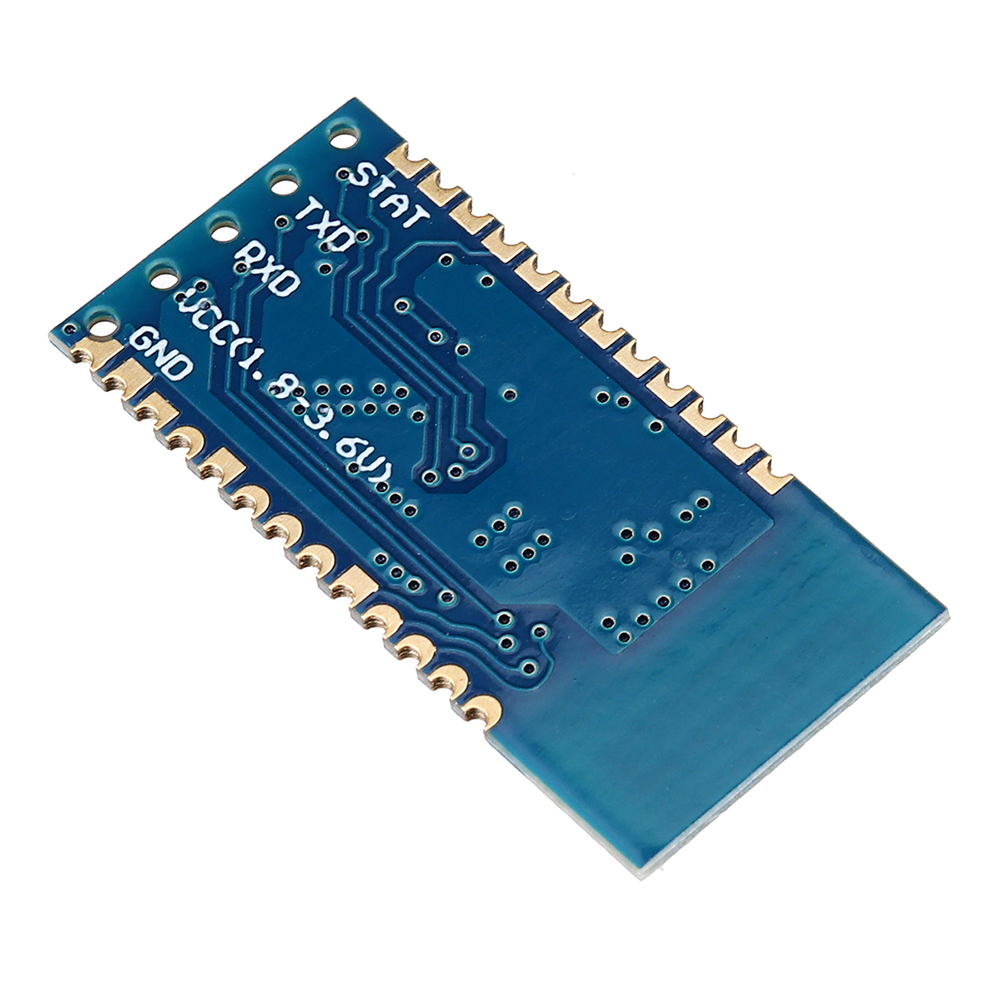

Communication InterfaceUART
Operating Voltage1.8-3.6V (3.3V recommended)
Operating temperature-40 ° C - 80 ° C
AntennaBuilt-in PCB antenna
Transmission distance40 m
Master-slave supportSlave

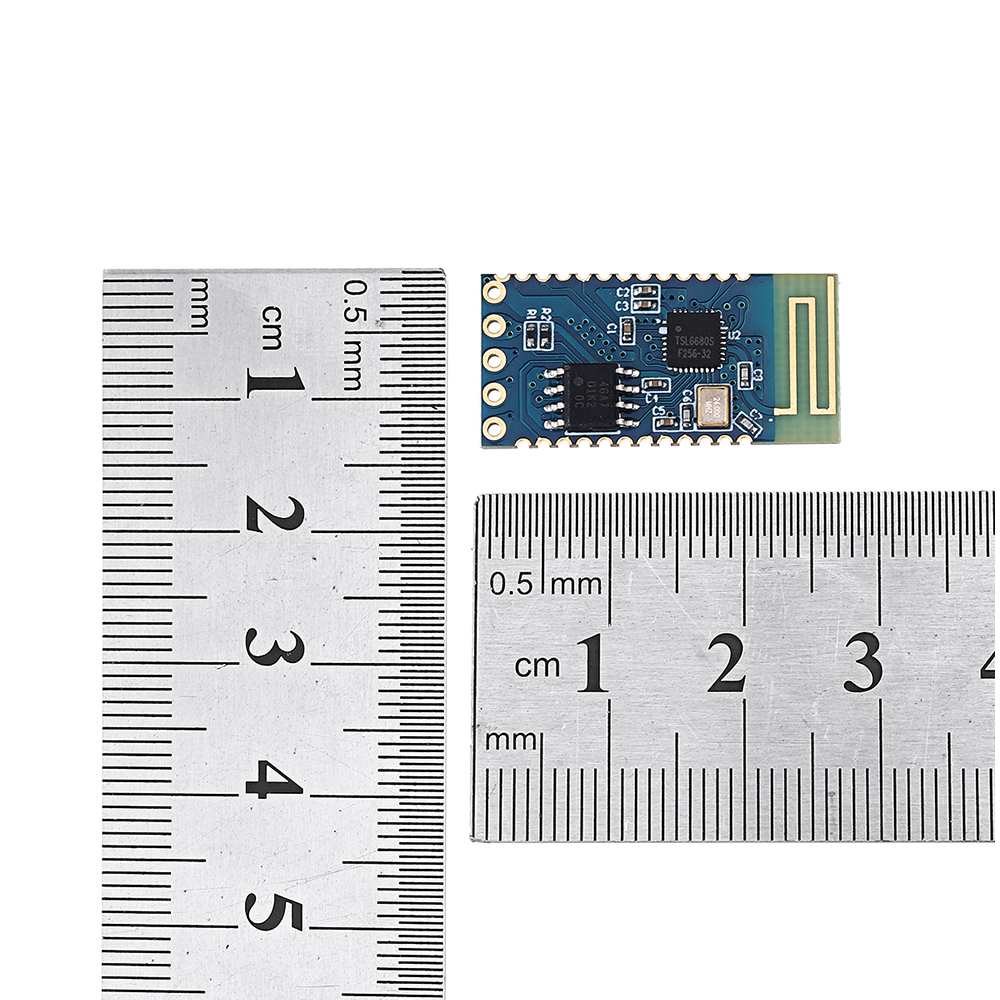

Module size19.6 * 14.94 *1.8 mm (length, width, height)
Bluetooth versionBluetooth 4.2 BLE/Bluetooth 3.0 SPP
SMT soldering temperature<260°C
Broadcast current4.4mA
BLE connected current3.8mA
SPP connected current12mA
Transmit power5db (maximum)
Receiving sensitivity-97dbm

Package includes:

1 x Module
