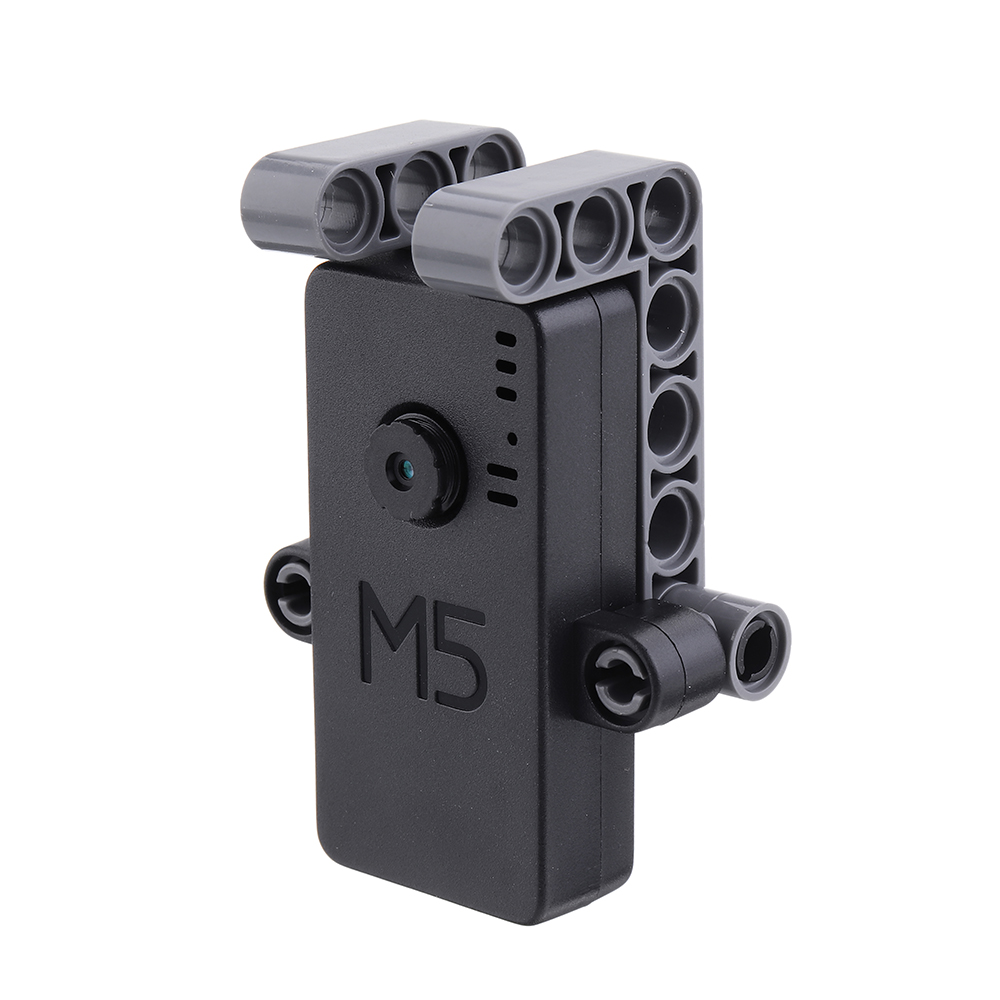

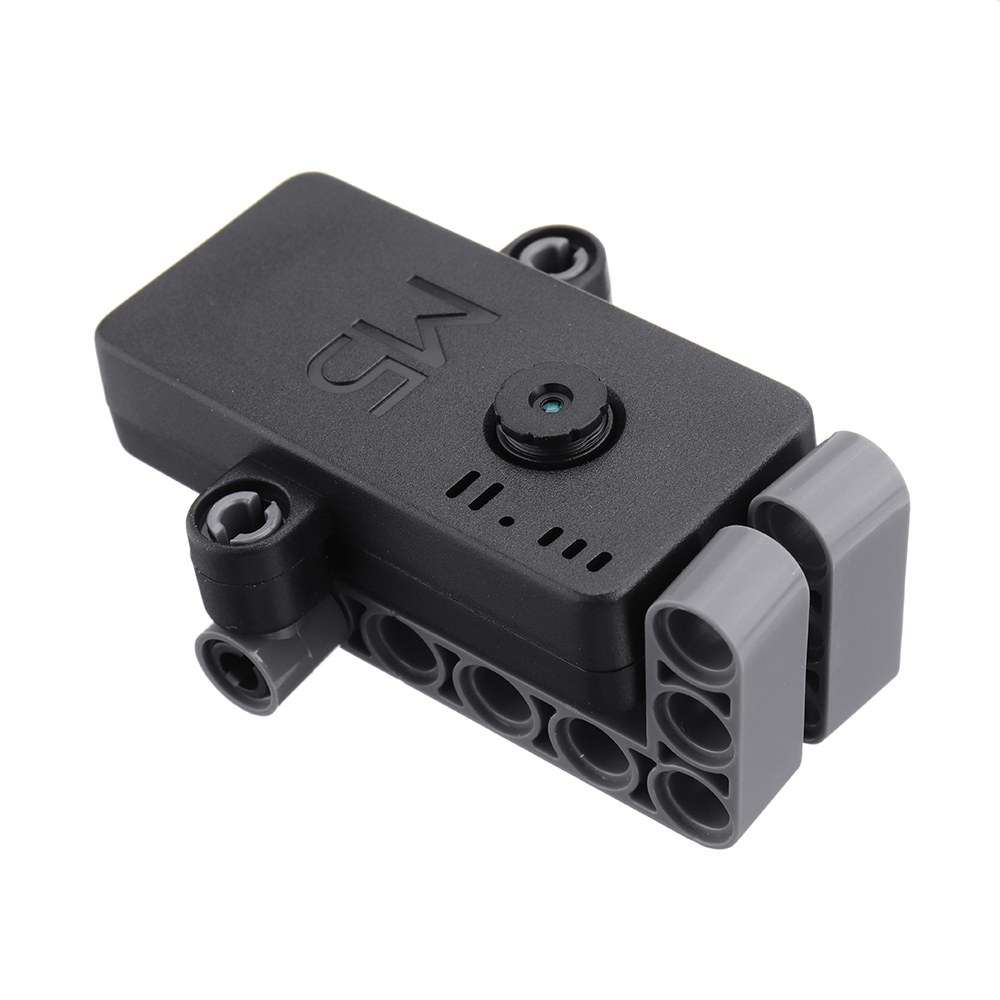

M5Stack Mini ESP32 Camera Development Board WROVER with PSRAM Camera Module OV2640 Type-C Grove Port

Availability: In stock

Regular Price: SGD51.00

Special Price SGD28.00

You Save: SGD23.00 (45%)

Quick Overview

Description:

M5Camera is a development board for image recognition. It features an ESP32(4M Flash + 520K RAM) chip and 2-Megapixel carmera(OV2640).M5Camera offers plenty of storage, with an extra 4 Mbyte PSRAM. It also supports image transmission via Wi-Fi and debuging through USB Type-C port.
The hardware comes preloaded software, programmed by ESP-IDF. It is an application to run Wi-Fi camera. The output image is size 600*800, since it’s 2-Maga camera, you sure can optimize the software to output the maximum size of photos.

What this software can do?

Power the board via USB type-C or GROVE
Use your phone to Wi-Fi scan an AP name start with ‘m5stack-‘ and click to connect this AP.
Open up web browser on your phone and visit 192.168.4.1
Then here comes the picture. Video is about 5-6 frames per senconds. not super fast.
The hardware also comes with some reserved weld pad, just in case you want put these chips back on board.
- 9-axis gyroscope (MPU6050)
- pressure sensor (BME280)
- Analog MIC (SPQ2410)
- Lipo Battery power pins

Note:

 M5Camera is named differently when different hardware is selected. They follow the rules below.
M5Camera_#_#… means optional hardware name follows “M5Camera”.
If configured with MPU6050, will be named M5Camera_6050
If also configured with microphone, will be named M5Camera_6050_MIC
If also configured with BME280, will be named M5Camera_6050_MIC_BME280

Features:

1. ESP32 module features
- Integrated dual-core Tensilica LX6
- Up to 240MHz clock frequency
- 4MB internal RAM
- 4MB Flash memory
- Integrated 802.11 BGN WiFi and dual mode Bluetooth (Classic Bluetooth and BLE)
- Hardware encryption (AES, SHA2, ECC, RSA-4096)
2. CP2104 USB to serial port
3. OV2640 camera driver
- Output format (8-bit):
     YUV(422/420)/YCbCr422
     RGB565/555
     8-bit compressed data
     8-/10-bit Raw RGB data
- Maximum transfer rate of the picture
     UXGA/SXGA: 15fps
     SVGA: 30fps
     CIF: 60fps
- Scan mode: Progressive
4. Camera features
- CCD size: 1/4inch
- Visual range: 78 degree
- Maximum pixel: 200W

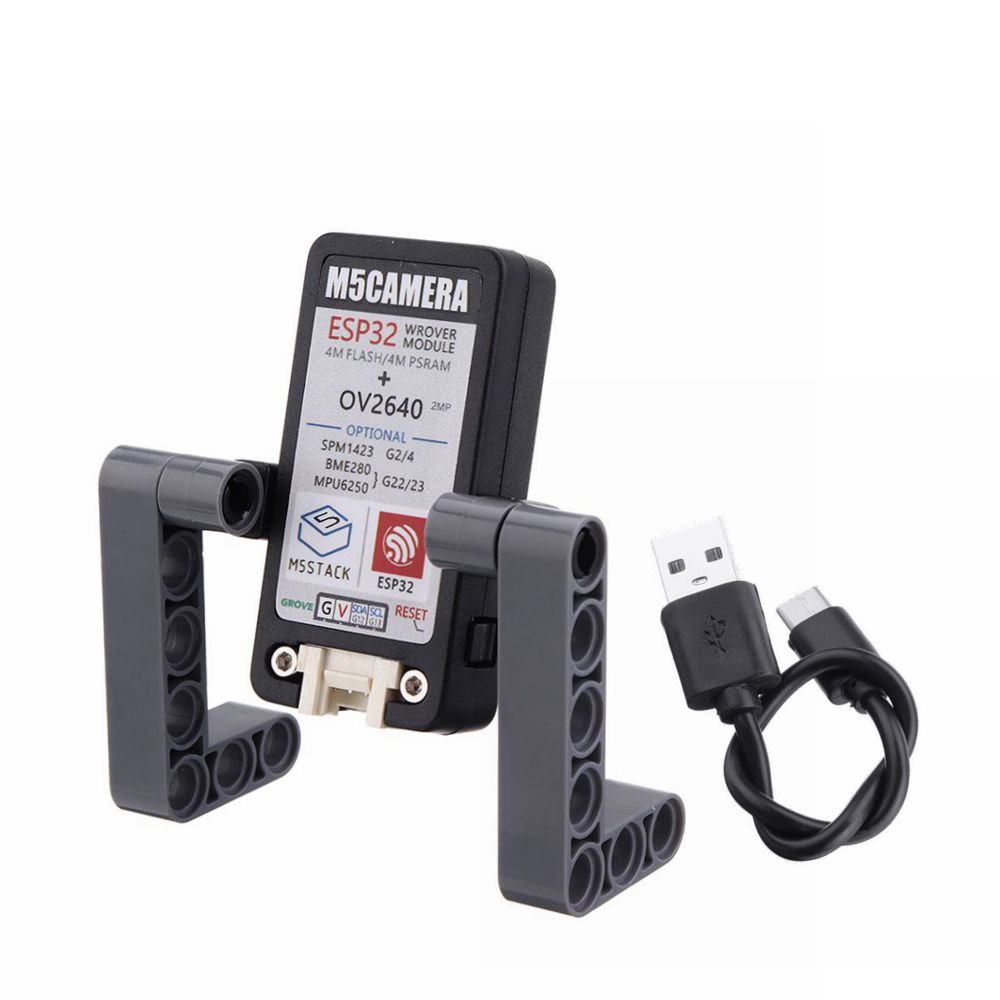

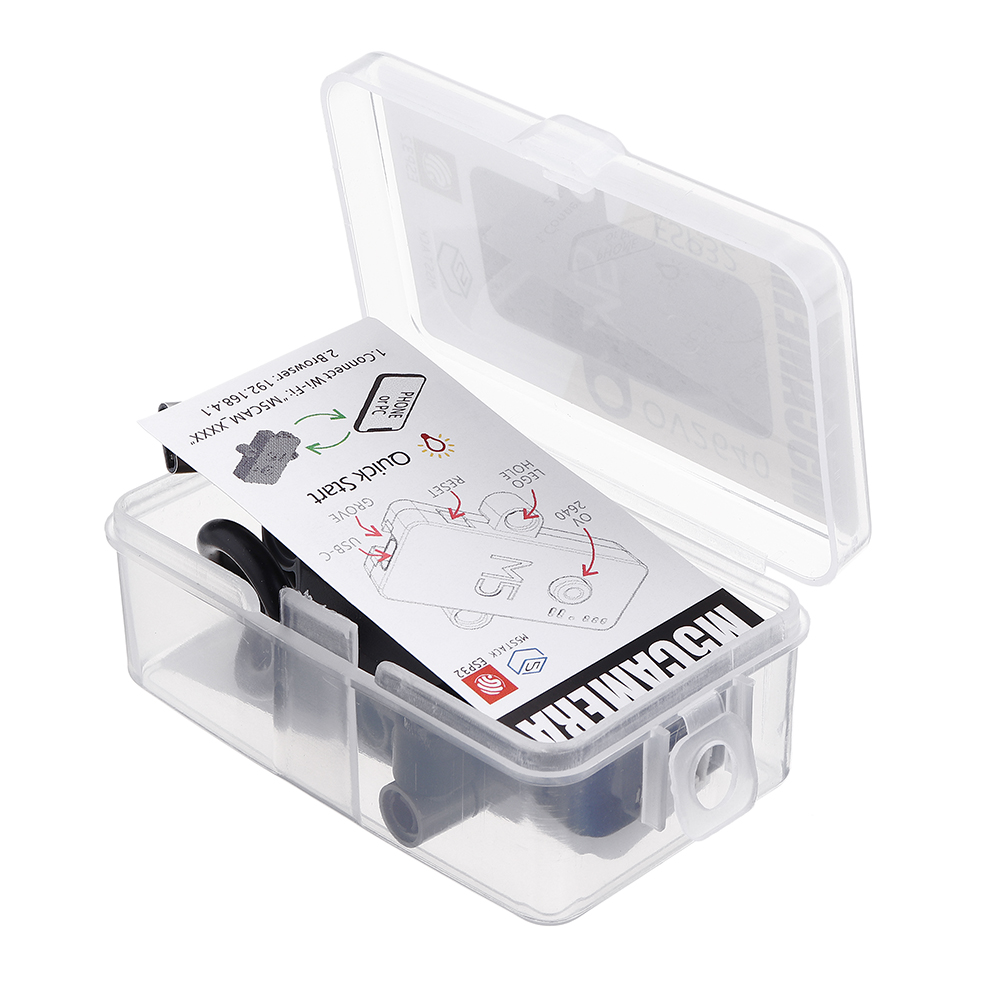

Package Included:

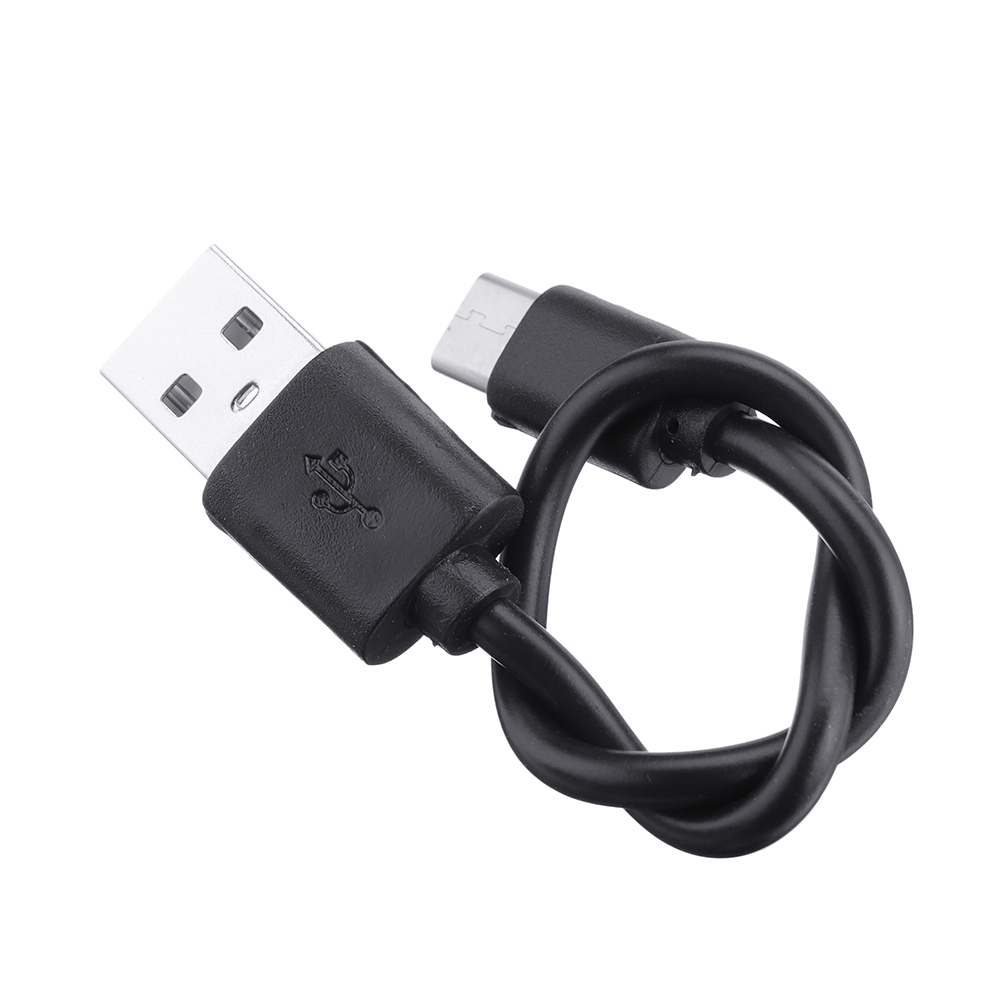

1 x Type-C USB
1 x M5Camera Unit
1 x Instruction Manual

PinMap:

InterfaceCamera PinM5Camera(A model)
SCCB ClockSIOCIO23
SCCB DataSIODIO25
System ClockXCLKIO27
Vertical SyncVSYNCIO22
Horizontal ReferenceHREFIO26
Pixel ClockPCLKIO21
Pixel Data Bit 0D2IO32
Pixel Data Bit 1D3IO35
Pixel Data Bit 2D4IO34
Pixel Data Bit 3D5IO5
Pixel Data Bit 4D6IO39
Pixel Data Bit 5D7IO18
Pixel Data Bit 6D8IO36
Pixel Data Bit 7D9IO19
Camera ResetRESETIO15
Camera Power DownPWDNsee Note 1
Power Supply 3.3V3V33V3
GroundGNDGND

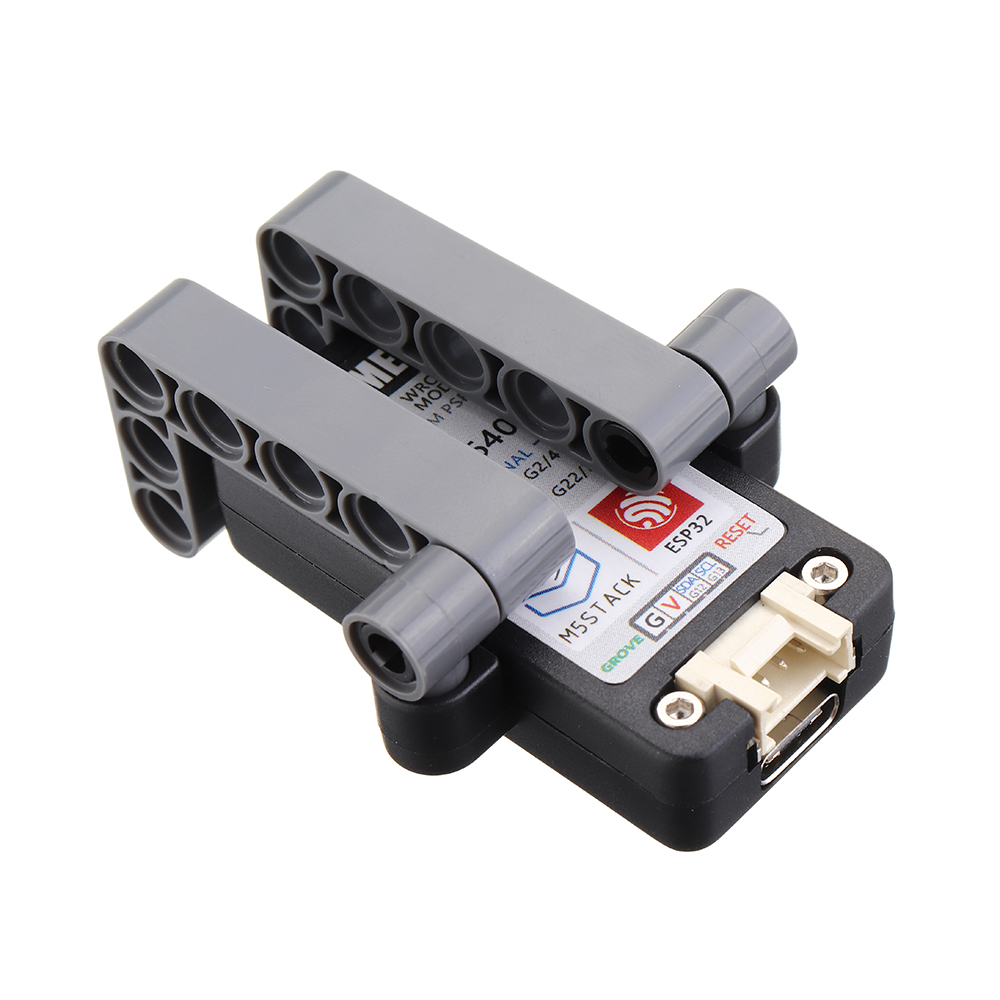

GROVE Interface
GroveM5Camera(A model)
SCLIO13
SDAIO12
5V5V
GNDGND

LED Interface
LEDM5Camera
LED_PinIO14

The following tables are Reserved Chip Interfaces

BME280 Interface
It’s IIC address is 0x76.

BME280M5Camera
SCLIO23
SDAIO22

MPU6050 Interface
It’s IIC address is 0x68.

MPU6050M5Camera
SCLIO23
SDAIO22

MIC(SPM1423) Interface

MIC(SPM1423)M5Camera
SCLIO2
SDAIO4

NOTE:

Camera Power Down pin does not need to be connected to ESP32 GPIO. Instead it may be pulled down to ground with 10 kOhm resistor.
