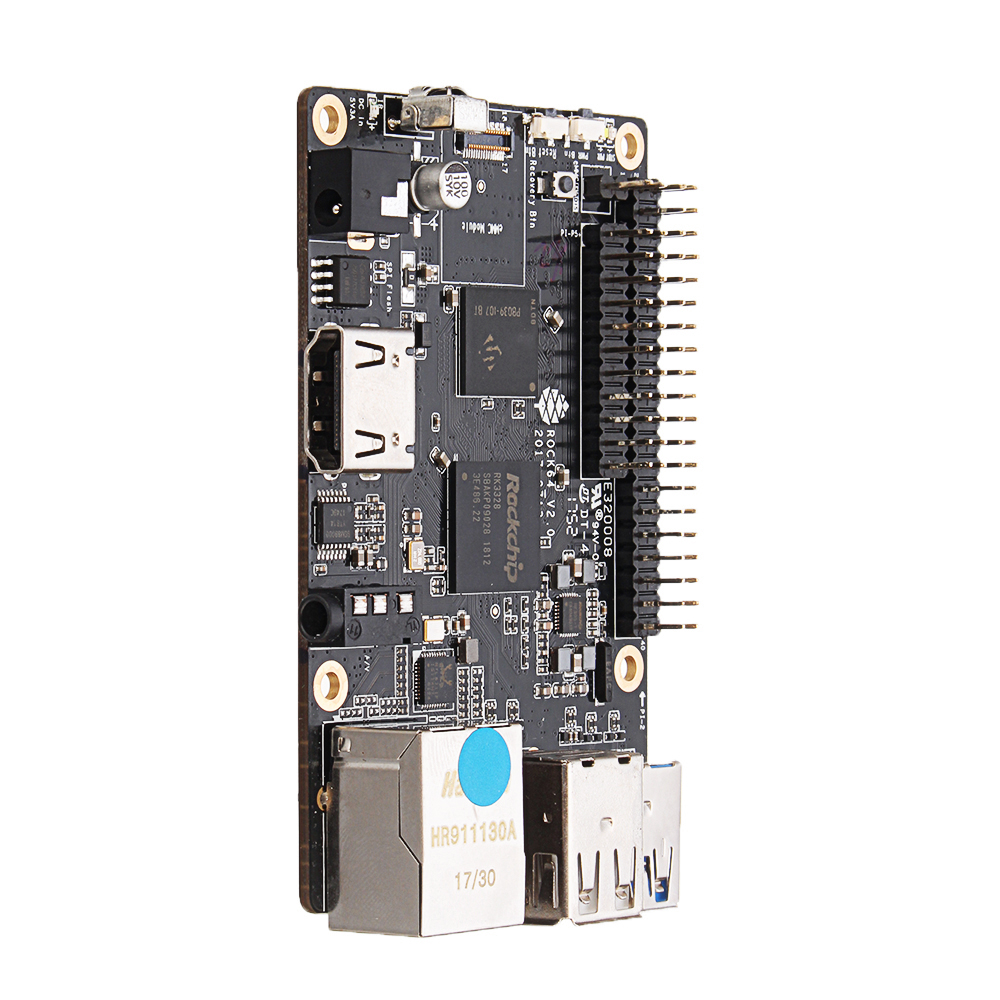

Rock64 Media Board Computer 1 2 4 GB Multimedia Development Motherboard

Availability: In stock

Regular Price: SGD220.00

Special Price SGD122.00

You Save: SGD98.00 (45%)

Quick Overview

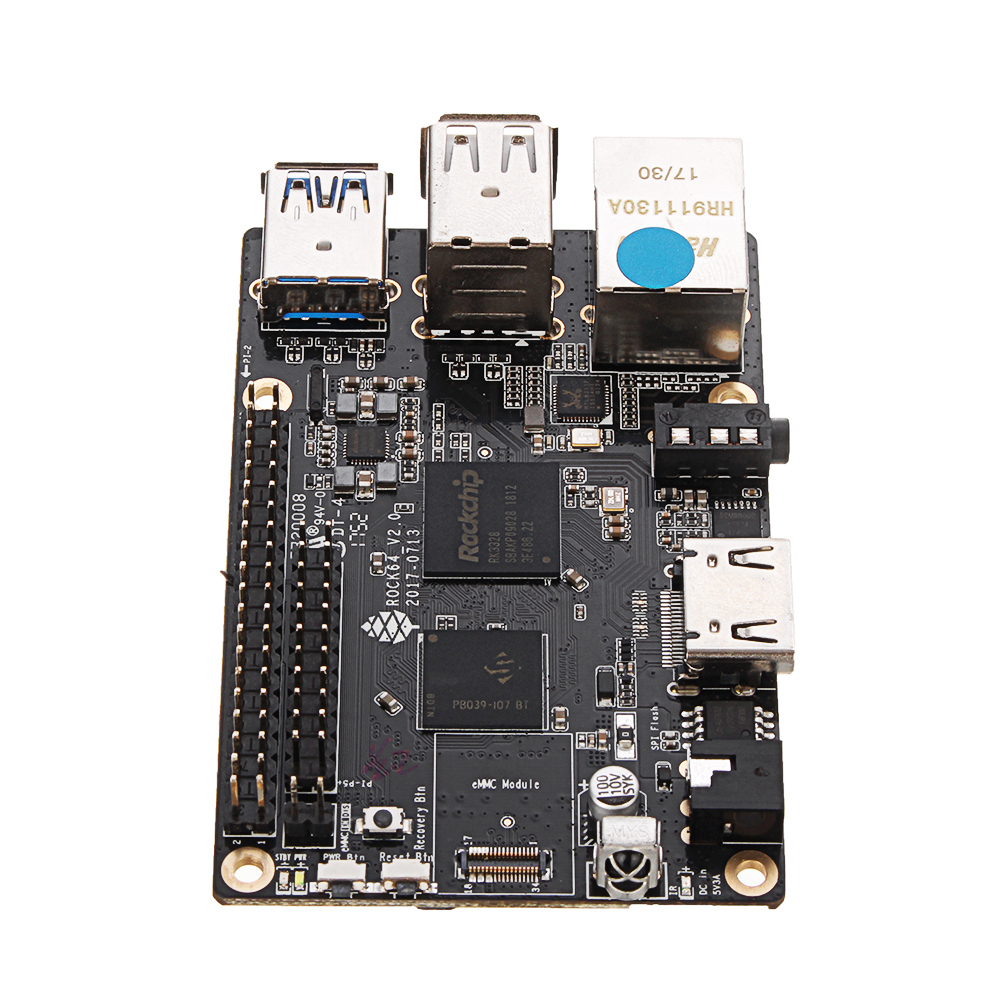

ROCK64 HDR Media Board Computer:

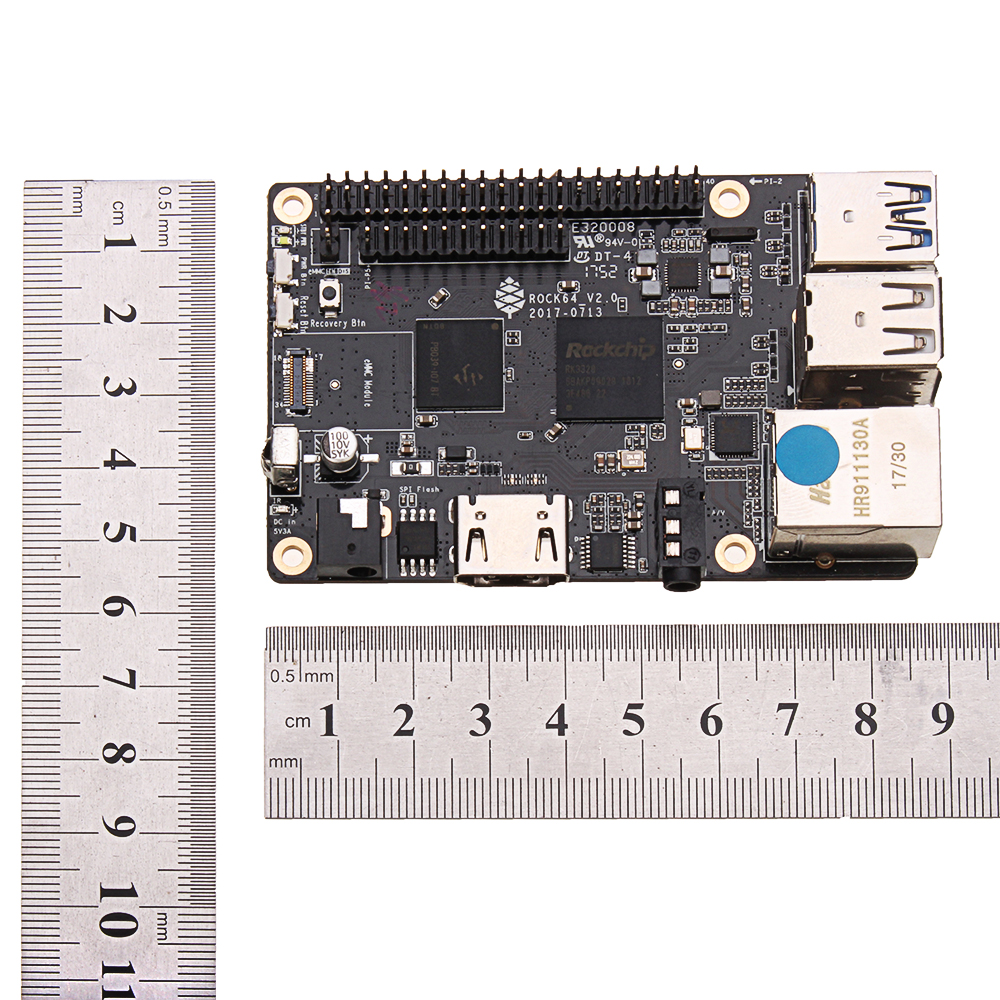

ROCK64 is a credit card size 4K60P HDR Media Board Computer powered by Rockchip RK3328 Quad-Core ARM Cortex A53 64-Bit Processor and support up to 4GB 1866MHz LPDDR3 memory. It provides eMMC module socket, MicroSD Card slot, Pi-2 Bus, Pi-P5+ Bus, USB 3.0 and many others peripheral devices interface for makers to integrate with sensors and devices. Various Operating System (OS) are made available by open source community such Android 7.1, Debian, Yocto and many more to come.

State of software support for the hardware:

RequirementGNU/LinuxAndroid/LinuxKodi/Linux
2160p 30Hz 8bit h264/h265/vp8 yesyes
UI using GPUnoyes
Youtubenoyesno
vp9 / mpeg4 / mpeg2 / 10bit HDR / YCbCrnoyesno

CPU Architecture:

Quad-core Cortex-A53 up to 1.5GHz CPU
Full implementation of the ARM architecture v8-A instruction set
ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerated media and signal processing computation
ARMv8 Cryptography Extensions
In-order pipeline with symmetric dual-issue of most instructions
Unified system L2 cache
Include VFP v3 hardware to support single and double-precision operations
Integrated 32KB L1 instruction cache, 32KB L1 data cache with 4-way set associative
TrustZone technology support
Full CoreSight debug solution
One separate power domains for CPU core system to support internal power switch and externally turn on/off based on different application scenario
PD_A53: Cortex-A53 + Neon + FPU + L1 I/D Cache of core 2/3
One isolated voltage domain to support DVFS

GPU Architecture:

ARM Mali-450MP2 Dual-core GPU
OpenGL ES 1.1 and 2.0, OpenVG1.1

System Memory:

LPDDR3 RAM Memory Variants: 4GB
Storage Memory: ROCK64 boards have 128Mb built-in SPI Flash memory but not yet in use, currently use bootable microSD Cards or bootable attachable eMMC.

Features:

Input Power: +5V @3A with 3.5mm/1.35mm Type H Barrel type DC connector (@2A still work if no heavy loading on USB 3.0 port)

Video:

HDMI 2.0a output up to [email protected]
4K HDR @ 60fps
H.264/AVC Base/Main/High/High10 profile @ level 5.1; up to 4Kx2K @ 60fps
H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
VP9, up to 4Kx2K @ 60fps
MPEG-1, ISO/IEC 11172-2, up to 1080P @ 60fps
MPEG-2, ISO/IEC 13818-2, [email protected], [email protected], up to 1080P @ 60fps
MPEG-4, ISO/IEC 14496-2, [email protected], [email protected], up to 1080P @ 60fps
MVC is supported based on H.264 or H.265, up to 1080P @ 60fps

Audio:

3.5mm A/V Jack (Composite Video Output and RCA Stereo support using conversion cable)

Network:

10/100/1000Mbps Ethernet
WiFi 802.11 b/g/n with bluetooth 4.0 (optional USB dongle)

Storage:

microSD - bootable, support SDHC and SDXC, storage up to 256GB
eMMC - bootable (optional eMMC Module)
1 USB3.0 Dedicated Host port
2 USB2.0 Dedicated Host port (top one is USB-OTG)

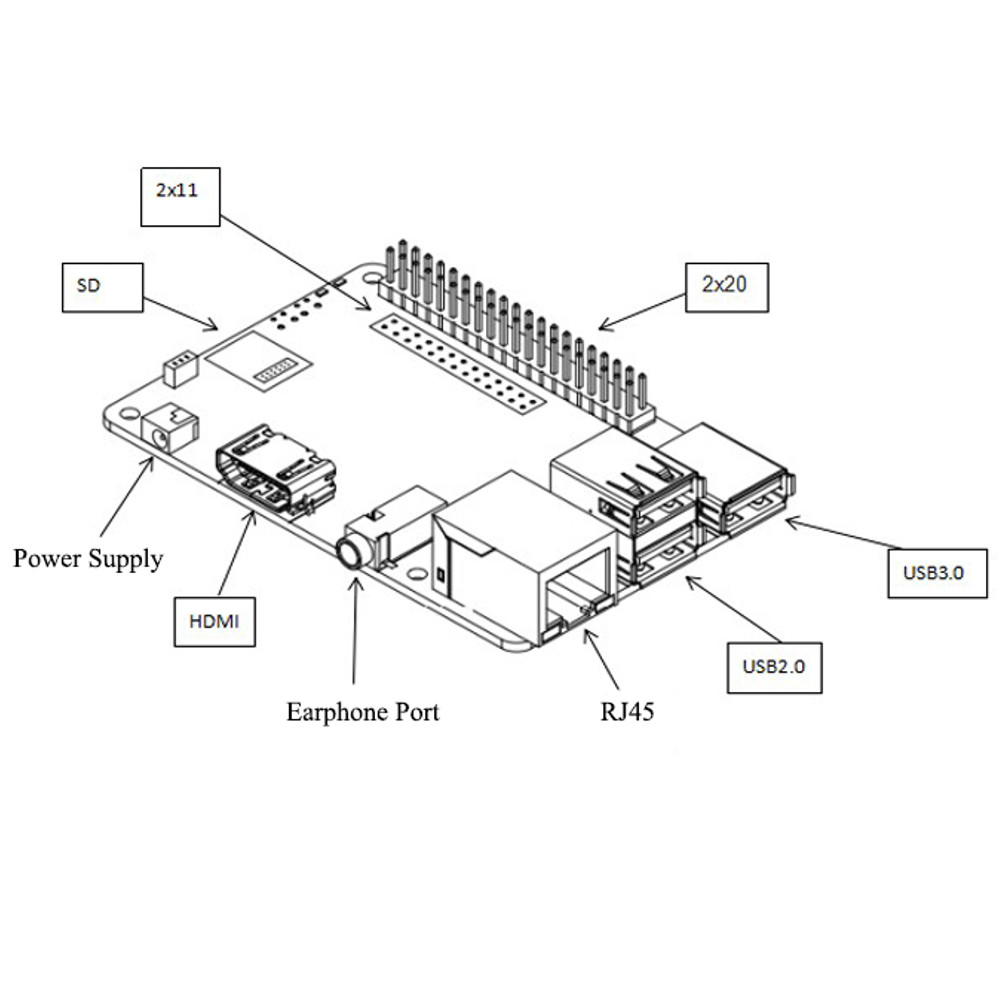

Expansion Ports:

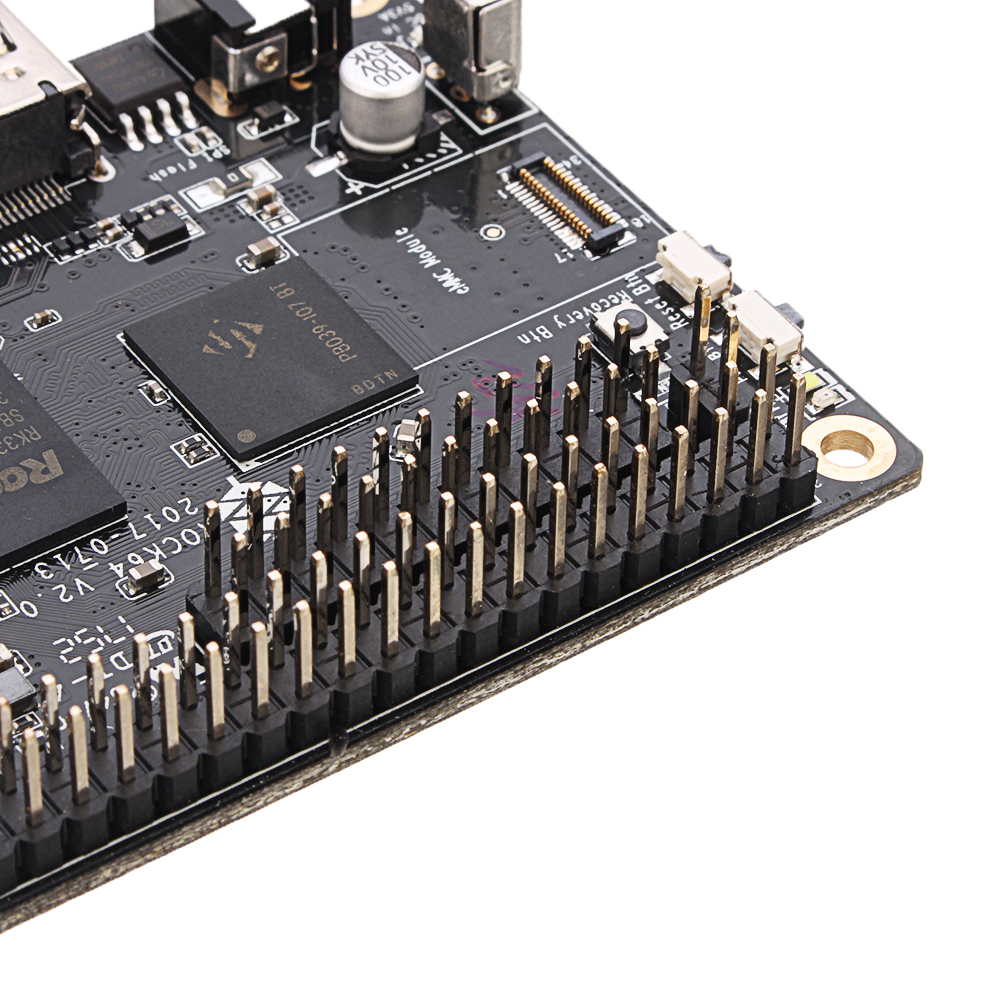

2x20 pins "Pi2" GPIO Header
2x11 pins "Pi P5+" GPIO Header (with 2nd 10/100Mbps Ethernet pins)

More Information please see: http://wiki.pine64.org/index.php/ROCK64_Main_Page

Package includes:

1 x ROCK64 Module



















OR

Additional Information

SKU GI/BG/1440570
Weight 0.0750
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
