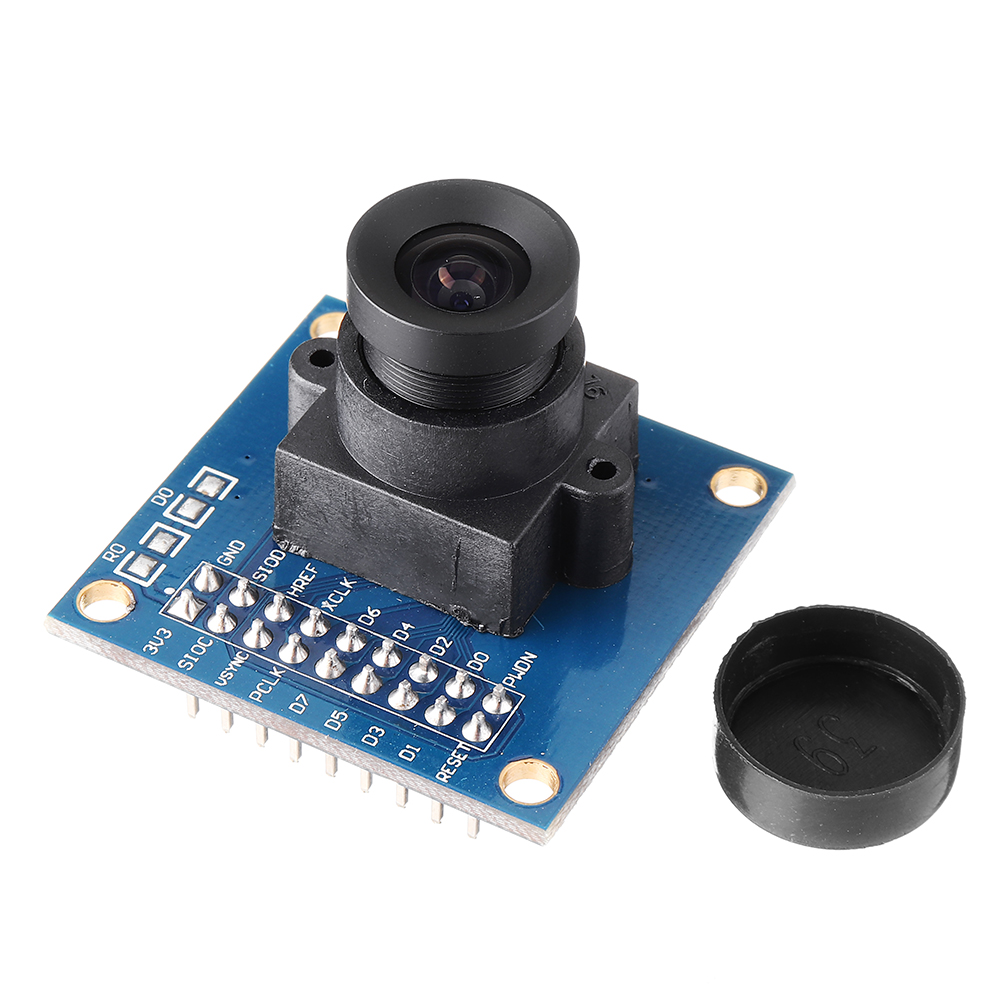

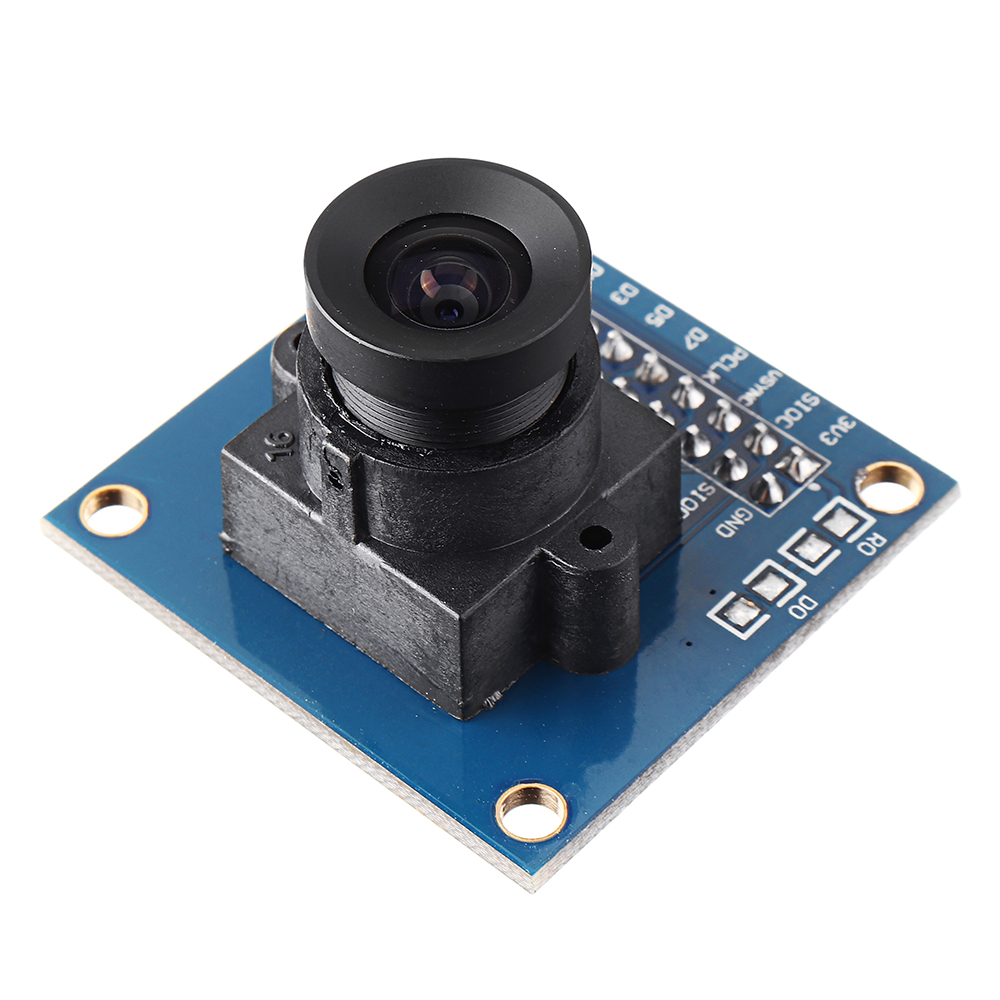

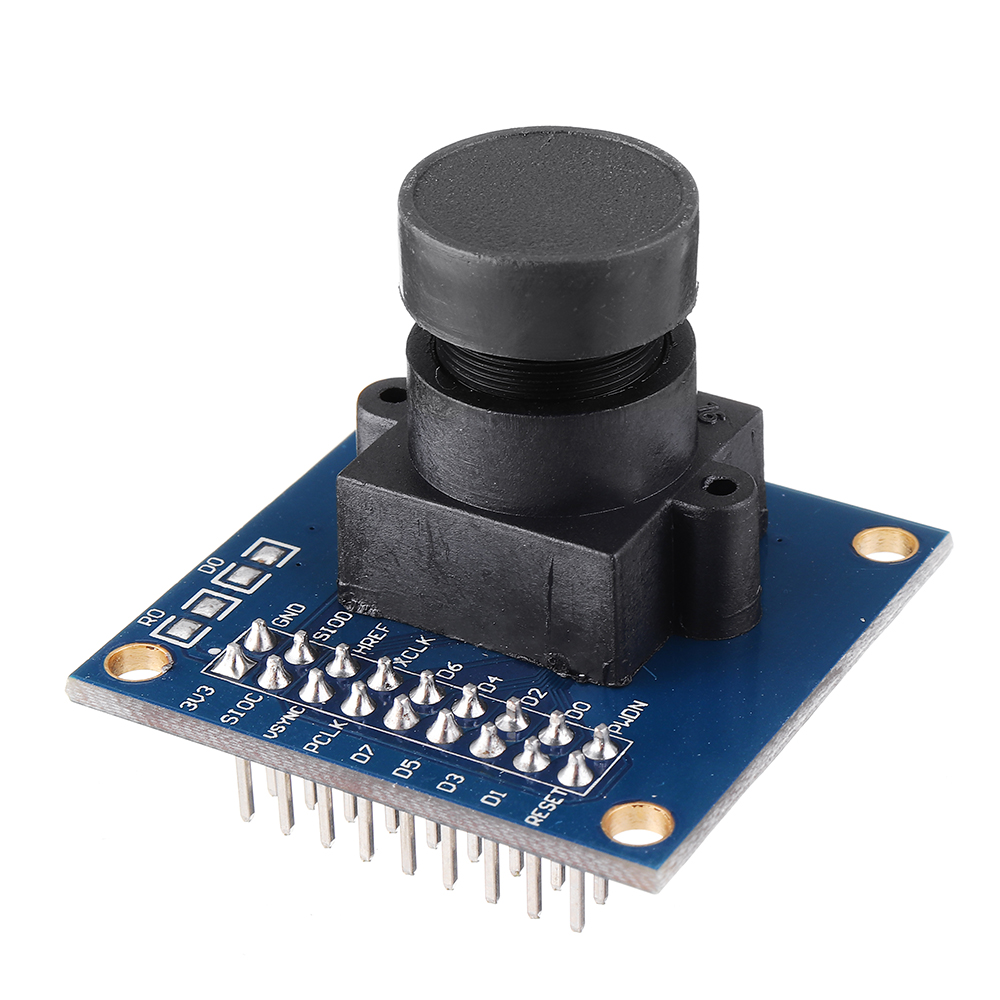

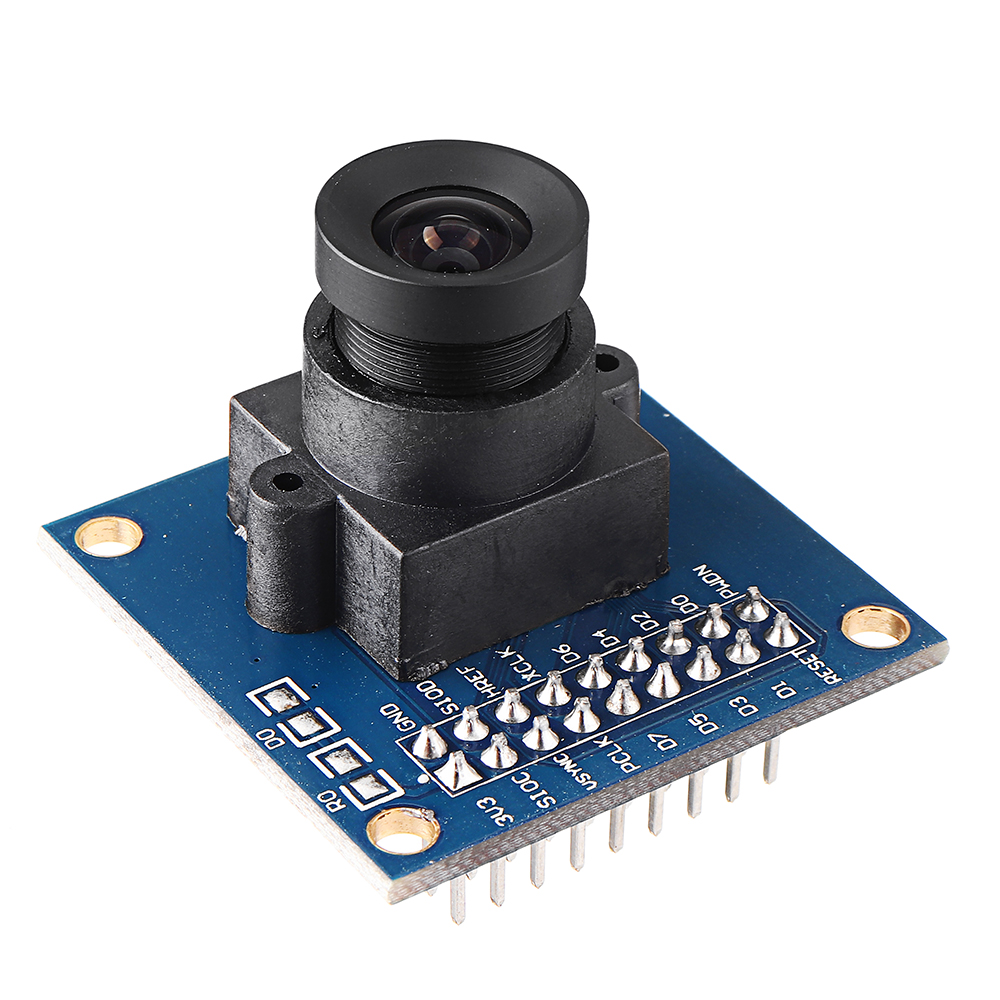

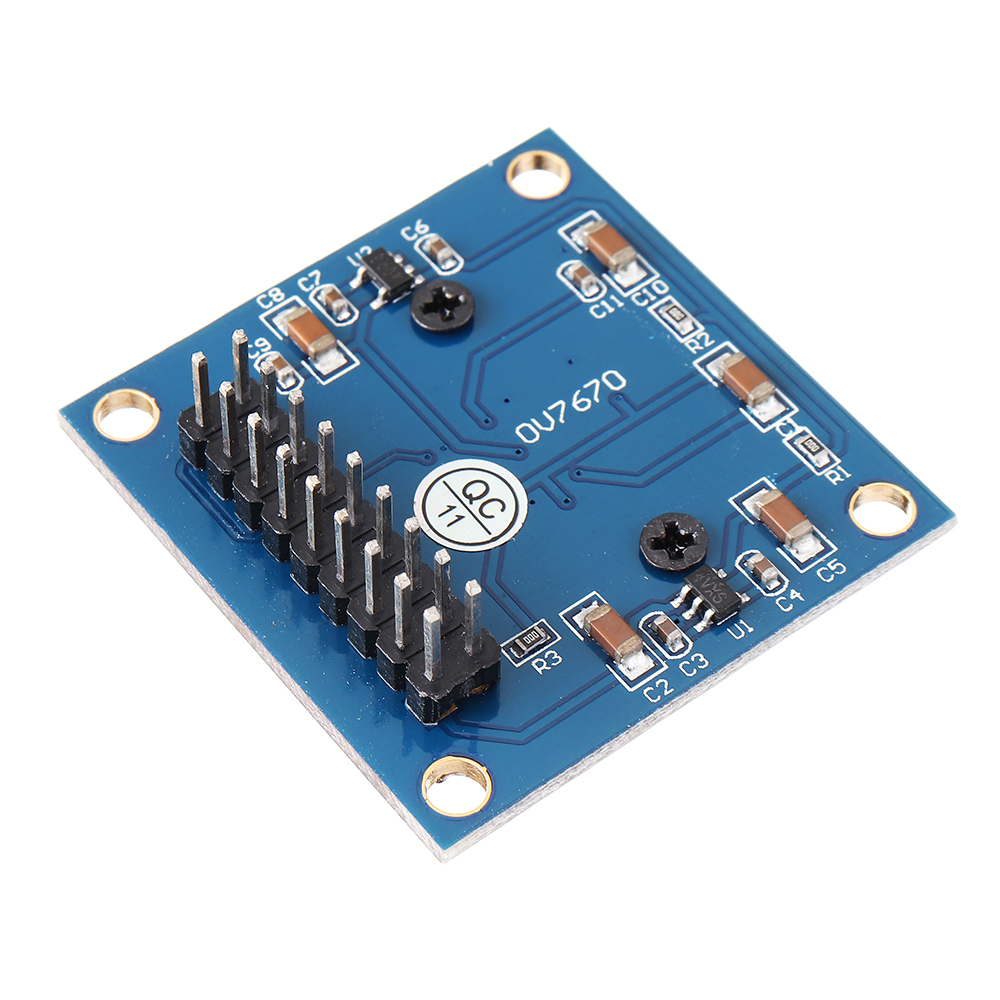

Wareshare OV7670 Camera Module CMOS Acquisition Board Adjustable Focus 300,000 Pixel

Availability: In stock

Regular Price: SGD36.00

Special Price SGD20.00

You Save: SGD16.00 (44%)

Quick Overview

Introduction:

OV7670 Module refers to the low-cost digital output CMOS camera from Micro-Snow Electronics.

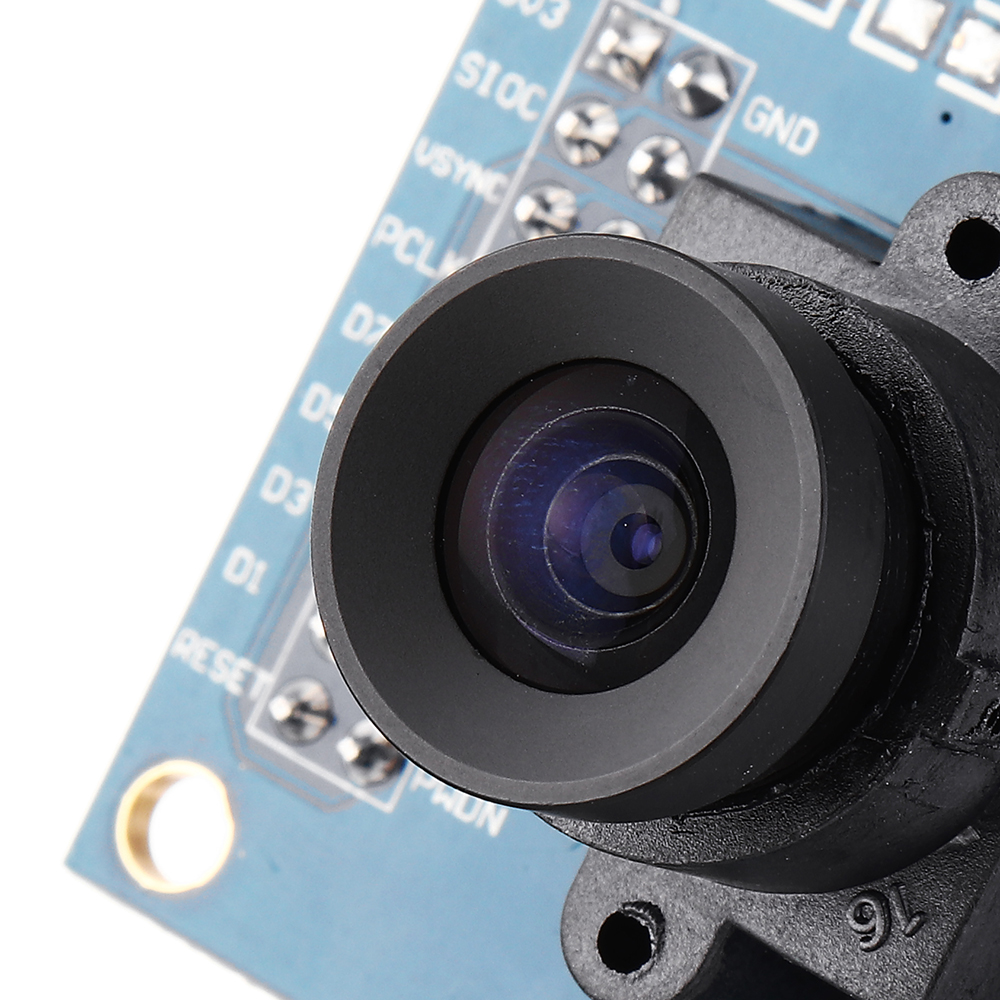

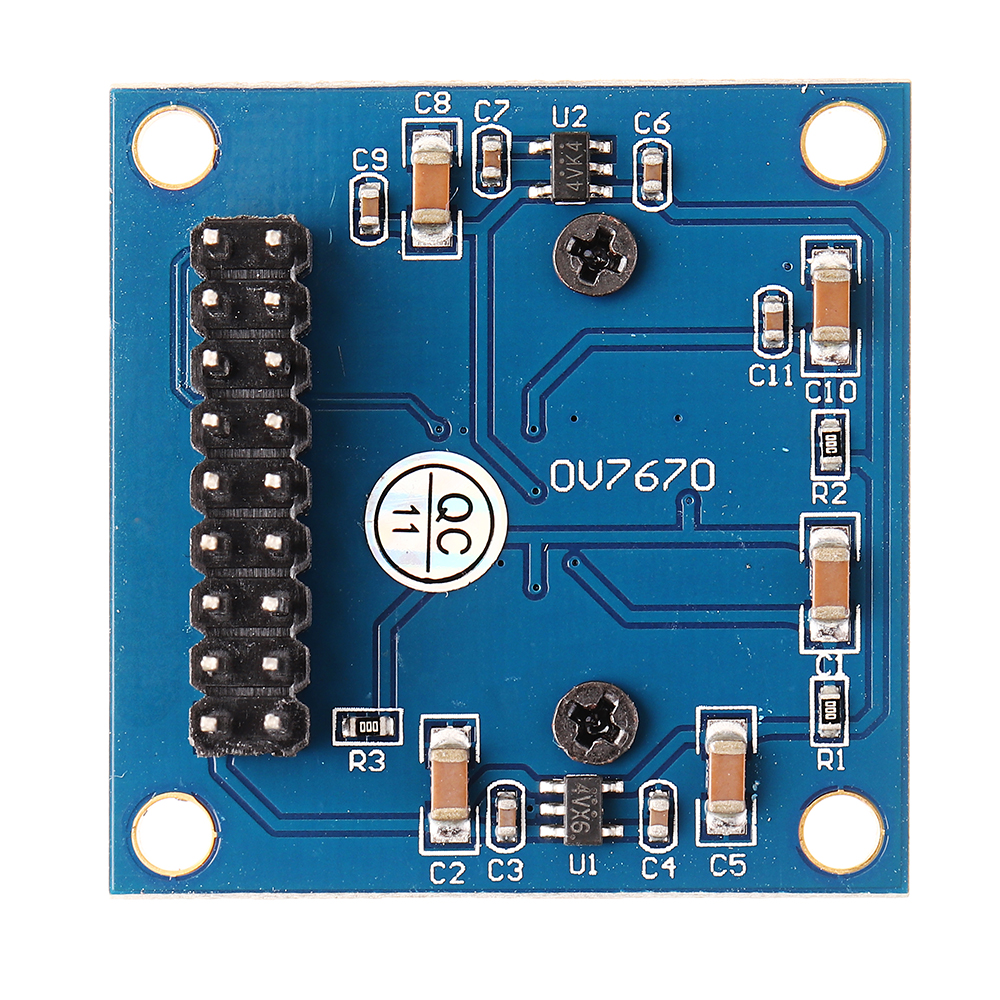

Its camera includes a 300,000 pixel CMOS image sensor, 3.6mm focal length lens and lens mount, and various power supplies required for on-board CMOS chips.
The board also pulls out the control pins and data pins for easy operation and use.

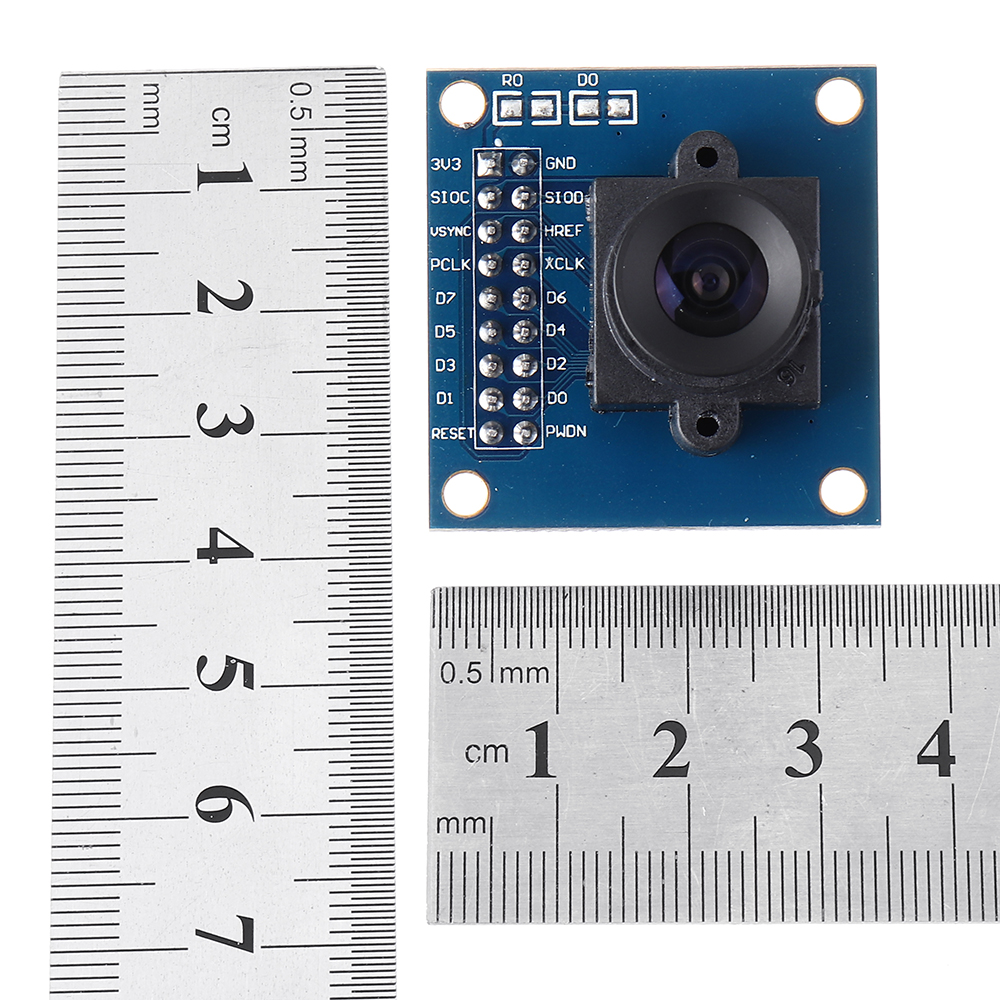

Pin definition:

3V3: Input power supply voltage (3.3, 5V is recommended, but not recommended)
GDN: Grounding point
SIO_C---SCCB: Control clock of the interface (Note: some low-level microcontrollers require pull-up control, similar to the I2C interface)
SIO_D---SCCB: serial data input (output) of the interface (Note: some low-level microcontrollers require pull-up control, similar to the I2C interface)
VSYNC: frame sync signal (output signal) HREF line sync signal (output signal)
PCLK: pixel clock (output signal)
XCLCK: clock signal (input signal)
D0-D7: Data port (output signal)
RESTE: Reset port (normal use pull high)
PWDN: Power selection mode (normal use pull low)

Package includes:

1 x OV7670 Camera Board (B)


















OR

Additional Information

SKU GI/BG/1478355
Weight 0.0160
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
