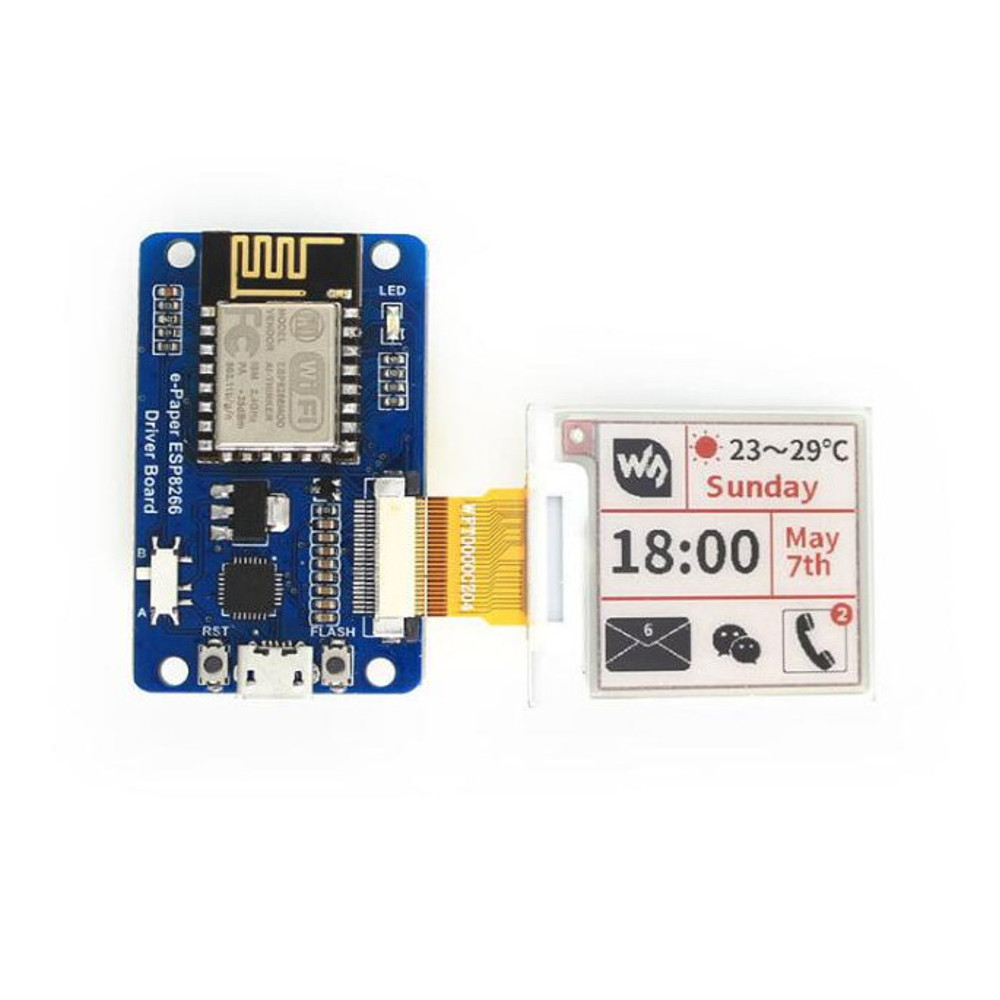

Waveshare 1.54 Inch Bare e-Paper Screen + Driver Board Onboard ESP8266 Module Wireless WiFi Red Black and White Display Compatible Arduino

Availability: In stock

Regular Price: SGD92.00

Special Price SGD51.00

You Save: SGD41.00 (45%)

Quick Overview

Note: This product comes with 1.54 Inch Bare ink screen.

Product introduction:

The electronic ink screen network driver board can obtain picture information from a PC or a smart phone via WiFi, and display the information through an electronic ink screen.
Support for Arduino development, can be used like other Arduino boards.

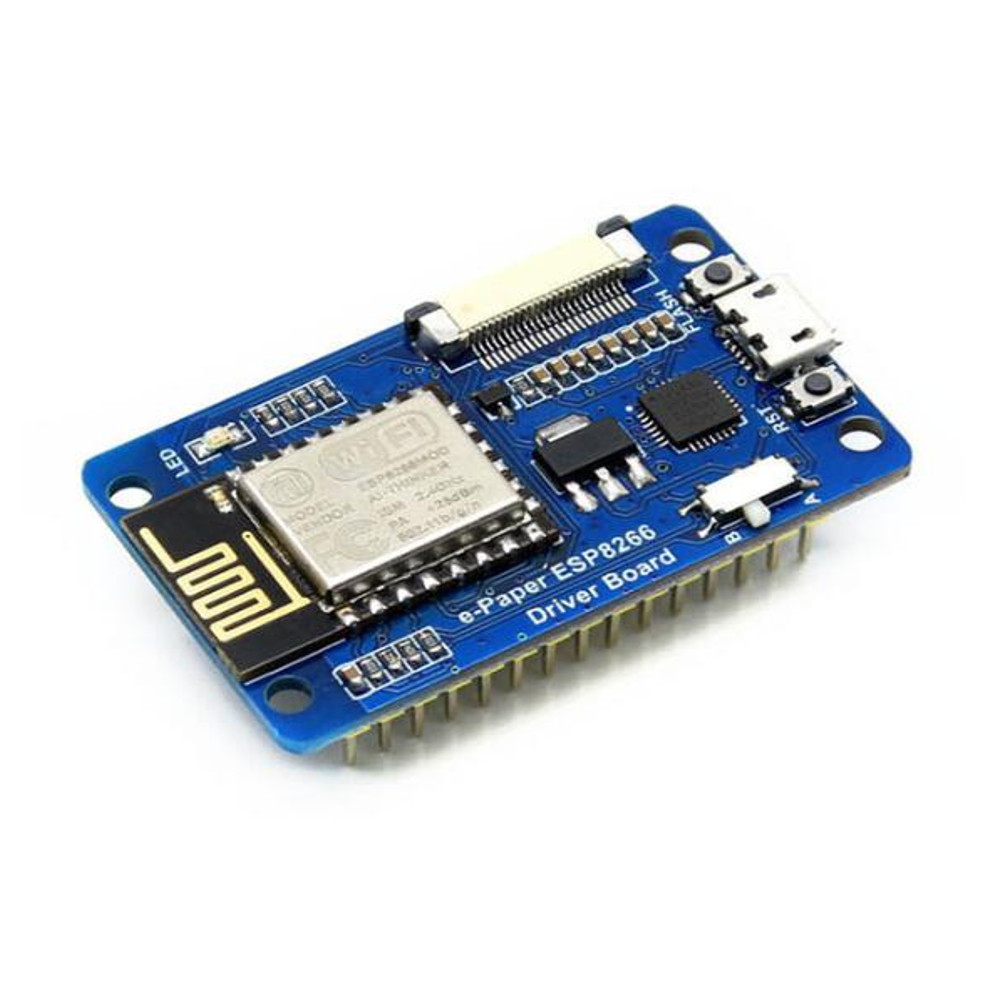

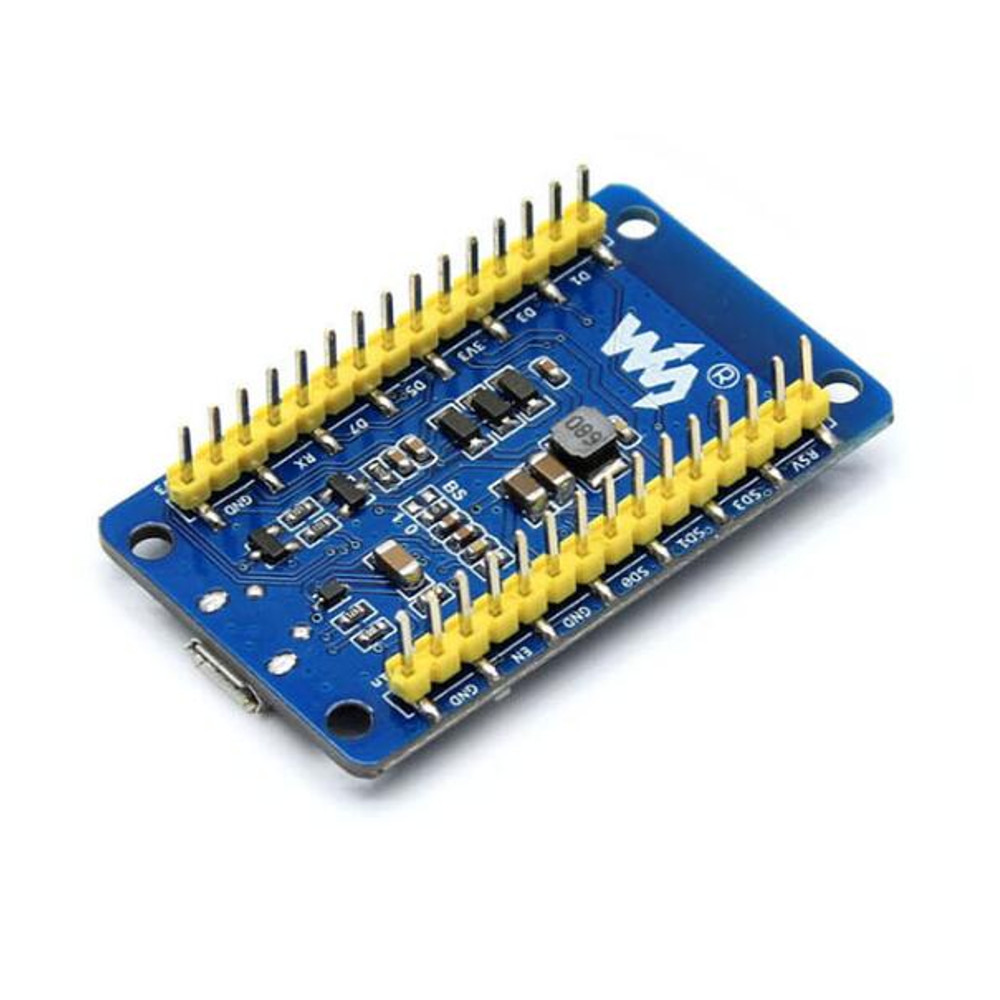

Driver Board Features:

Onboard ESP8266, support for Arduino development
Provide HTML host computer program factory built-in electronic ink screen driver (open source)
Support Floyd-Steinberg dithering algorithm to get more color combinations and better shadow rendering of original images
Support a variety of common image formats (BMP, JPEG, GIF, PNG, etc.)
Easy to integrate into a variety of web applications
Provide a complete supporting information manual

Driver Board Parameter:

WiFi standard: 802.11b/g/n
Communication interface: 3-wire SPI, 4-wire SPI (default)
Working voltage: 5V
Working current: 50mA ~ 100mA

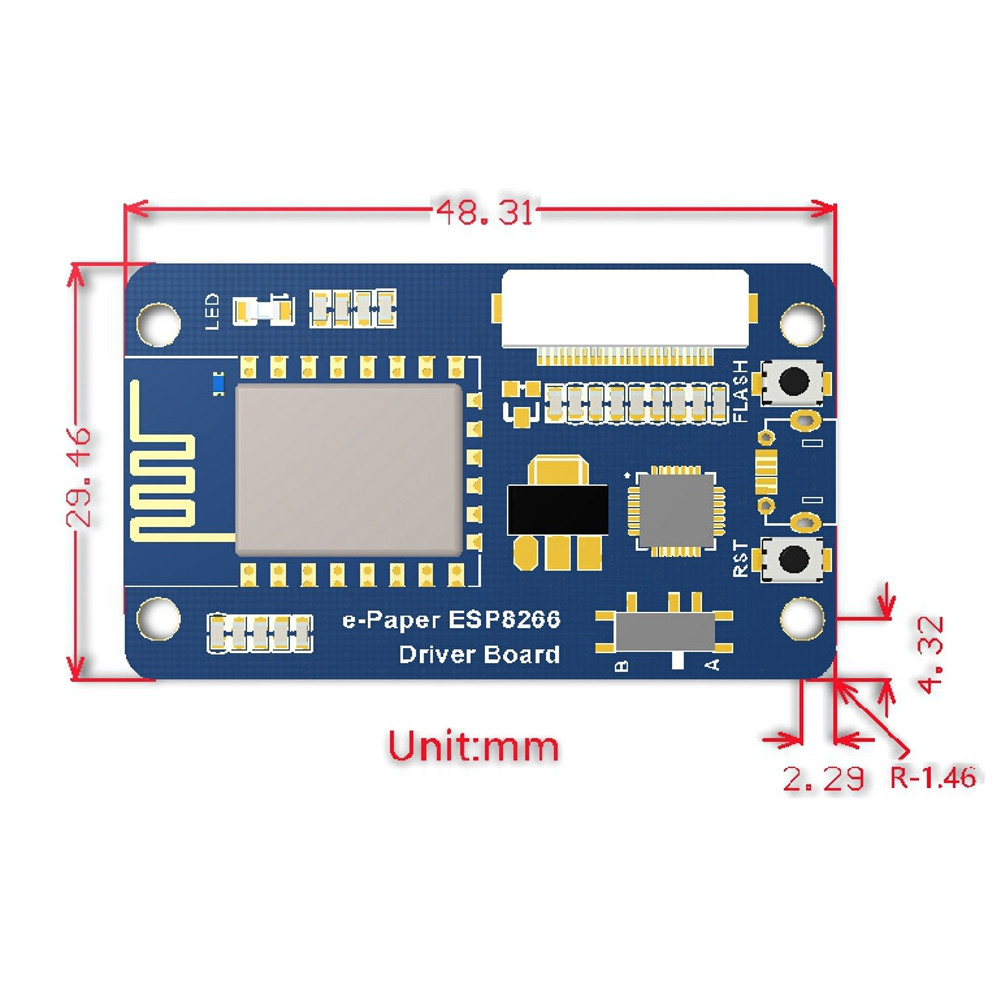

Dimensions: 29.57mm x 48.26mm
Through hole diameter: 2.9mm

Screen Features:

No backlight required, power off can keep the last screen display for a long time
Very low power consumption, basically only consumes power when refreshing
Provide complete supporting information manual (driver schematic, Raspberry/Arduino/STM32 and other sample programs

Screen Parameters:

Working voltage: 3.3V
Communication interface: 3-wire SPI, 4-wire SPI
Dimensions: 31.8mm × 37.32mm × 1.05mm
Display size: 27.6mm × 27.6mm
Dot Distance: 0.138 × 0.138
Resolution: 200 × 200
Display color: red, black, white
Gray level: 2
Refresh power consumption: 26.4mW (typ.)
Standby power consumption: <0.017mW
Viewing angle: >170°

Information includes:

User manual
Schematic
Sample program
Development materials

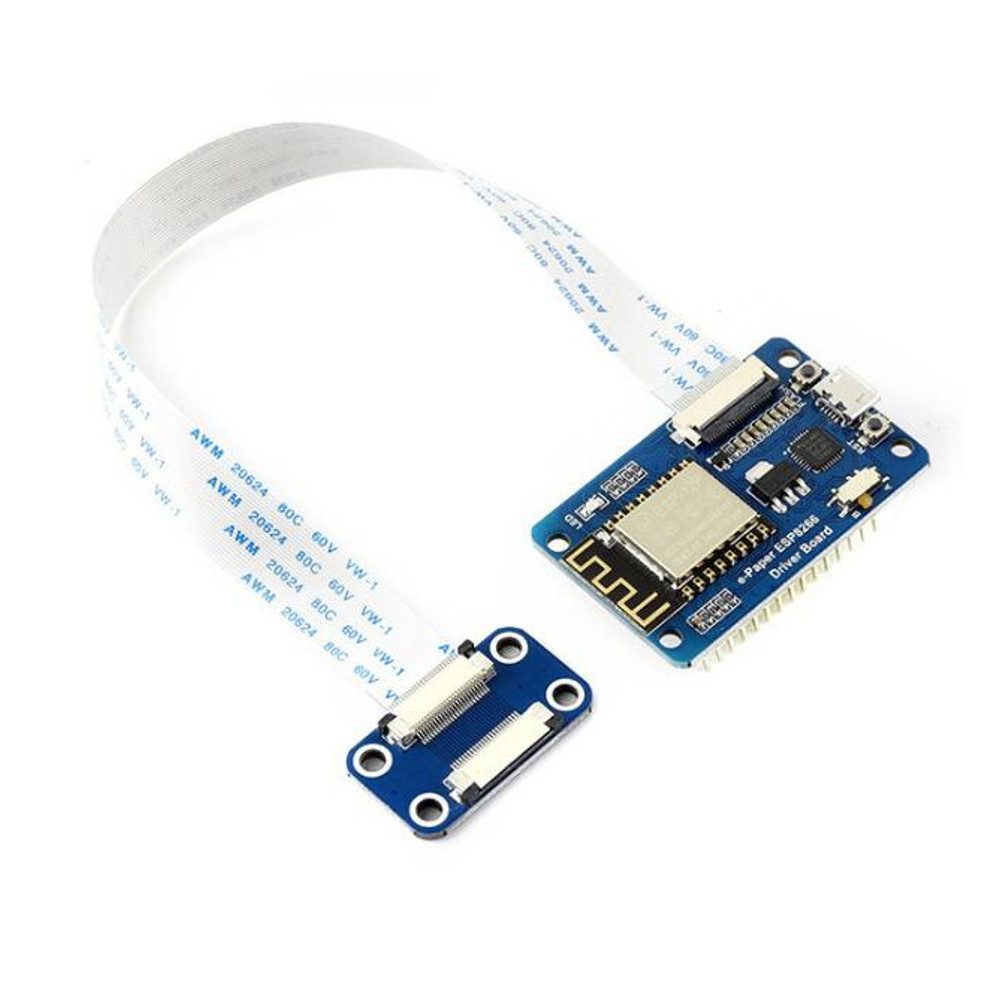

Package includes:

1 x e-Paper ESP8266 Driver Board
1 x e-Paper Adapter
1 x 24PIN FFC line
1 x 1.54 Inch Bare Screen











OR

Additional Information

SKU GI/BG/1478328
Weight 0.0230
Last Update 20-August-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
