Waveshare e-Ink Display Screen Driver Board SPI Interface Compatible with 3rd Generation B/Zero/Zero For Arduino

Availability: In stock

Regular Price: SGD44.00

Special Price SGD24.00

You Save: SGD20.00 (45%)

Quick Overview

Note: This product does not contain any electronic ink screen module.

Features:

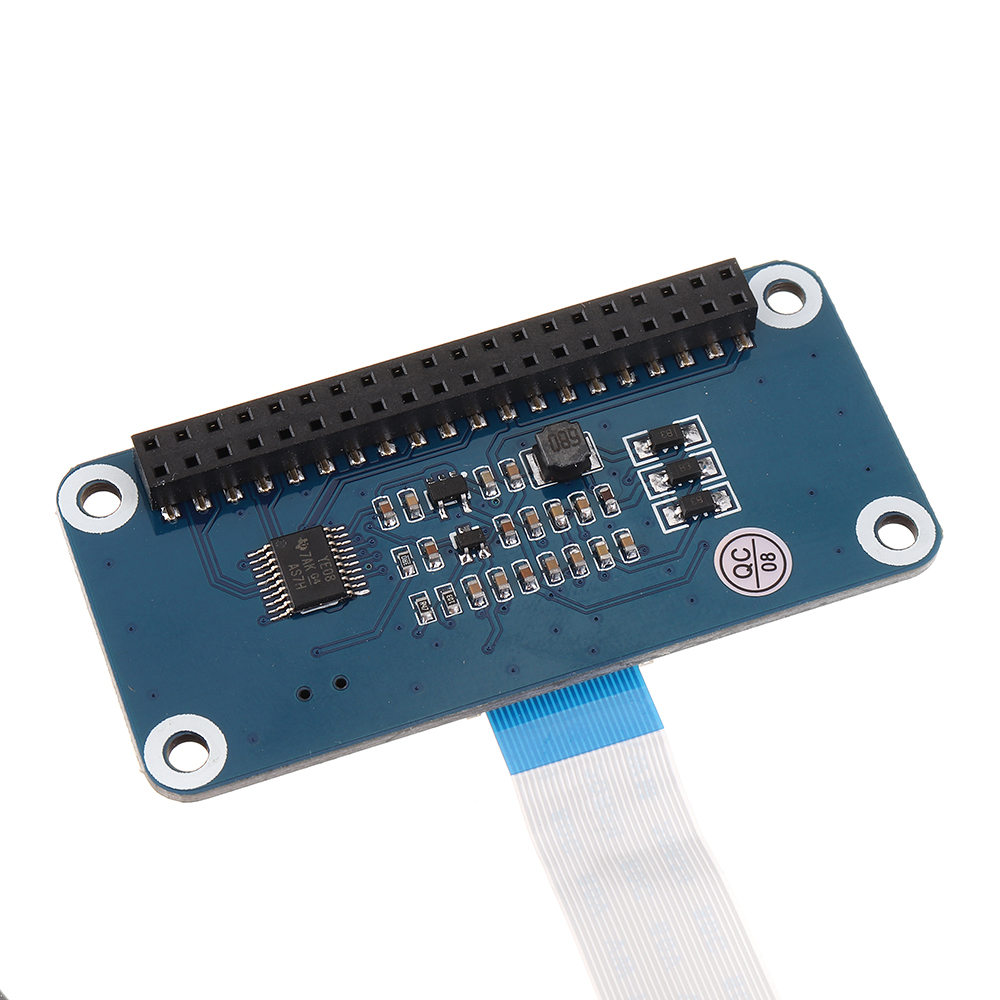

Based on standard interface design, compatible and directly insertable Raspberry Pi 2 generation B/3 generation B/Zero/Zero W
Introduce SPI control interface, can access Raspberry/Arduino/Nucleo and other main control boards
Provide a complete supporting information manual (sample programs such as Raspberry/Arduino/STM32)

Parameter:

Working voltage: 3.3V
Communication interface: 3-wire SPI, 4-wire SPI

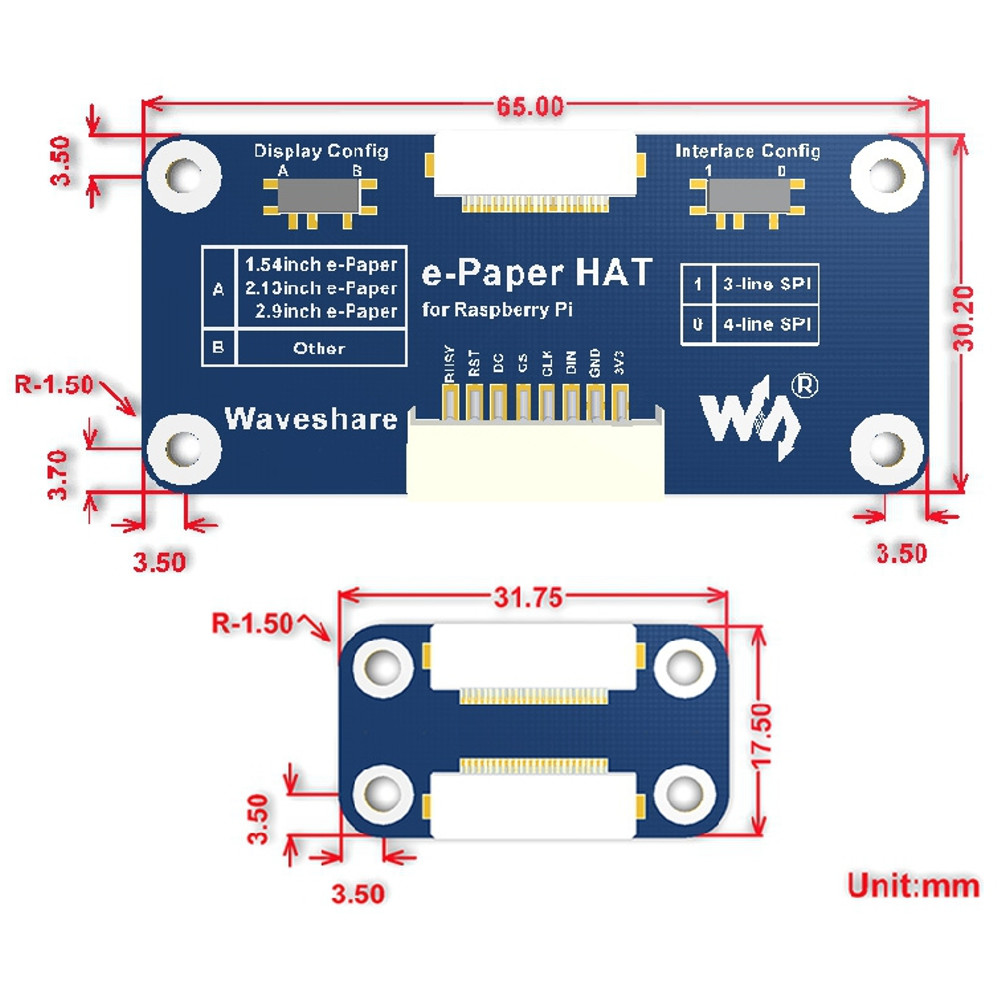

Dimensions: 65mm × 30.2mm
Fixed hole diameter: 3.0mm

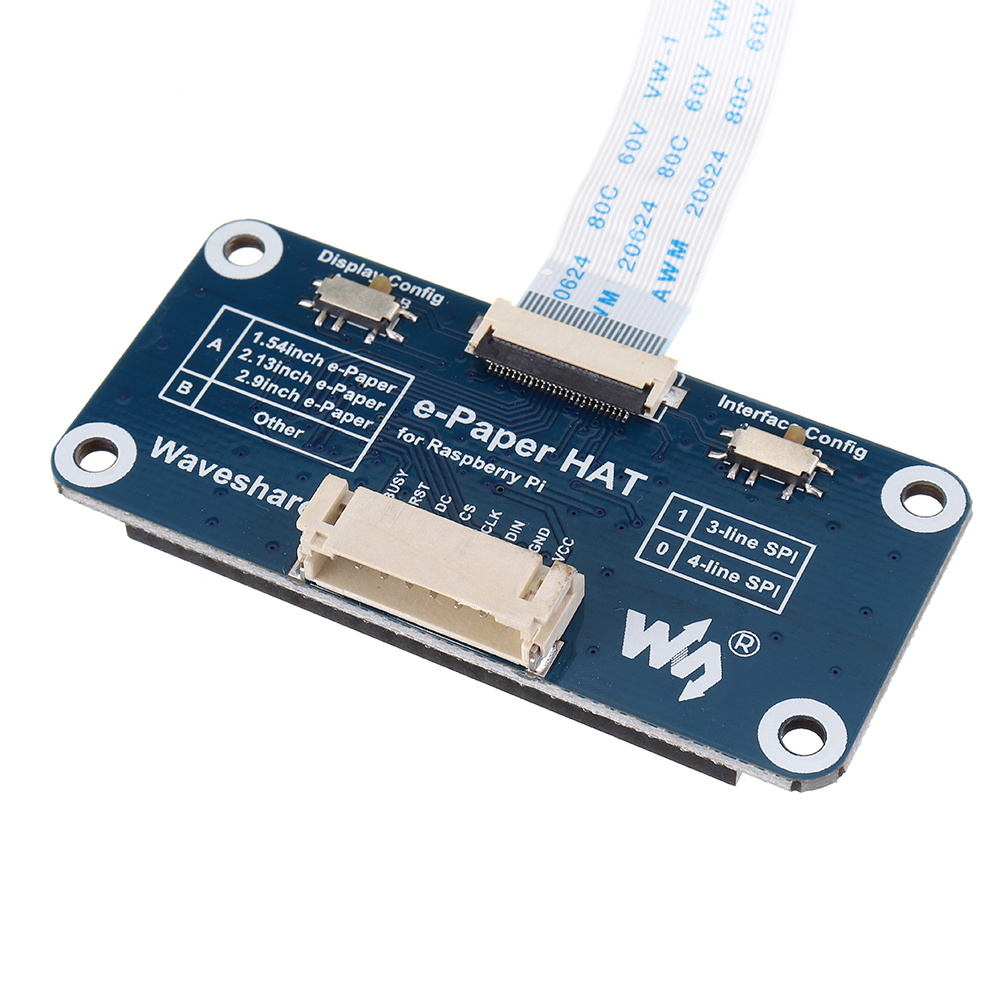

Interface Description:

VCC: 3.3V
GND : GND
DIN: SPI communication MOSI pin
CLK: SPI communication SCK pin
CS : SPI Chip Select Pin (Active Low)
DC: Data/command control pin (high level means data, low level means command)
RST : External reset pin (low reset)
BUSY: Busy status output pin (low level means busy)

Information includes:

User manual
Schematic
Sample program
Development materials

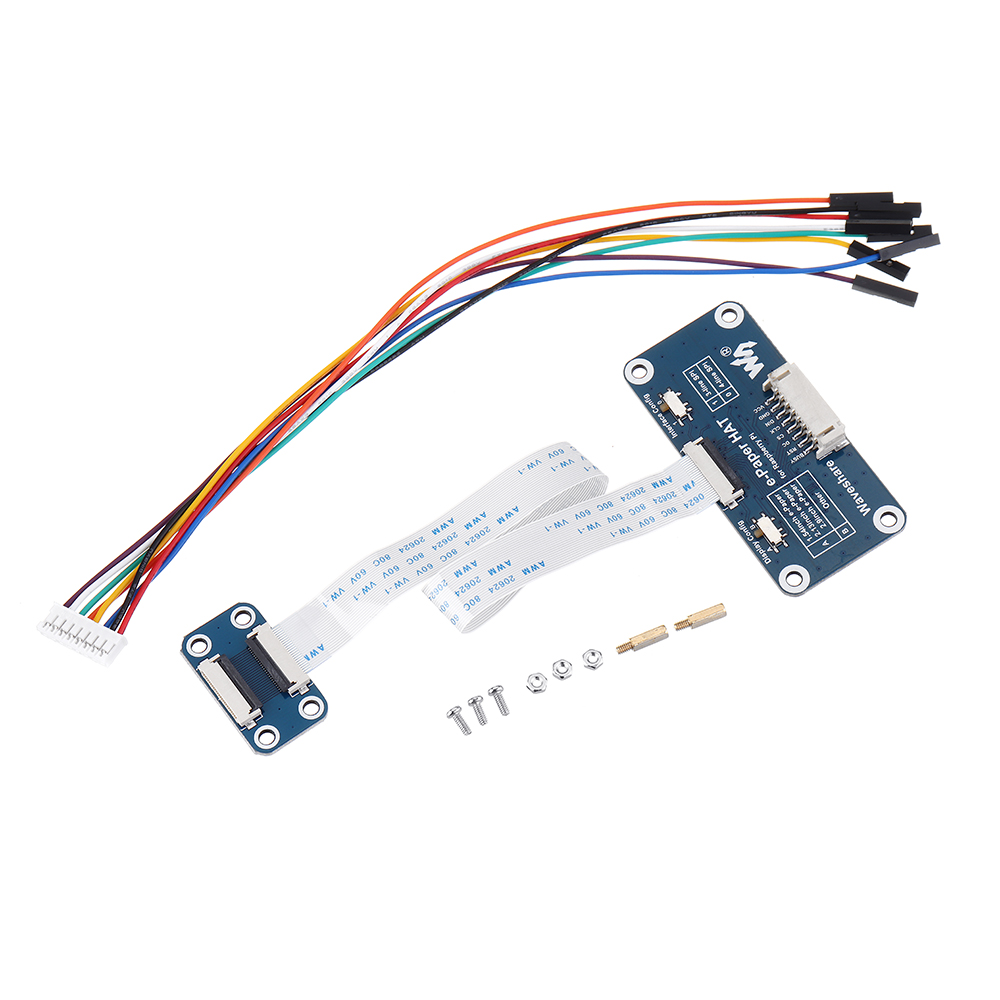

Package includes:

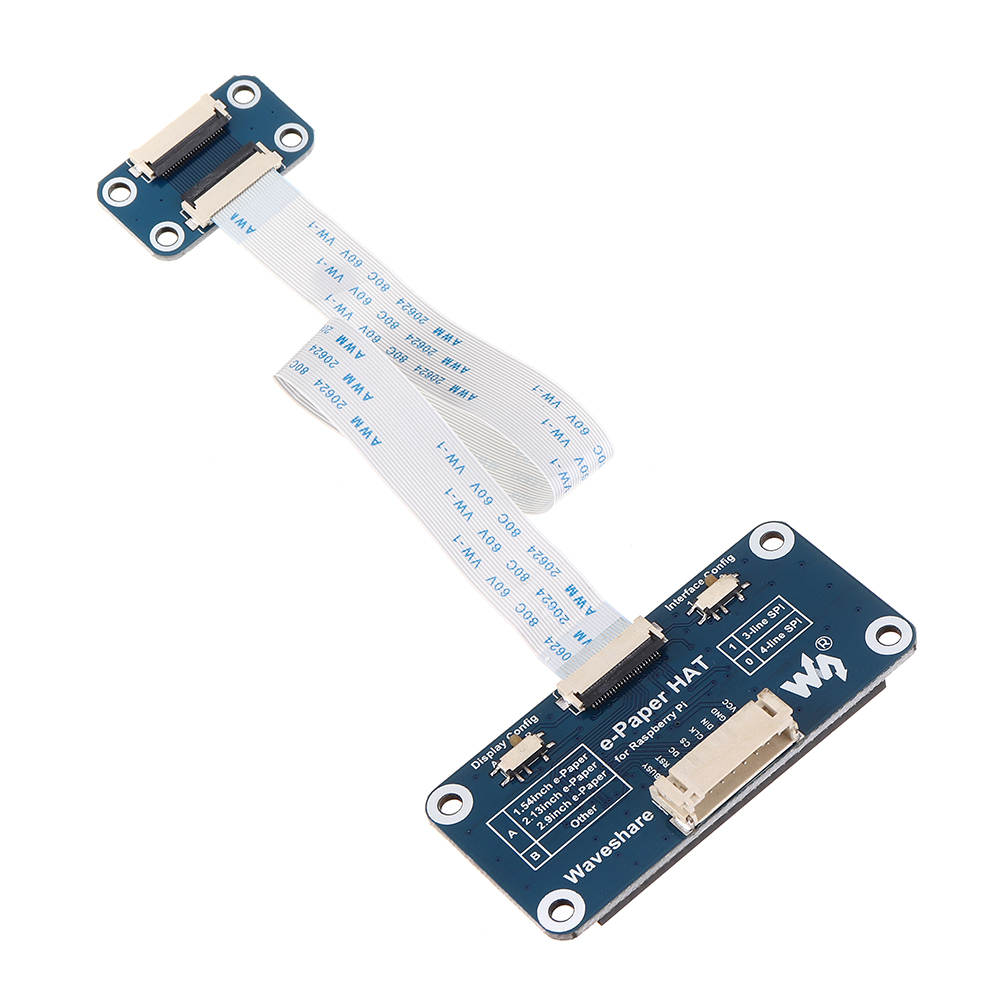

1 x e-Paper Driver HAT
1 x RPi copper column package (2PCS set)
1 x PH2.0 8PIN cable 20cm

















OR

Additional Information

SKU GI/BG/1478336
Weight 0.0270
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
