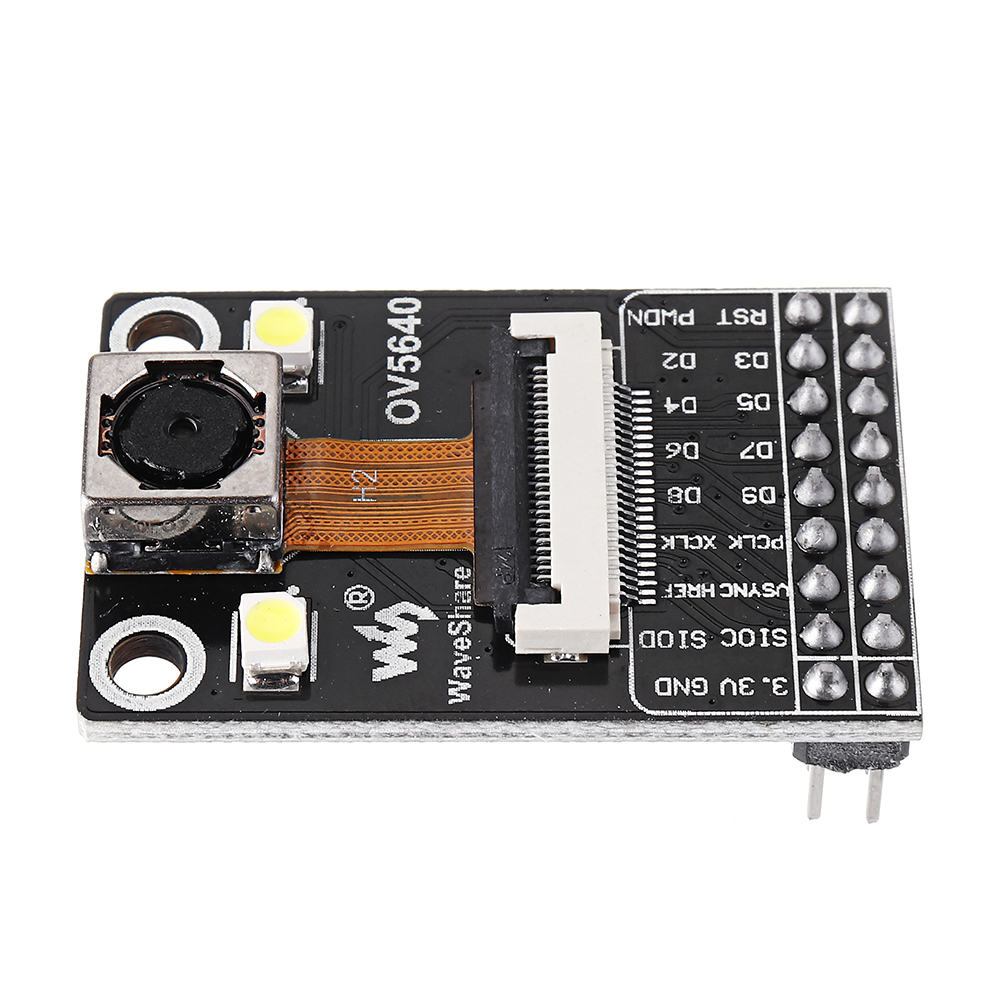

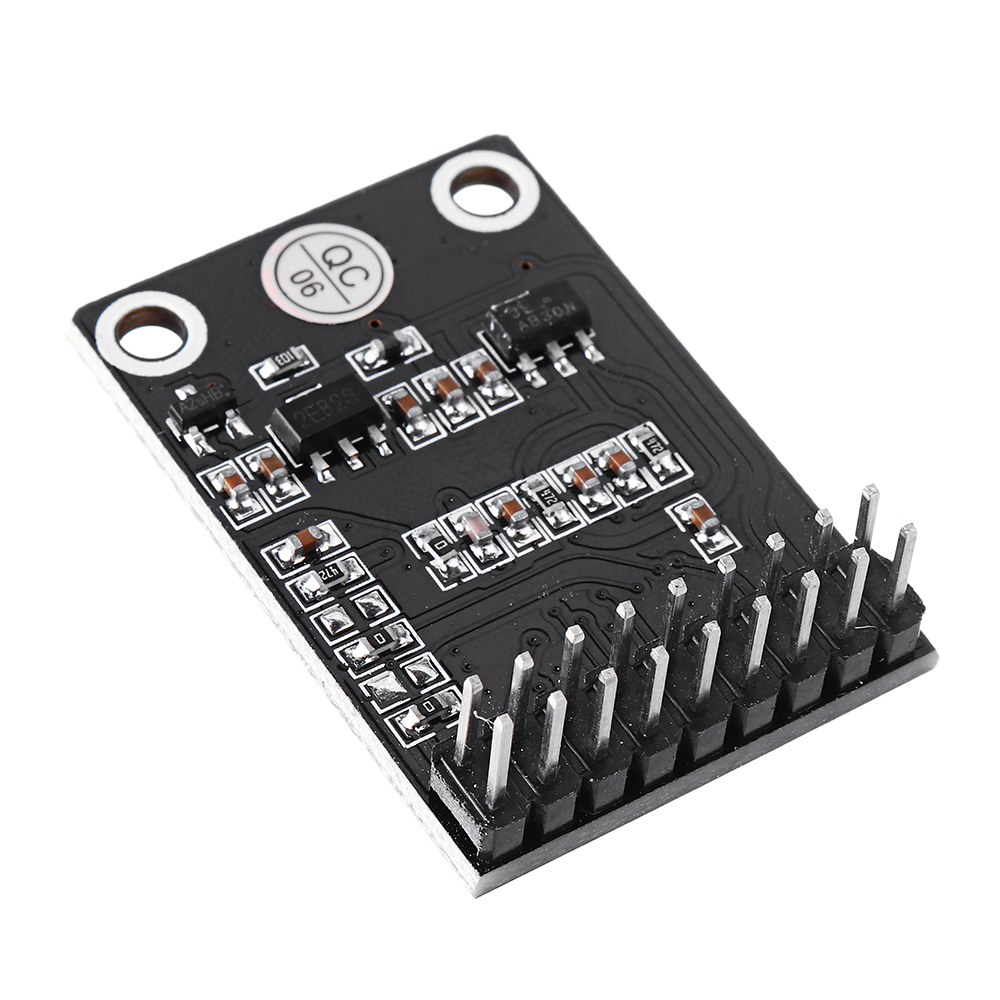

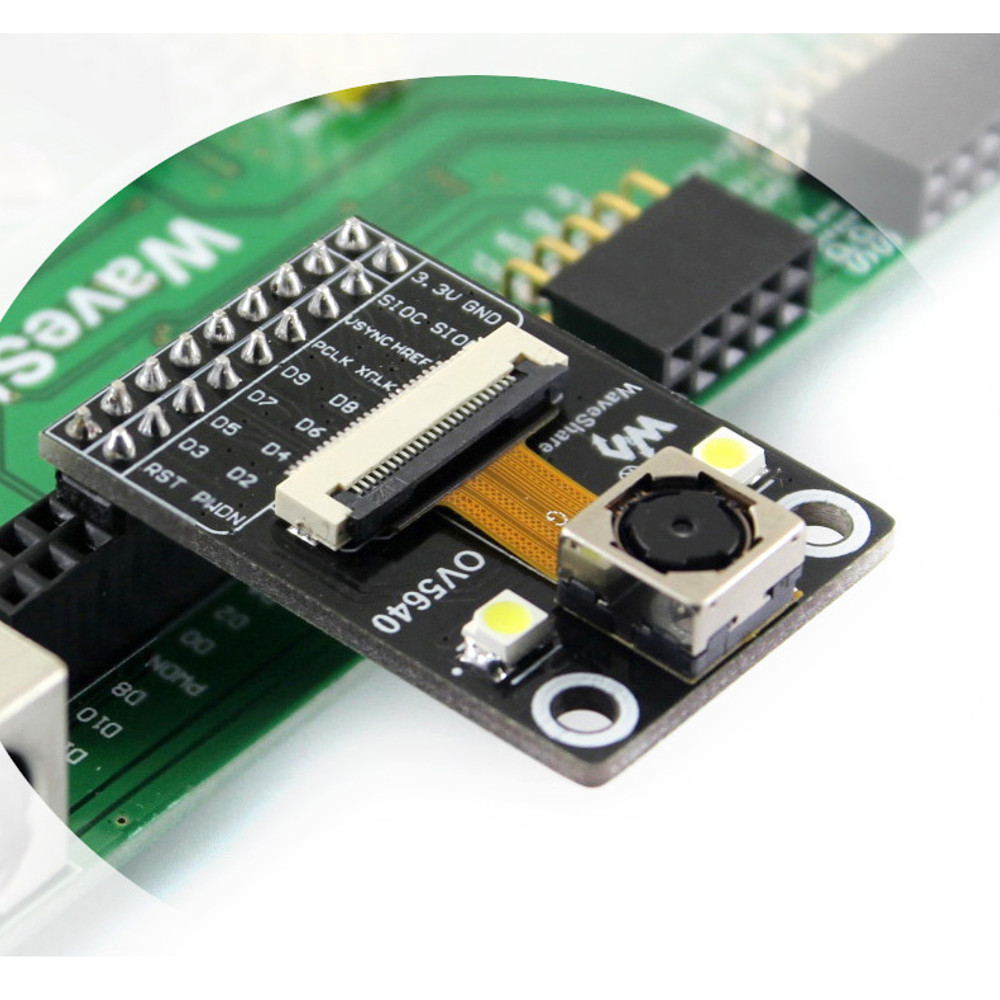

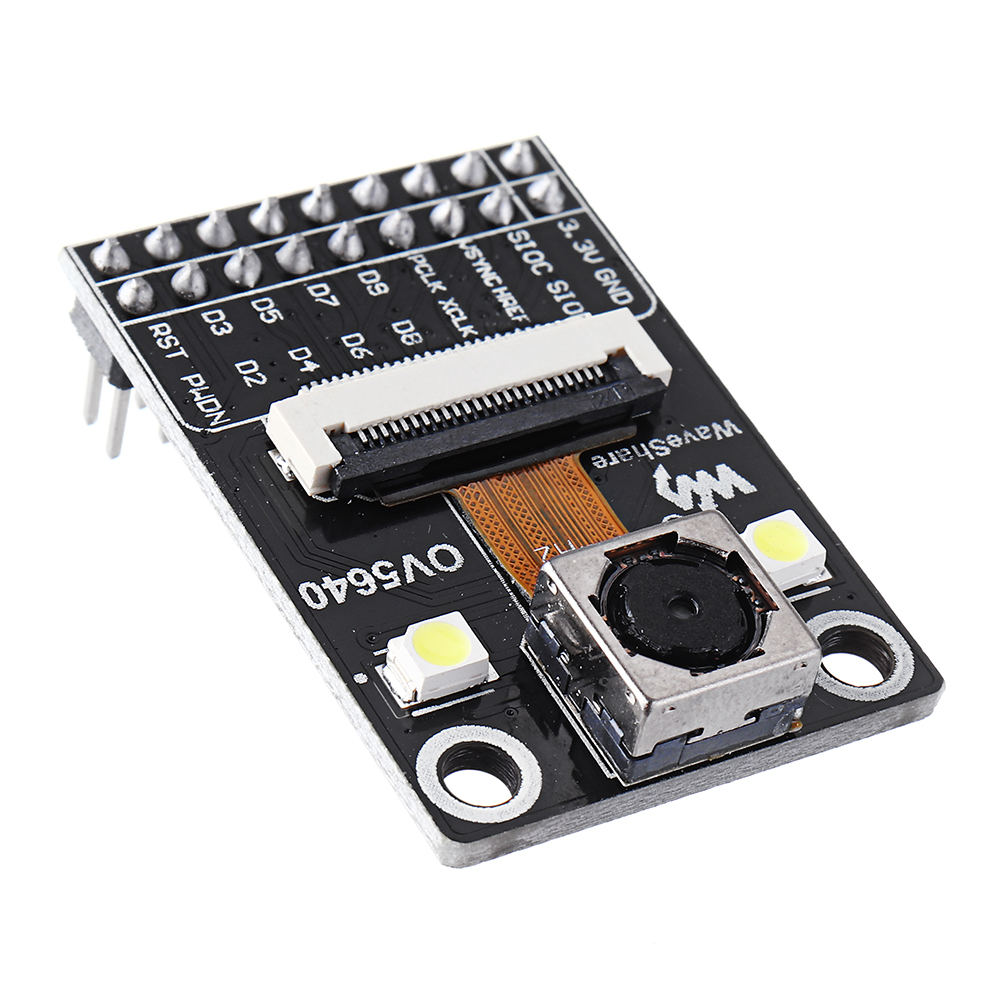

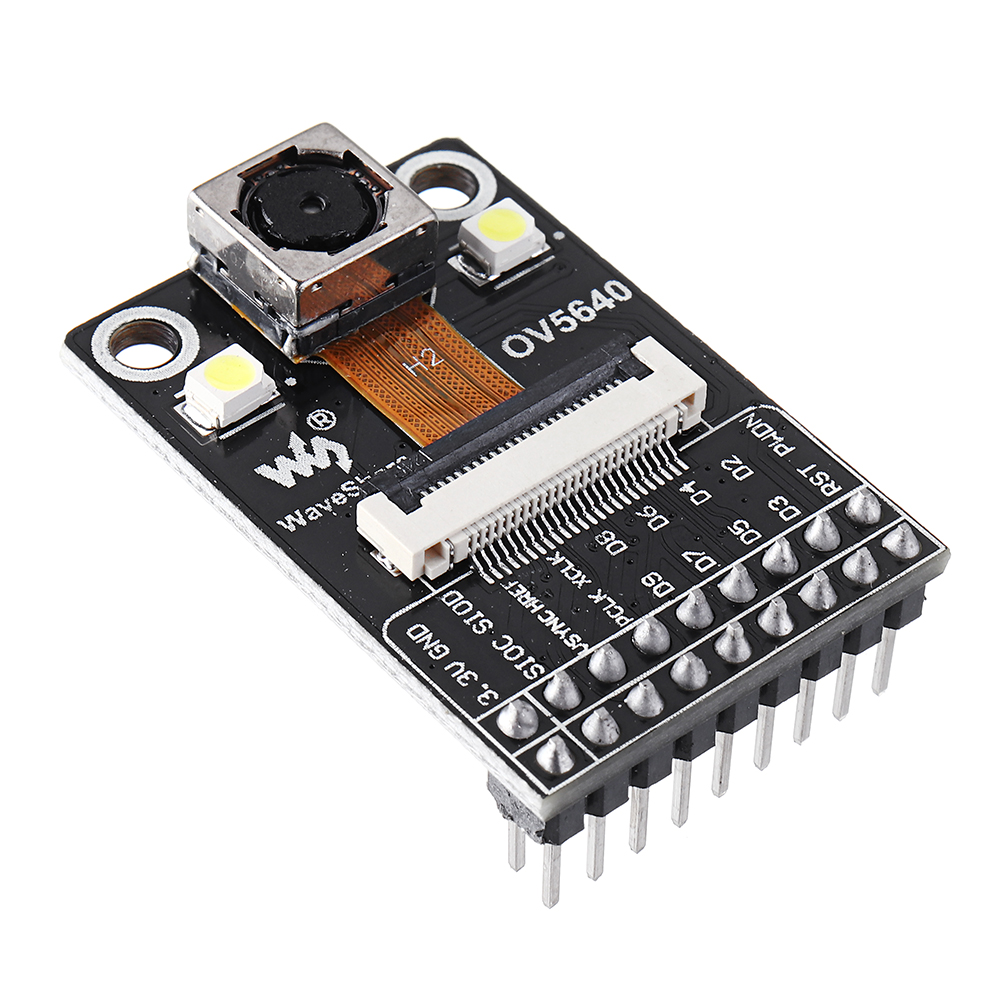

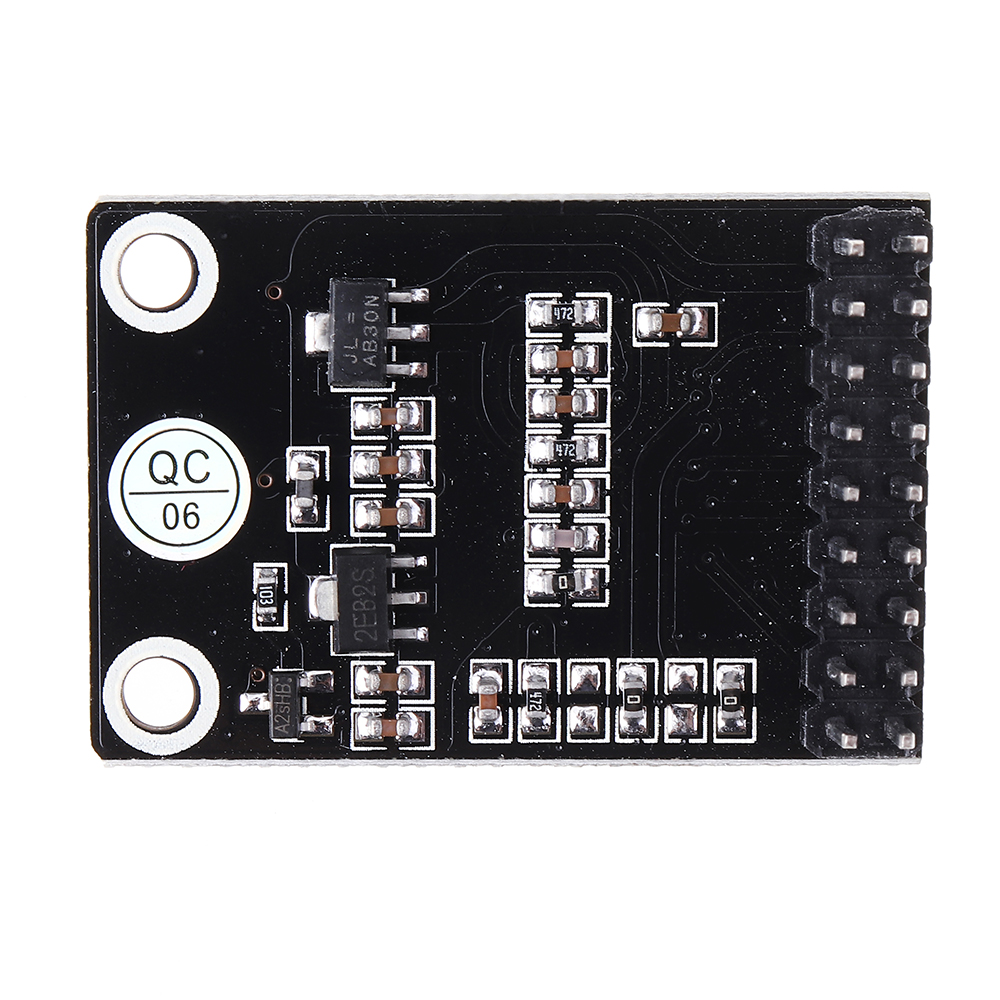

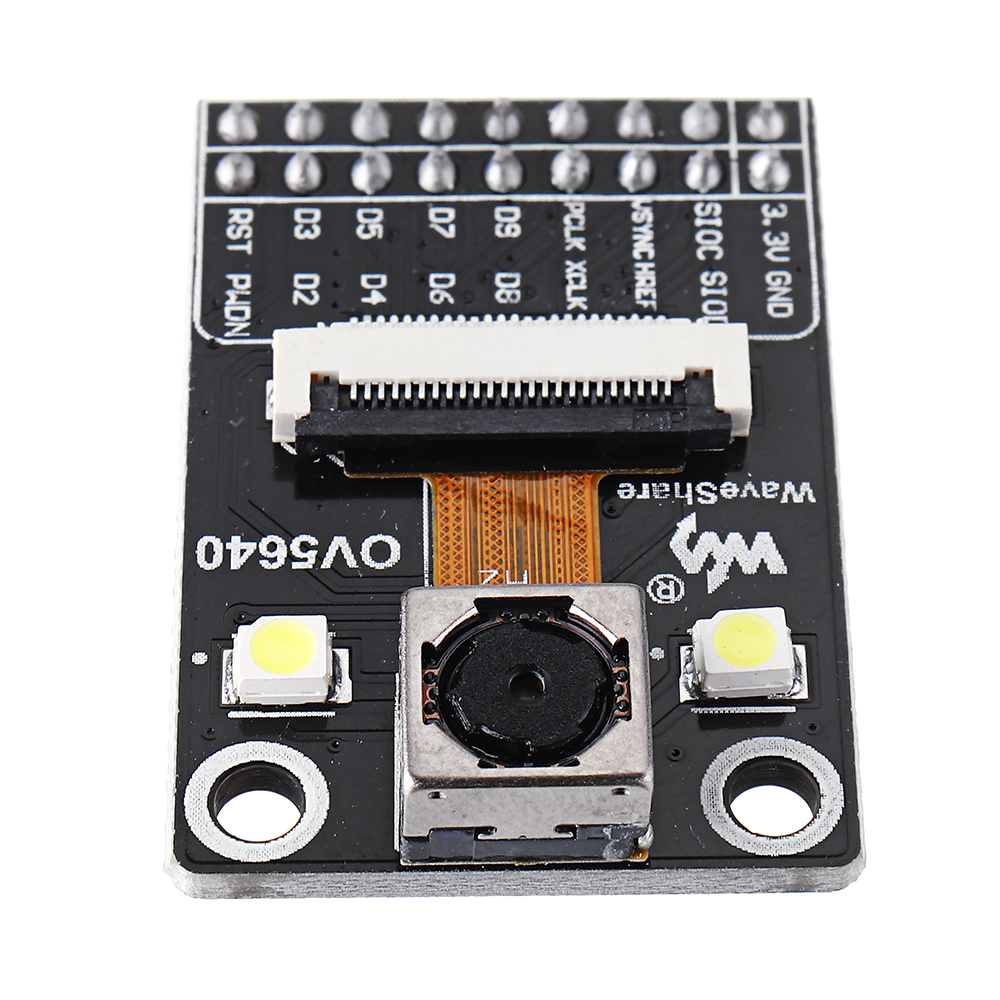

Waveshare OV5640 Camera Module 5 Million 2592x1944 Development Board STM32 Camera Auto Focus Flash

Availability: In stock

Regular Price: SGD103.00

Special Price SGD57.00

You Save: SGD46.00 (45%)

Quick Overview

Introduction:

Based on the OV5640 camera module, 5 million pixels, image resolution up to 2592x1944.
With auto focus support, you can automatically adjust the focus according to the distance of the object.
Support flash function, no longer worry about the light is too dark, can not shoot the picture.

Parameter:

Image: 5 million
Resolution: 2592x1944
Photosensitive chip: OV5640
High sensitivity, low crosstalk, low noise with 1.4um x 1.4um pixel OmniBSI technology
Supports automatic exposure, auto white balance, automatic elimination of light streaks, automatic black level calibration, and automatic bandpass filters
Support color saturation adjustment, tone adjustment, gamma correction, sharpness and lens calibration
Support for image scaling, panning, and window settings
Support auto focus
Flash support

Camera:

CCD size: 1/4 inch
Aperture (F): 2.8
Focal Length: 3.37mm (adjustable)
Diagonal angle: 67.4 degrees
Output format:
YUV(422/420)/YCbCr422
RGB565/555/444
CCIR656
RAW RGB
Compressed Data
Working voltage: 3.3V
Control interface: SCCB (compatible with I2C)
Data interface: DVP 8 bit

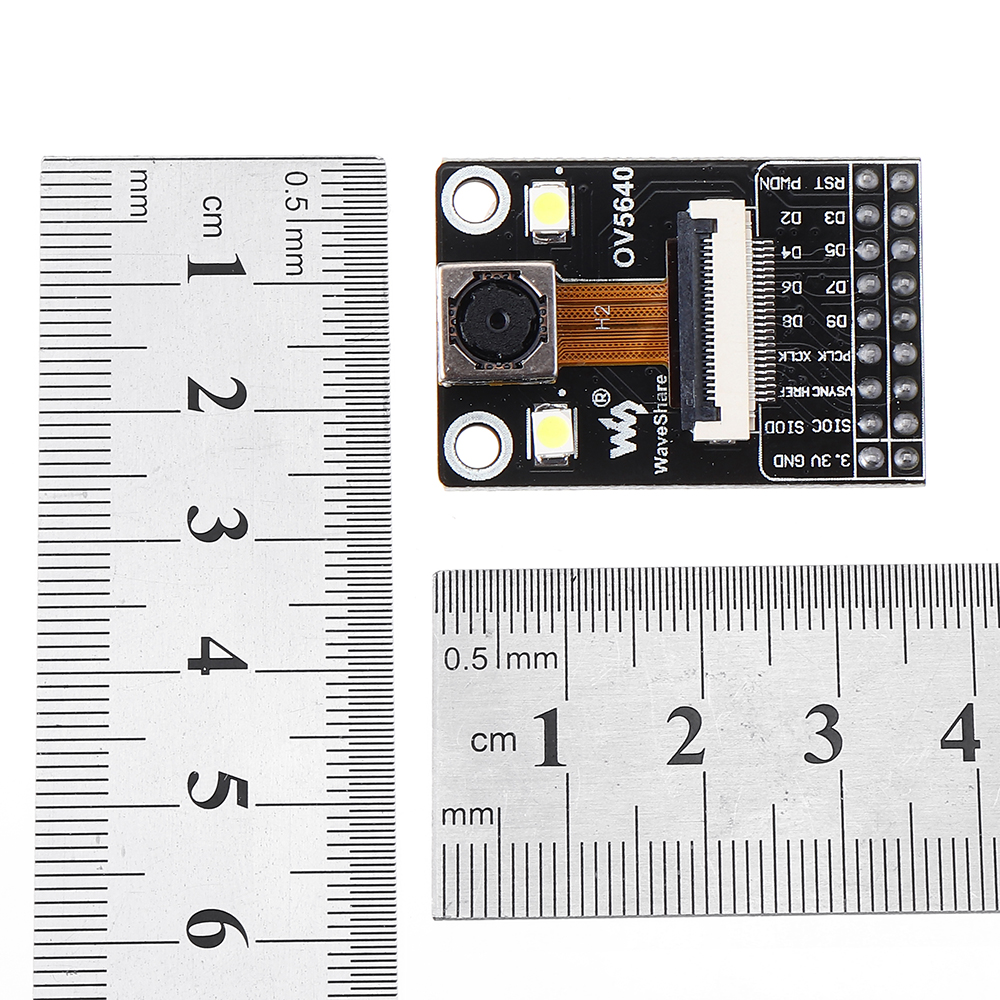

Size: 35.70mm × 23.90mm

Information includes:

Circuit schematic
Sample programs (STM32F4 and STM32F7)
User manual

Package includes:

1 x OV5640 Camera Board (C)
















OR

Additional Information

SKU GI/BG/1478356
Weight 0.0060
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
