Geekcreit ESP8266 Development Board WIFI Relay Module 220V 10A Relay

Availability: In stock

Regular Price: SGD18.00

Special Price SGD10.00

You Save: SGD8.00 (44%)

Quick Overview

Feature:

1. Adopt the WIFI module of ESP8266 of Anxin Technology and the four-layer board design of WIFI module.
2. Wide voltage input, input voltage: DC 7V - DC 30V.
3. Input overvoltage protection, input with TVS, voltage over 33V, automatic protection.
4. Enter overcurrent protection.
5. 220V 10A relay, one normally open, one normally closed, The relay parameters are as follows:


6. One optocoupler isolated input, input with TVS protection.
7. High current terminal, terminal parameters are as follows:
- Material and plating:
  Screw: M2.5, steel, galvanized
  Reed: Phosphor bronze, nickel plated
  Contact material: brass, nickel plated
  Plastic parts: PA66, UL94V-0
- Mechanical behavior:
  Temperature range: -40° to 105° C
  Instantaneous temperature: +250° C 5 seconds
- Electrical performance:
  Rated voltage: 300V
  Rated current: 10A
  Contact resistance: 20mΩ
  Insulation resistance: 5000mΩ1000V
  Withstand voltage: AC2000V1Min
  Use wire diameter: 24-12AWG 2.5mm
  Torque distance: 0. 4Nm (3.6Ib. in)
  Stripping degree: 6-7mm
8. An output status indicator, an input status indicator.
9. Relay PCB foot anti-climbing design, more secure.

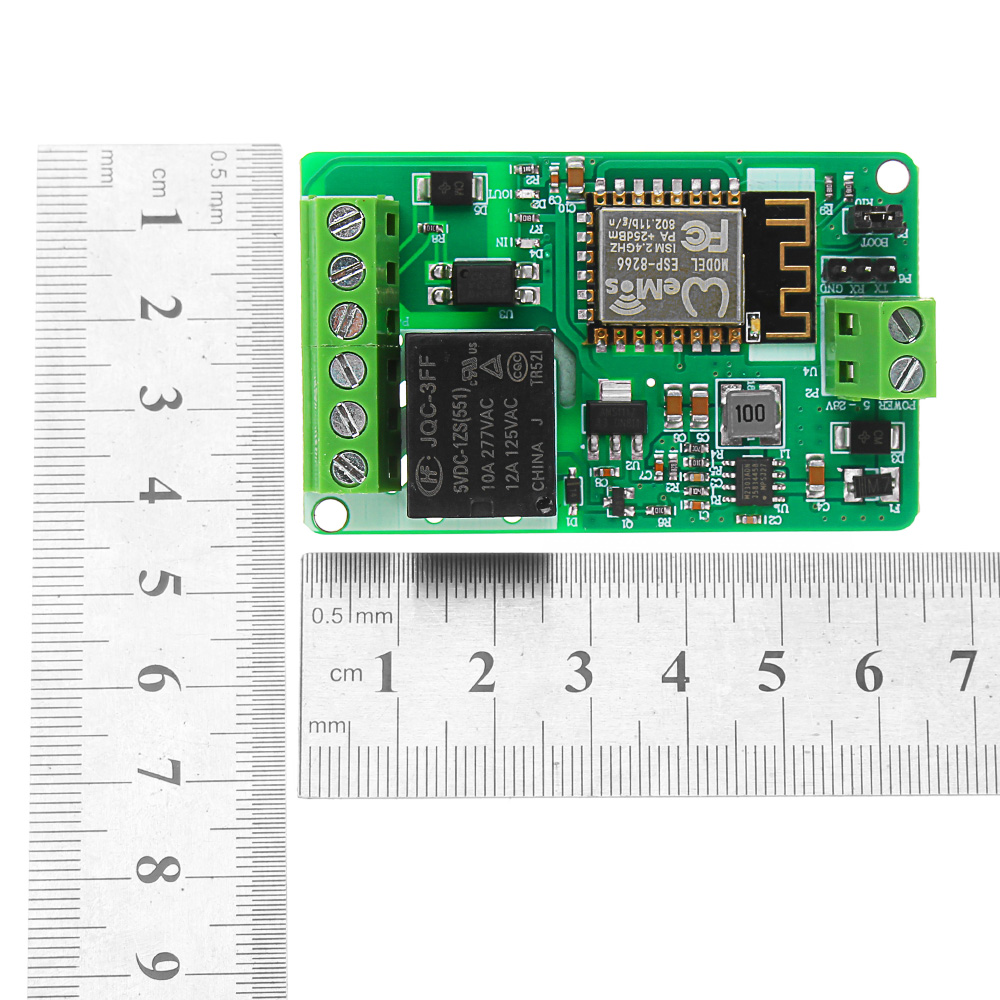

10. Board dimensions, 65mm × 40mm × 20mm.

Package includes:

1 x WiFi Relay Module















OR

Additional Information

SKU GI/BG/1436275
Weight 0.0280
